SF-C safety control unit

Specifications for the safety control units for safety light curtains.

Specifications for the safety control units

The safety control units allow you to connect and control various safety components for machines. The SF-C10 series is specially designed for connection and control of Panasonic light curtains, while the safety control unit SF-C21 can be used for all kind of safety devices like safety switches, emergency switches, enable grip switches, safety beam sensors, safety scanners, or safety light curtains.

Specifications for the safety control unit SF-C10 series for safety light curtains

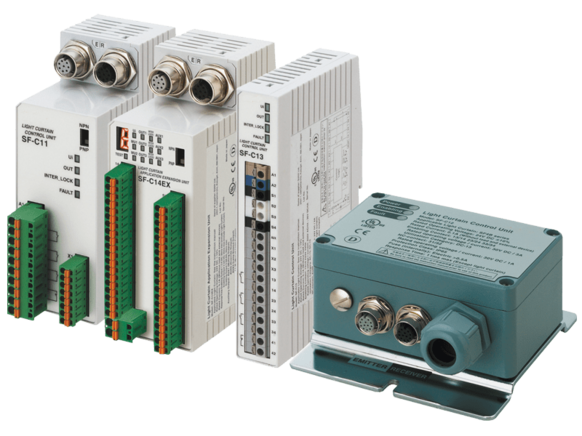

Safety control unit SF-C10 series for safety light curtains Panasonic Industry
Product No. Type of control unit Cables Description
SF-C11 Connector type

• Connection cable: SFB-CB (for SF4B series), SF2B-CB (for SF2B series)

• Extension cable: SFB-CCJ10

8-core cable with connector to connect to the light curtain. Interference prevention wires and the muting function cannot be used.

SF-C12

Robust type

• SFB-CB05-MU

• Extension cable: SFB-CCJ10-MU

12-core cable with connector to connect to the light curtain. Interference prevention wires can be used. The muting function cannot be used.

SF-C13

Slim type

• SFB-CCB (-MU) (for SF4B series), SF2B-CCB (for SF2B series)

• Extension cable: SFB-CC (-MU)

Use a discrete wire cable to connect the light curtain. Interference prevention wires and muting function can be used. However, the controller SF-C13 itself does not support the muting function.

SF-C14EX

Application expansion unit for the SF4B series

• Light curtain connection cable: SFB-CB-EX

• Extension cable: SFB-CCJ10

Equipped with muting function and emergency stop input, thus expanding the applications of the light curtains. Use the exclusive connection cable  to connect the unit to the light curtains. (compatible with SF-C14EX handy controller)

SF-C14EX-01



Specifications for the safety control unit SF-C21

Safety control unit SF-C21 Panasonic Industry

The safety control unit SF-C21 can do the work of four safety relay units. Therefore, much less wiring is required. With its compact size (height 97 mm x width 45 mm), it can be installed even in narrow spaces. The status of the safety control unit can be monitored easily with a PLC. The SF-C21 provides four auxiliary semiconductor outputs (PNP). Other automation control devices such as PLCs, HMIs, etc. can monitor of the SF-C21 via RS485 communications (MODBUS RTU) and get information about the status, the selected logic, and possible errors. However, the SF-C21 cannot be controlled by an external device such as a PLC.

Users do not need any programming skills because the safety control unit SF-C21 is equipped with a preset logic. Simply turn the rotary switch to select one of the eight preset logics. They are safety-certified and compatible up to control category 4 PLe.

For users wanting to create a reliable safety circuit, we recommend using our software Configurator SF-C. Again, you do not need any programming skills.

Product No. Number of inputs Number of outputs
  Safety input Reset / EDM input Control output Auxiliary output
SF-C21 2×4 2 2×2 4

Applications

Safety control unit SF-C applications Panasonic Industry
  • Semiconductor production
  • Machines with robots and safety fences
  • Food packaging
