One of the smallest IP67 micro switch solutions in the market realized by changing from SPDT to SPST-NO or SPST-NC.
Flexible line-up to support most customer requirements.
ASQM switch for rough conditions and limited space
The ASQM is based on the 100 millionfold tried-and-tested turquoise stroke switch ASQ.
With its sliding contact and the compact structure, the ASQM (which conforms to IP67) is the optimal solution for detection tasks in environments where space is limited and conditions are rough. Typically, the ASQM can be used for: Door locking systems for the automotive sector, air conditioning in private households, coffee machines, and many more.
Key features
High contact reliability thanks to double clipping contact
Long overtravel
Silent operation
Excellent shock and vibration resistance
Insertion lever with high reset force
Contact force is independent from travel
Waterproof – IP67 degree of protection

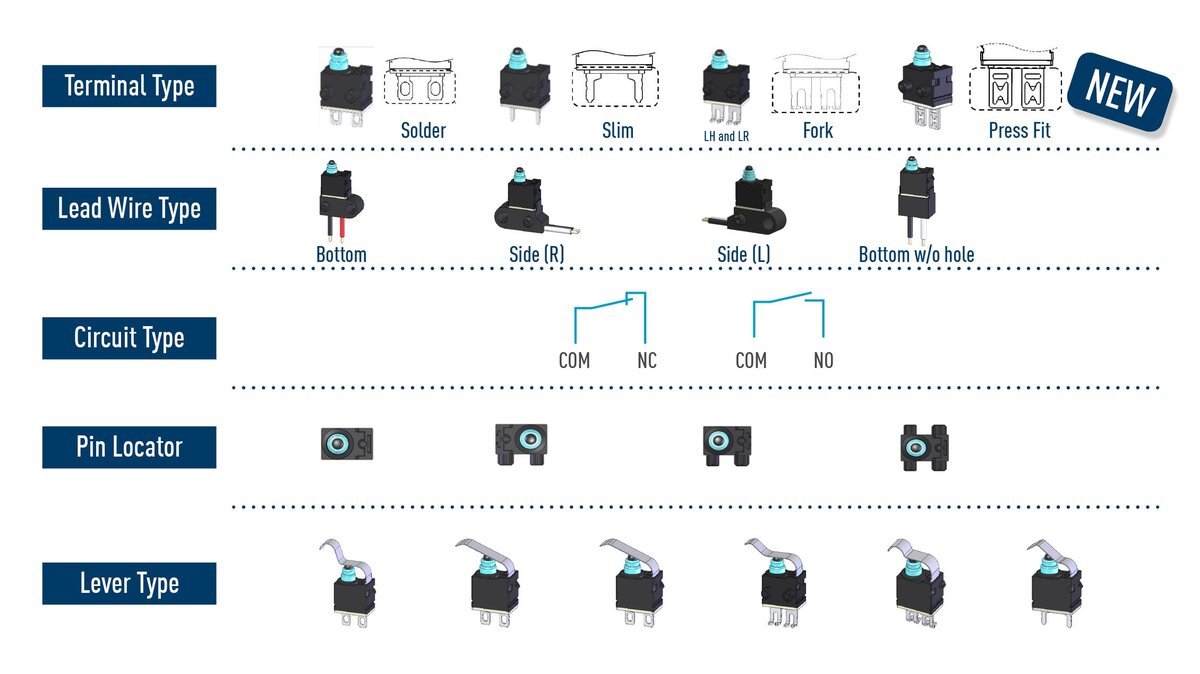

ASQM variations
Item
Value
Series name
ASQM
Operation voltage range
5V to 16V
Operation current range
1mA to 50mA
Cycle rate
300k
Degree of protection
IP67
Automotive grade
-40°C to +85°C
For the lever type, custom-made levers are possible.
Solderless assembly
The solderless press-fit solution has a lot of advantages:
no failures because of heat stress
no cold solder joints or soldering bridges
no further process steps or cleaning of flux residues required
The press-fit version differs only in the terminal shape, the inner and outer structure remains unmodified.

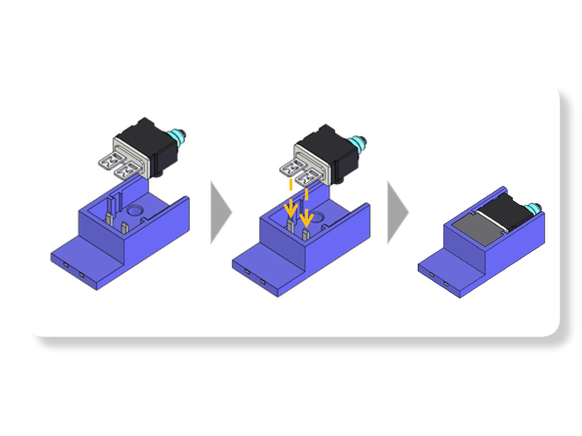

ASQM possible use case
Press insertion switch terminals to module terminals (bus bar).
Fix and seal the terminals by potting.
ASQM benefit for customer

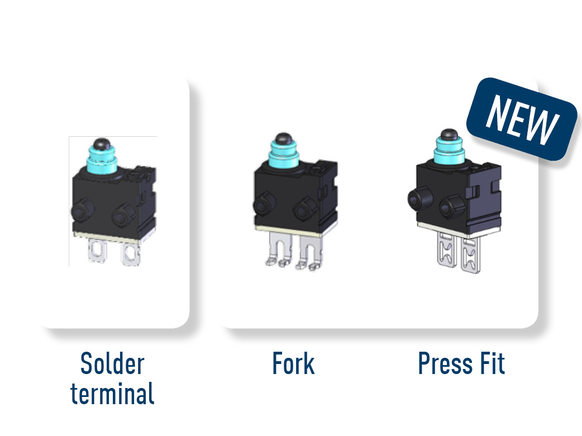

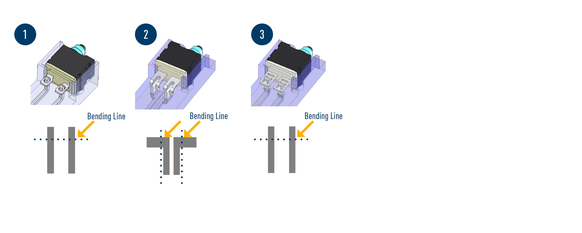

Standard solder terminal
Fork-type terminal: compared to soldering terminal, it is necessary to bend the terminals by 90°, which means an additional production step and needs more metal
Press-fit terminal: Only a small change for the solder terminal is necessary, compared to fork shape it is simplified and less material is needed
Improvement of installation and reduction of cost thanks to solderless connection.
Please contact us to discuss the right combination of materials, design, and tolerances.
