PAN9019(A)

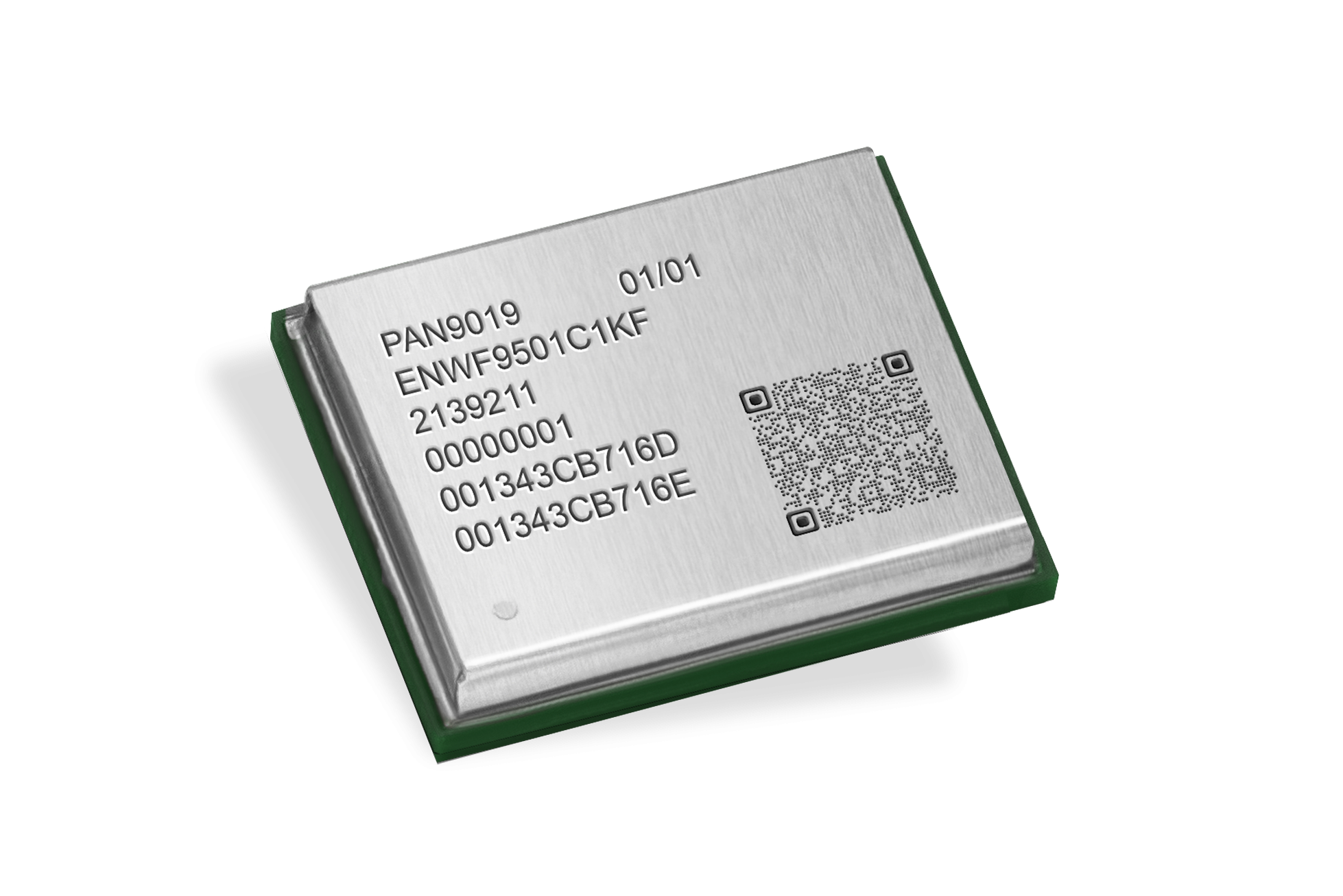

The PAN9019 is a dual band 2.4 GHz / 5 GHz 802.11 a/b/g/n/ac/ax Wi-Fi radio module with integrated Bluetooth BDR/EDR/Low Energy (LE) and optionally 802.15.4 radio, specifically designed for highly integrated and cost-effective applications.
The simultaneous and independent operation of the three standards enables very high data rates (802.11ax) and low-power operation (Bluetooth Low Energy and 802.15.4).
Integrated power management, a fast dual-core CPU, 802.11i/w security standard support, and high-speed data interfaces deliver the performance for the speed, reliability, and quality requirements of next generation products. Thus, the module reduces design, test, and calibration effort resulting in reduced time-to-market compared to discrete solutions. Integrating Wi-Fi, Bluetooth and 802.15.4 wireless connectivity allows high throughput applications for industrial devices and appliances. The combination of Wi-Fi, Bluetooth and 802.15.4 provides the highest flexibility for connectivity.
![](/storage/website-industry-panasonic/products/devices/wireless-connectivity/wi-fi-modules/pan9019a-iw611-iw612/PAN9019_with_shadow_2.png)
Technical Specification
Item |
Performance characteristics |
Order number | ENWF9501C1KF (Based on IW611) ENWF9511C1KF (Based on IW612) |
Production status | Mass Production |
RF category | 802.11 a/b/g/n/ac/ax, BDR/EDR/Low Energy (LE) optionally 802.15.4 radio |
Software | Yocto Linux, Android |
Used IC | IW611 and IW612 |
Antenna option | Bottom Pad |
Precertified antenna types | Chip, terminal hinge, (Flex) PCB |
Interfaces | SDIO 3.0, HS UART, SPI, I²S/PCM |
Certification | CE RED / FCC / ISED / MIC / RCM |
Operating temperature | -40 to +85 °C |
Size | 15.3 x 12.0 x 2.5 [mm] |
Standard packaging QTY | 500 pcs |
Evaluation Tools

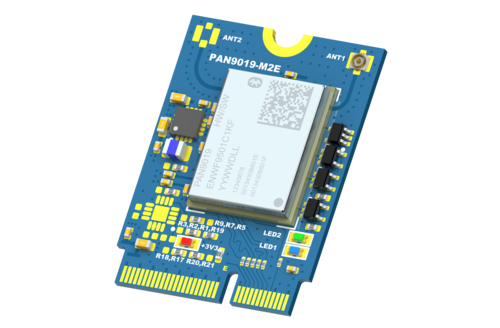

M.2 Device
- M.2 Key E form factor
- External antenna MHF® 4 connector
- Highspeed-UART for Bluetooth
- SDIO 3.0 for Wi-Fi
- SPI for 802.15.4 (only PAN9019A)
- Coexistence interface
- PCM interface for voice applications

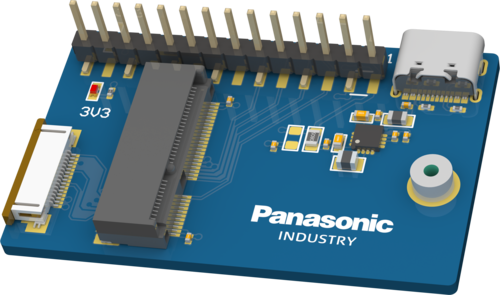

M.2 to mSD Adapter
- Separate power supply over USB-C
- Access to specific M.2 interface signals
- Current consumption measurement interface
- Flexible due to mSD flex cable
P/N | Package includes | Stock Search |
---|---|---|
ENWF9501CMKF | Wi-Fi 6 Dual Band 2.4 GHz/5 GHz and Bluetooth® M.2 Key E Card (based on the module ENWF9501C1KF) | BUY |
ENWF9511CMKF | Wi-Fi 6 Dual Band 2.4 GHz/5 GHz, Bluetooth® and 802.15.4 M.2 Key E Card (based on the module ENWF9511C1KF) | BUY |
ENWF9000CMKF | M.2 to mSD Adapter with mSD flex cable | BUY |
![](/website-industry-panasonic/products/devices/wireless-connectivity/wi-fi-modules/pan9019a-iw611-iw612/875631/image-thumb__875631__industry-gallery-small/PAN9019_M2E_HQ_transparent.png)
![](/website-industry-panasonic/products/devices/wireless-connectivity/wi-fi-modules/pan9019a-iw611-iw612/875629/image-thumb__875629__industry-gallery-small/M2tomSD.png)
PAN9019 documentation
![](/website-industry-panasonic/products/devices/wireless-connectivity/bluetooth-low-energy-modules/pan1781-nrf52820/872546/image-thumb__872546__industry-text-media/Man_notebook.png)
Get all the technical information on the PAN9019(A) M2E EVD here!
Contents of the Wireless Connectivity Development Hub:
- User Guide for the PAN9019(A) M2E EVD
- Instructions on using NXP i.MX evaluation boards as host platform
- Downloadable schematics of the M2E EVD as reference design
- Downloadable regulatory power file "rgpower_WW.bin" for evaluation purposes
Click here:
PAN9019 - Wireless Connectivity Development Hub
Regulatory certifcations
![](/website-industry-panasonic/products/devices/wireless-connectivity/wi-fi-modules/875592/image-thumb__875592__industry-text-media/flags.png)
The PAN9019(A) is certified for
- Europe: CE RED
- USA: FCC
- Canada: ISED
- Japan: MIC
- New Zealand/Australia: RCM
To comply with regional regulatory requirements a country specific binary file needs to be applied. The binary file is responsible for e.g. setting available Wi-Fi channels or output power. For further information, please reach out to us direclty.

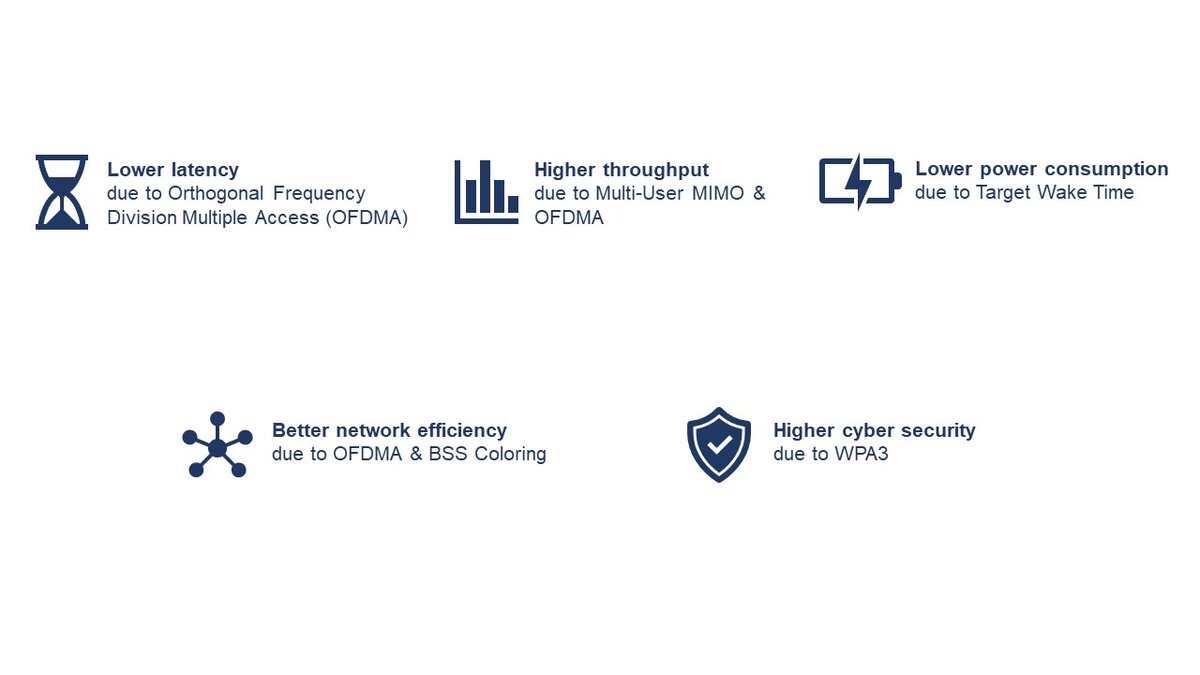

Why should you choose Wi-Fi 6?
![](/website-industry-panasonic/products/devices/wireless-connectivity/wi-fi-modules/pan9019a-iw611-iw612/873279/image-thumb__873279__industry-gallery-wide/WiFi6_2.jpg)
Part of NXP Product Longevity Program
![](/website-industry-panasonic/products/devices/wireless-connectivity/wi-fi-modules/pan9028-88w8987/873360/image-thumb__873360__industry-text-media/NXP_Longevity_wo_background_2.png)
Products | IW611 & IW612 |
Launch Date | Feb 2023 |
Remains in Longevity Program until | Feb 2038 |
Official Website Link to Longevity Program | Product Longevity | NXP Semiconductors |
Datasheet
Name | File type | Size | Date | Language |
---|---|---|---|---|
WM PAN9019 Product Specification | Data sheet | 4 MB | 16.08.2024 | English |
WM PAN9019A Product Specification | Data sheet | 4 MB | 16.08.2024 | English |
Guides
Name | File type | Size | Date | Language |
---|---|---|---|---|
WM PAN9019 and PAN9019A Module Integration Guide | Data sheet | 5 MB | 29.05.2024 | English |
