CF1 / CF2 board-to-FPC connectors

Direct connection without relay wire harnessing set.
Download CF1 flyer
CF1 / CF2 connectors

Specifications

Type No. of pins Rated current Rated voltage Heat resistance Datasheet CAD data
CF1 4, 6, 10 2.0A per pin contact 50V DC 125°C Download Download
CF2 20 1.0A per pin contact 50V DC 125°C Download Download



Please contact us for other pin configurations and samples.

Direct connection without relay wire harnessing set

There is no smarter and robust way to connect a PCB with a FPC (Fexible Printed Circuit): only two parts, a plug and a receptacle, are sufficient for a reliable, vibration resistant high power connection. This simplifies engineering and assembling with surface mounted technology (SMT). Additionally, the flat construction allows new designs especially in lighting solutions as well for battery pack connection. CF1 offers 4-10 pins in one row, CF2 20 pins in two rows. Other configurations are available on request.

Key features

  • For Automotive applications,125 °C heat resistance
  • ‚Anti-misoperation bridge structure‘ prevents unintended operation of mating lock
  • Contact reliability is preserved by double-sided contact structure
  • Inertia lock construction prevents half-mating
  • Weight and process cost reduction

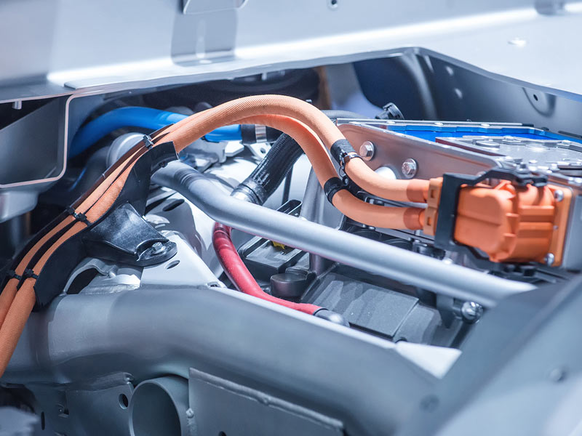

Automotive battery

Automotive battery
  • Battery management systems (BMS)

Automotive lighting

Automotive Lighting
  • Daytime running lights (DRL)
  • Rear lamp

Industrial

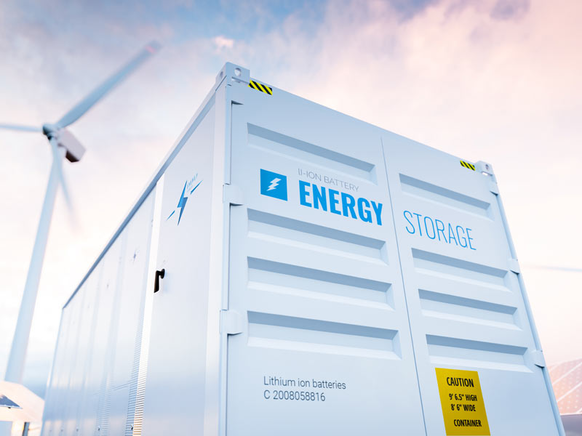

Energy storage systems
  • Energy storage systems (ESS)
  • Charging station
  • Lighting

More information

Connector CF 1CF 2
New product introductions

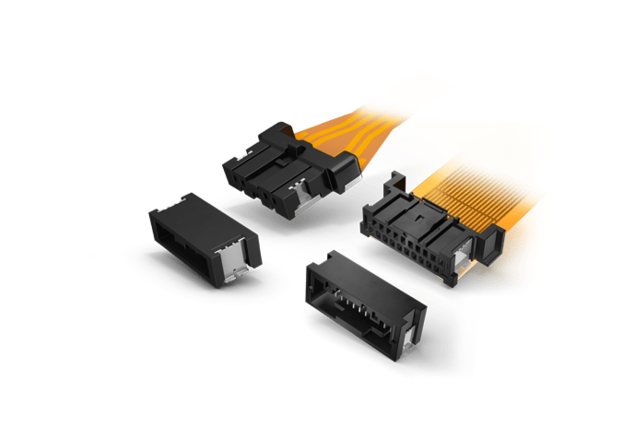

20 pins, two rows: New CF2 board-to-FPC connector available

Panasonic Industry now launches the new double-row CF2 board-to-FPC connector for automotive battery management and lighting systems.
