Fixed chip resistors (SMD)

Panasonic chip resistors use a soft termination structure for better solder joint reliability in order to minimize cracks in the solder fillet, caused by tough temperature cycle conditions.

Our product lines

(NEW) Wide range of resistors with a temperature range up to 175°C.

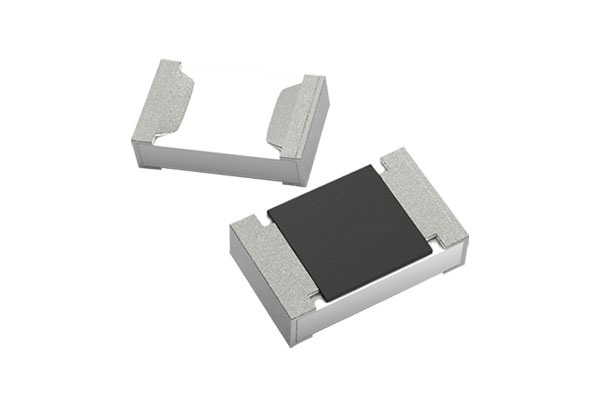

High temperature chip resistors

(NEW) Wide range of resistors with a temperature range up to 175°C.

Wide temperature range: -55 to +175°C. Power derating only starts at 105°C, making it the perfect solution with high power in mid temperature ranges.

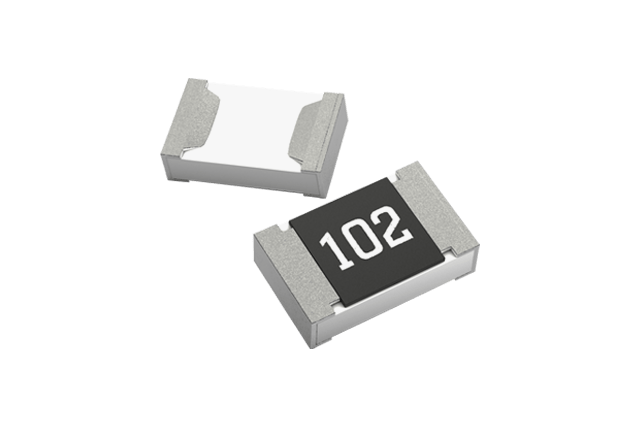

High precision chip resistors
Resistors

High precision chip resistors

High precision chip resistors offer ultra-low tolerance and TCR values and are available both in thick and thin film technology.

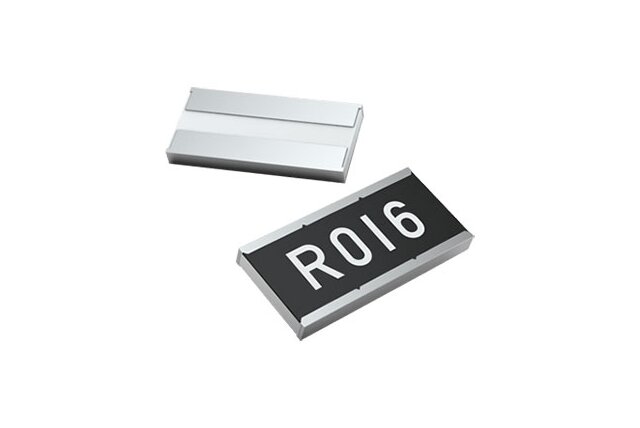

Current-sensing thick film chip resistors
Resistors

Current-sensing thick film chip resistors

Current-sensing chip resistors include low ohmic value devices and are available in different values and sizes.

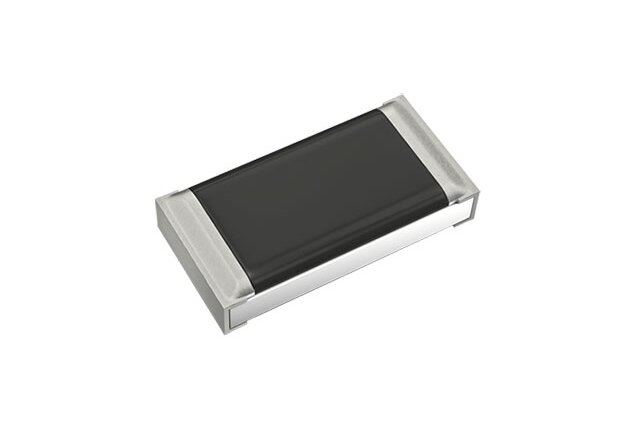

Small, high power chip resistors
Resistors

Small, high power chip resistors

The anti-pulse series of thick film resistors includes high voltage chip devices with superior pulse characteristics.
Anti-sulfurated chip resistors
Resistors

Anti-sulfurated chip resistors

Panasonic's anti-sulfuration resistors mostly target harsh environments, where sulfuration may be an issue.

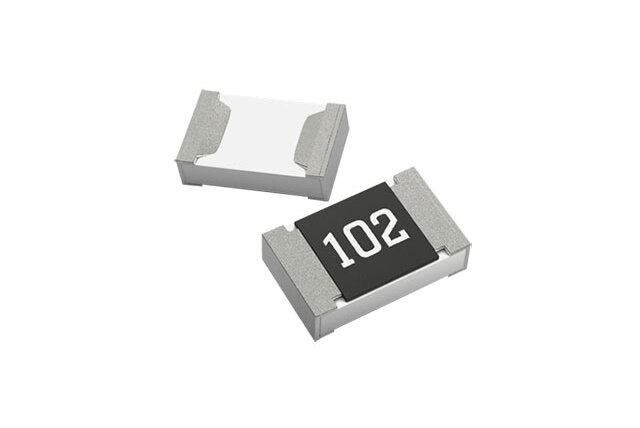

General purpose chip resistors
Resistors

General purpose chip resistors

General purpose resistors include a vast variety of resistance values, sizes, and tolerances.

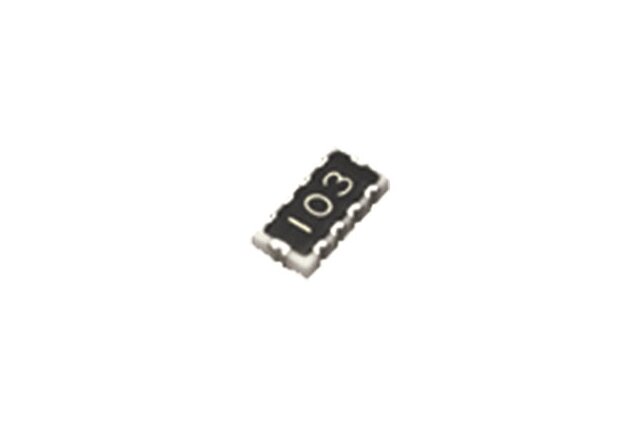

Resistor networks
Resistors

Resistor networks

Chip resistor networks include high density products that improve placement efficiency.

High performance chip resistors

Resistors are key components found in all electronic devices. Panasonic resistors are available in high precision, environment resistant, current sensing, small & high power.

Download our brochure

Download our promotion documents

Name File type Size Date Language
PDF High Power Anti-Surge Chip Resistors: ERJP Series Flyer, Fighting card 941 KB 08.07.2024 English
PDF High Power Current Sensing Resistors: ERJD1 / ERJD2 Series Flyer, Fighting card 425 KB 08.07.2024 English
PDF High Power SMD Resistors Flyer 323 KB 17.11.2020 English
PDF Products Catalog (Fixed Resistors) Catalog 12 MB 08.11.2023 English

Overview of our chip resistors

Product Part number Spec Size (inch) Power Rating (W) Resistance (Ω) Resistance Tolerance (%) Datasheet
High Precision Thin Film ERA*A 0201 to 1206 0.05 to 0.25 10 to 1M ±0.05 to ±0.5 Download
Thin Film (NEW) ERA*V/K 0402 to 0805 0.1 to 0.25 47 to 750 k ±0.05, ±0.1 Download
Thick Film ERJPB 0603, 0805 0.2, 0.25 200 to 1M ±0.1, ±0.5 Download
Current Sensing Thick Film ERJ*B / BW / LW 0402 to 2512 0.1 to 1 5m to 9.1 ±0.5 to ±5 Download
Wide Terminal ERJA / B 0508 to 1225 0.33 to 2 5m to 1M ±1, ±2, ±5 Download
Wide Terminal ERJD 0612, 1020 1, 2 10m to 200m ±1, ±5 Download
Metal Plate ERJMB / MS 1020, 2512 2, 3 1m to 10m ±1 Download
High temperature (NEW) Thick film ERJH 0402 to 0805 0.1 to 0.5 1 to 300 k ±0.5, ±1, ±5 Download
High power Anti-Surge ERJP 0402 to 1210 0.2 to 0.66 1 to 10M ±0.5, ±1, ±5 Download
Anti-Pulse ERJT 0805 to 1210 0.25 to 0.50 1 to 1M ±5, ±10, ±20 Download
Anti-sulfurated Thick Film ERJS / U 0201 to 2512 0.05 to 1 0.1 to 10M ±0.5, ±1, ±2, ±5 Download
Thick Film
/ Precision		 ERJU-R 0402 to 0805 0.1, 0.125 100 to 100k ±0.5 Download
Anti-Surge ERJUP 0805, 1206 0.5, 0.66 1 to 10M ±0.5 to ±5 Download
Wide Terminal ERJC1 1020 2 10m to 1 ±1, ±5 Download
General purpose Thick Film
/ Precision		 ERJ 01005 to 2512 0.05 to 1 1 to 2.2M ±0.5, ±1 Download
Thick Film ERJ 01005 to 2512 0.031 to 1 1 to 10M ±5, Jumper Download
Resistor Network Network EXB
(8,15 element)		 1206 to 2512 0.025 to 0.063
/element		 47 to 1M ±5 Download
Array EXB
(2,4,8 element)		 0302 to 2009 0.03, 0.063, 0.1
/element		 1 to 1M ±5 Download
Anti-sulfurated
 Array		 EXBU
 (2,4,8 element)		 0302 to 1506 0.03, 0.063
/element		 1 to 1M ±5 Download
