PAN9028 (88W8987)
Introducing Panasonic’s Wi-Fi 5 Dual Band 2.4/5 GHz and Bluetooth 5.2 Combo module, the PAN9028!

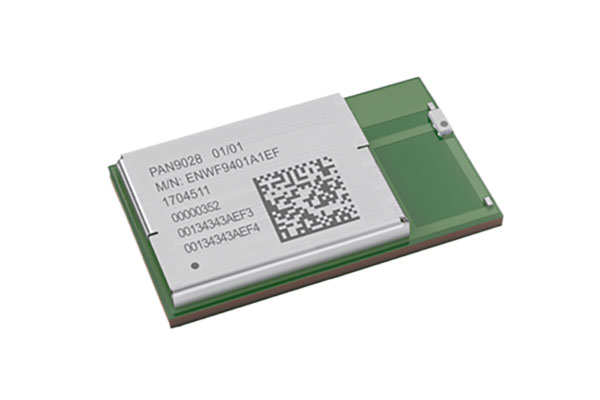

The PAN9028 is a dual band 2.4 GHz and 5 GHz 802.11 a/b/g/n/ac Wi-Fi radio module with integrated Bluetooth BR/EDR/Low Energy (LE), specifically designed for highly integrated and cost-effective applications. The simultaneous and independent operation of the two standards enables high data rates (802.11ac) and low-power operation (Bluetooth Low Energy). Integrated power management, a fast dual-core CPU, 802.11i security standard support and high-speed data interfaces deliver the performance for the speed, reliability and quality requirements of next generation products. Tx power calibration data and Wi-Fi/Bluetooth system parameters are pre-stored on the one-time-programmable memory of the PAN9028 during production at Panasonic. This simplifies passing the certification process for PAN9028 customers enabling faster time-to-market. An optional integrated PMIC ensures that only one supply voltage is required for the otherwise necessary four different internal voltage levels. This greatly simplifies hardware design and reduces BOM costs.
![Wireless connectivity module PAN9028 Panasonic Industry](https://mediac.industry.panasonic.eu/p/styles/500x/public/2022-11/ENWF940xA1EF_PAN9028_TeaserWebsite-min.png?VersionId=QhP5TO8nFyRV7Zsfnulxr8UMlfkppAM3&itok=1X9WLp-J)
Technical Specification
Item |
Performance characteristics |
Order number | ENWF9408A1EF (Multi-region with PMIC); ENWF9408A2EF (Multi-region without PMIC) |
Production status | Mass production |
RF category | Wi-Fi® Radio 2.4 GHz & 5.0 GHz 802.11 a/b/g/n/ac; Bluetooth® 5.2 (BR, EDR, LE) |
Software/profile | Linux drivers by NXP i.MX RT series: MCUXpresso IDE |
Used IC | 88W8987 |
Rx sensitivity | -97 @ 1M-DSSS |
Tx power max | +16 @ IEEE 802.11b |
Antenna option | Chip Antenna and bottom pad via SPDT switch |
Size (l x w x h) [mm] | 24 x 12 x 2.8 |
Power supply [V] | 3.3 with PMIC / 3.0 to 3.6 without PMIC |
Power consumption Tx | 320mA, 802.11b @11Mb/s |
Power consumption Rx | 60mA @802.11b |
Power consumption sleep | Power Down Mode: 150μA |
Interfaces | GPIO, SDIO 3.0, HS UART, PCM |
Speciality | WiFi 5 and Bluetooth 5 Combo Module with optional integrated Power Management IC |
Certification |
Multi Region (EU CE RED / FCC / ISED ) in one P/N available for:
|
Operating temperature | -30 to +85 °C |
Standard packaging QTY | 1000 pcs |
Evaluation Boards

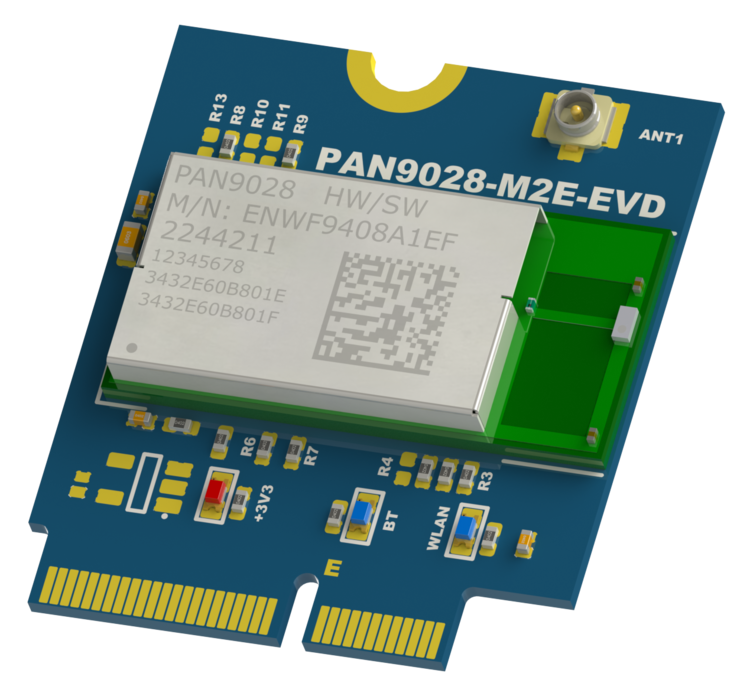

M.2 Device
- M.2 Key E form factor
- External antenna U.FL connector
- Coexistence interface
- Wi-Fi and Bluetooth status indicator LEDs
- PCM interface
MicroSD Adapter
- PAN9028 module (MR-variant)
- MicroSD host interface
- HS UART interface
- U.FL connector
- Power Management
P/N | Package includes | Stock Search |
---|---|---|
ENWF9408AMEF | 1x M.2 Evaluation Board with module PAN9028-MR and PMIC (ENWF9408A1EF) | BUY |
ENWF9408AVEF | 1x MicroSD Adapter with module PAN9028-MR and PMIC (ENWF9408A1EF) | BUY |
Get Started!
For hardware design requirements please have a look at the Module Integration Guide. It is intended to support the easy integration of the module into a product and to ensure the compliance with regulatory requirements.
![PAN9028 M.2 EVB](https://mediac.industry.panasonic.eu/p/styles/500x/public/2023-04/ENWF9408AMEF_PAN9028_M2E.png?VersionId=Z.Twy8SUIC6qgCpANY9_QhfASYGsGeUE&itok=AhUsatc8)
![Wireless PAN9028 mSDU 3D Panasonic Industry](https://mediac.industry.panasonic.eu/p/styles/500x/public/2021-08/MicrosoftTeams-image__8_-removebg-preview.png?VersionId=j6P.R0rXrwIQjpZFeEU8bgT1AcGOeCCj&itok=FZEo3a7Q)
PAN9028 documentation
![Man_notebook](https://mediac.industry.panasonic.eu/p/styles/500x/public/2023-02/Man_notebook.jpg?VersionId=XQSViUWci6zBEtSNIKtu66pW.H3WWyiC&itok=GLVH45lQ)
Get all the technical information on the PAN9028 mSD-U adapter here!
Contents of the Wireless Connectivity Development Hub:
- User Guide for the PAN9028 mSD-U adapter
- Instructions on using NXP i.MX evaluation boards as host platform
- Downloadable schematics of the mSD-U Adapter as reference design
Click here: PAN9028 - Wireless Connectivity Development Hub
NXP and Panasonic Industry - a golden cooperation
![NXP Gold Partner](https://mediac.industry.panasonic.eu/p/styles/500x/public/2024-05/NXP_WebPR.jpg?VersionId=zGHvtRDRemHLkrhQK0SKIZyurK.MMl2Q&itok=crNE4wbw)
Panasonic Industry is a Gold partner under NXP’s Ecosystem member program. The Gold partner status underlines a strong strategic alignment between our products and a shared mindset when it comes to offering our customers solutions that are one step ahead in the market.
Part of NXP Product Longevity Program
![NXP Longevity Program without background 2](https://mediac.industry.panasonic.eu/p/styles/500x/public/2023-10/NXP_Longevity_wo_background_2.png?VersionId=0gwFkrR4KvK94hwgQT3CMNaD97YgjmfP&itok=TIBtd6X9)
Product | 88W8987 |
Launch Date | Jan 2015 |
Remains in Longevity Program until | Jan 2030 |
Official Website Link to Longevity Program | Product Longevity | NXP Semiconductors |
