EF-S1 electrostatic sensor
Features
- Maintains and regulates product quality by preventing damage from static electricity
Static electricity that can build up in various places along a process line can be monitored constantly so that abnormalities can be prevented before they occur, ensuring quality. - Reduces time for ionizer inspections
The de-ionizing effectiveness of ionizers can be understood in real-time so that things such as ionizer damage and the replacement period for worn components can be checked objectively, reducing the time required for inspection and testing.
Specifications - Sensor head
| EF-S1HS | |
|---|---|
| Type | Spot type |
| Measuring range | 8.0 to 20.5mm (±1kV); 21.0 to 100mm (±2kV) |
Specifications - Controller
| EF-S1C | |
|---|---|
| Type | Spot type |
| Power supply voltage | 24V DC ±10% |
| Display range (measurement range) | -1000 to 1000 (±1kV); -1999 to 1999 (±2kV) |
| Judgment output | NPN open-collector transistor, max. 100mA |
| Analog voltage output | Output voltage 1 to 5V; Output impedance approx. 100Ω |

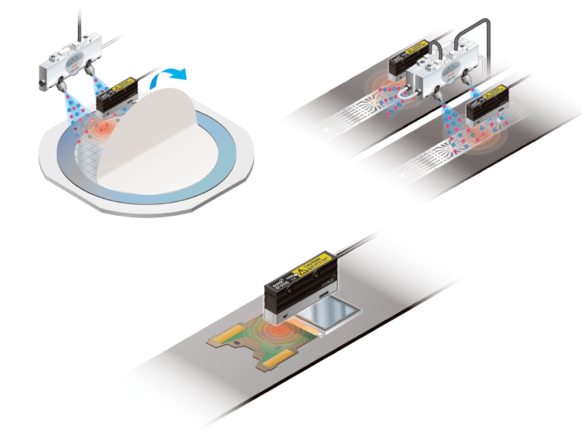

Applications
- Measuring surface potential when removing back grinding sheets
- Measuring static electric charge in lead frames
- Measuring frictional electrification of LCD modules
