NA1-PK3 photoelectric sensor

Ultraslim body picking sensor.

NA1-PK3 series

With an ultracompact size of 24mm × 70mm × 8mm (WxHxD), you can even install the NA1-PK3 series sensors in tiny parts boxes. The beam scanning system reduces wiring and installation time. The mutual interference prevention function guarantees correct operation even in multi-stage parts boxes.

Characteristics:

  • Space-saving, pocket lighter-sized unit
  • Utilizes a large, bright, clearly visible job indicator
  • No synchronization wires required
  • Switchable output operation
  • Easy alignment
  • Flexible cable orientation
  • Sensor protection brackets available

Options:

  • Sensor protection brackets
  • Slit mask
  • Mating cable (2m, 5m)
  • Y-shaped connector (5 pcs. per set)
Product Finder

Use the Product Finder to find the best product for you

product finder Panasonic Industry
Find the optimal product for your project by selecting attributes and filter criteria

Applications

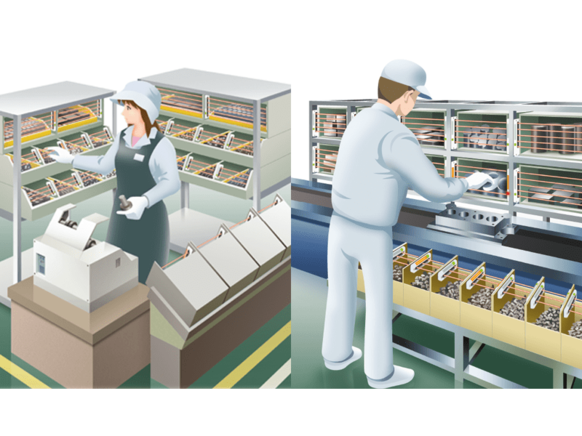

NA1-PK3 / NA1-PK5 applications Panasonic Industry
  • Cell production line
  • Assembly line
