Film capacitors

Low ESR, high reliability and long life solutions for industrial, automotive, infrastructure and home appliance applications
capacitor film shadow

Optimize your design

Surface mount types offer stable electric characteristic for DC blocking and filtering, audio and back-lighting in the low/mid-range voltage range.

Radial lead types offer low ESR and long life for filtering and smoothing in industrial, automotive and home appliance applications for mid-range/high voltage and high frequency requirements.

Our top products

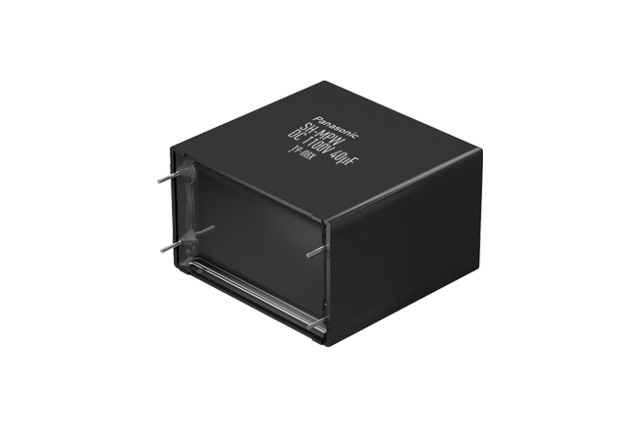

capacitor film dc-link-filtering
Film capacitors

Automotive, industrial and infrastructure use

Suitable for xEV smoothing, filter and snubber designs; solar power inverters and more.

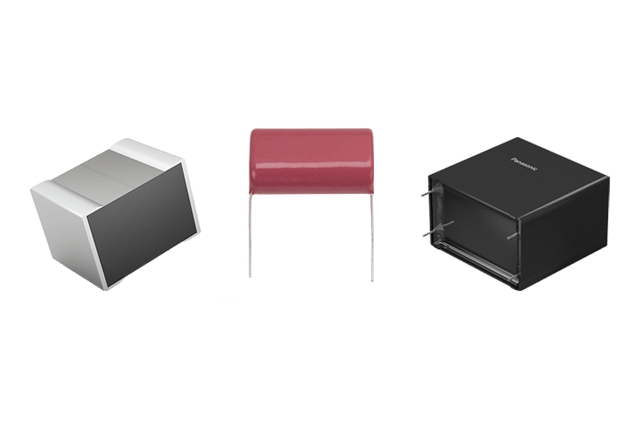

capacitor film smd radial dip
Film capacitors

Electronic equipment use

Ideal for: DC blocking and filtering; audio circuits and filtering; and smoothing in general applications.

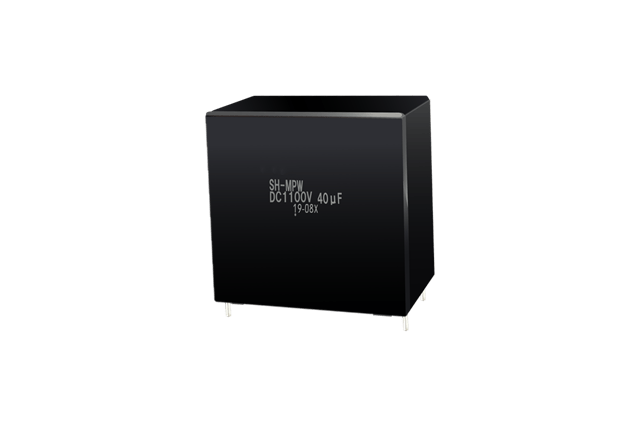

capacitor film-capacitors-for-AC-motor.png
Film capacitors

AC motor use

Available as dry/oil-filled versions for low to high voltage ranges; high safety types include a built-in fuse function.

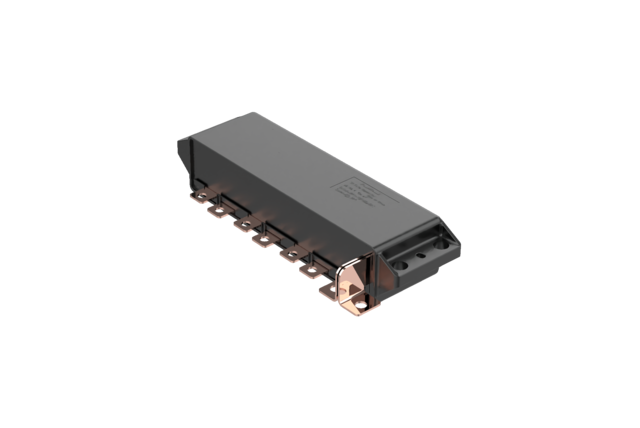

Standard DC-Link Capacitor for HP-Drive
Film capacitors

Custom film capacitors

Our DC-Link film capacitors, based on unique metallization technology with built-in safety functionality, withstand the high voltages and high currents experienced in xEV and industrial applications.​

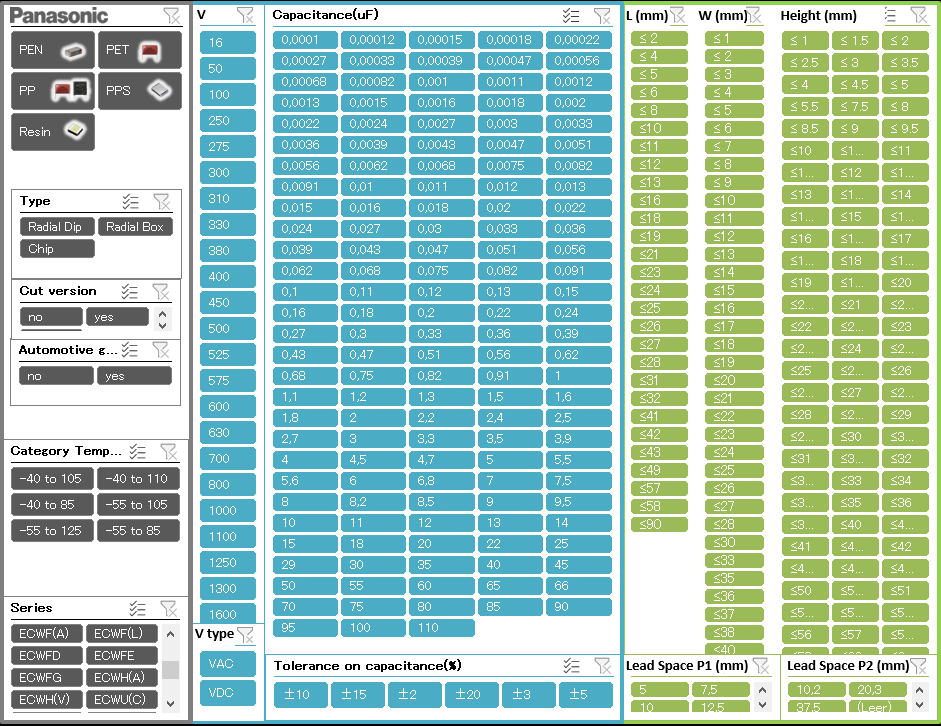

capacitors film selection tool

Film capacitor selection tool

Helping you easily finding the right film capacitor part number(s) for your design even when you are off-line.

In addition to our product finder on our website, we have created a selection tool in Microsoft® Excel for you.

Please feel free to download it by a simple click.

Get the selection tool here!

Download our promotion documents

Name File type Size Date Language
PDF Film Capacitors Catalog Catalog 18MB 22.09.2023 English
Panasonic - Film capacitor - Selection tool Software, Support Tools 2MB 25.10.2023 English
PDF Film Capacitors Products list Catalog 759KB 22.09.2023 English
PDF Automotive & Industrial Film Capacitors Flyer Flyer 457KB 04.07.2023 English
Interference Suppression Capacitors (safety class X2) ECQUA English
PDF PFC/Smoothing/Filtering Capacitors ECWFG Flyer, Fighting card 639KB 08.07.2024 English
PDF DC Filtering Capacitors EZPV Flyer, Fighting card 640KB 08.07.2024 English
PDF EV Charging Solutions from Panasonic Industry Catalog, Brochure 3MB 25.10.2023 English
PDF Building Automation - Energy Management Solutions Catalog, Brochure 1MB 01.03.2022 English
PDF AEC-Q200 Passive Components Selection Guide Flyer 3MB 03.05.2022 English

Application notes

Name File type Size Date Language
PDF Application Note: Film caps for solar inverters Flyer, Case study 1MB 17.10.2022 English
PDF Application Note: Film caps for smart meters Flyer, Case study 569KB 17.10.2022 English
PDF Application Note: Film capacitors for Automotive Flyer, Case study 1MB 17.10.2022 English
PDF Application Note: Film caps for LED lighting Flyer, Case study 818KB 17.10.2022 English
PDF Application Note: Film caps for audio amps Flyer, Case study 625KB 17.10.2022 English
PDF Application Note: Film caps for compressor inverters Flyer, Case study 740KB 17.10.2022 English
PDF Application Note: EV Charging Flyer, Case study 857KB 17.10.2022 English
Product finder

Use the product finder to find the best product for you

product finder Panasonic Industry
Find the optimal product for your project by selecting attributes and filter criteria

Panasonic's original in-house patterned metalization process

Our patterned metallization technology achieves a very stable capacitance level over the capacitor’s lifetime and therefore guarantees high reliability in the application.

The patterns serve as a fuse mechanism function that prevents catastrophic, short-circuit failure modes.

Furthermore, a long life time is realized by the use of materials that protects against high temperatures and moisture ingress.
