PAN3013 - Robotics

ENW89855A3KF

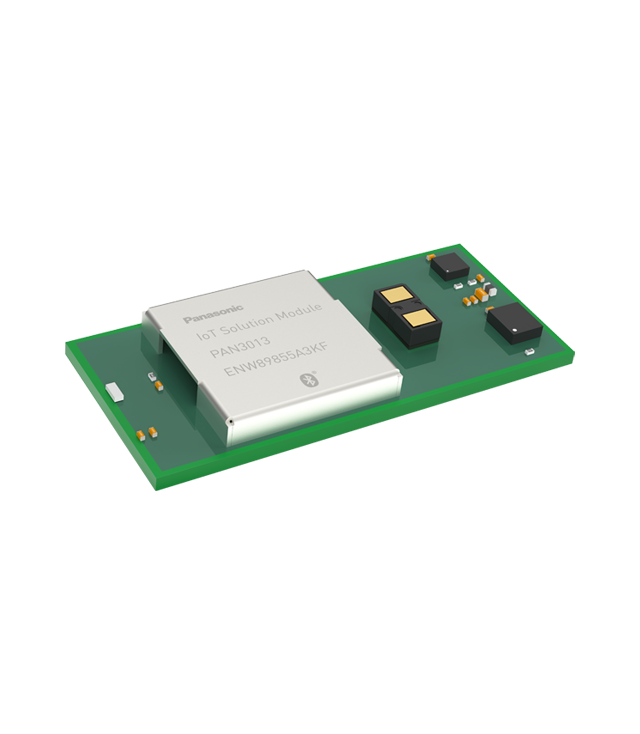

Based on and inspired by the ST BlueTile multi-sensor development kit, the PAN3013 includes next to a Bluetooth 5 SoC a Time-of-Flight sensor, a magnetometer and an accelerometer and gyroscope. With its selection of sensors, the PAN3013 is a perfect fit for applications in the field of smart industry respective robotics, obstacle detection, gesture recognition or surveillance.

Technical Specification

Item

Performance characteristics

Order number ENW89855A3KF
Production status Preproduction
RF category Bluetooth® 5.0 Low Energy
Software/profile SDK by ST Microelectronics
Used IC BlueNRG-2
Rx sensitivity -88 dBm @1Mb/s
Tx power max +9 dBm
Antenna option Ceramic antenna
Size (l x w x h) [mm] 31.0 x 14.0 x 3.0
Power supply [V] 2.6 to 3.5
Power consumption Tx 32 mA @8dBm (3V)
Power consumption Rx 25 mA
Power consumption sleep 11 µA
Interfaces I2C, UART, PDM, GPIO, ADC, SWD
Microcontroller ARM® Cortex®-M0
Memory 24kB RAM, 256kB Flash
Speciality Magnetometer, accelerometer & gyroscope, time-of-flight sensor
Evaluation board/stick STEVALBCN002V1B
Certification EU CE RED / FCC / IC under preparation
Operating temperature -20 to +85 °C

Available Software

Please have a look at the available software examples and demos on https://github.com/ArrowElectronics/Panasonic-IoT-Solution-Modules. The Repository contains dedicated code examples for the Panasonic IoT Solution Modules.
