High frequency circuit board materials for wireless/RF applications "XPEDION" series Panasonic Industry

"MEGTRON" series

Multi-layer circuit board materials for ICT infrastructure equipment

Features

  • Multi-layer circuit board materials suitable to large capacity and high speed transmission of high frequency signal.
  • Low Dk/Df, high heat resistance, high reliability.

Circuit Board Materials - Line-up for network

Series Description Global site information  Product finder

MEGTRON8
R-5795(U), R-5795(N)

Ultra-low transmission loss, highly heat-resistant
multi-layer circuit board materials
Click for more Click for more
MEGTRON7
R-5785(N), R-5785(GN), R-5785(GE), R-5785(R)
Ultra-low transmission loss, highly heat-resistant
multi-layer circuit board materials
Click for more Click for more
Halogen-free MEGTRON6
R-5375(N), R-5375(E)
Halogen-free ultra-low transmission loss
multi-layer circuit board materials
Click for more Click for more
MEGTRON6
R-5775(N),R-5775(K),R-5775(G),R-5775(S),R-5775(R)
Ultra-low transmission loss, highly heat-resistant
multi-layer circuit board materials
Click for more Click for more
MEGTRON4S, MEGTRON4
R-5725S, R-5725
Low transmission loss, highly heat-resistant
multi-layer circuit board materials
Click for more Click for more
MEGTRON M
R-5735
Low transmission loss, highly heat-resistant
multi-layer circuit board materials
Click for more Click for more
Halogen-free MEGTRON2
R-1577, R-1577E
Halogen-free low transmission loss, highly heat-resistant
multi-layer circuit board materials
Click for more Click for more
HIPER V
R-1755V
Highly heat-resistant, low CTE
multi-layer circuit board materials (High-Tg type)
Click for more Click for more

Transmission loss performance Ranking in MEGTRON series

electronic materials - circuit board materials MEGTRON: transmission loss performance

Line-up (Frequency dependence by transmission loss)

electronic materials - circuit board materials MEGTRON: frequency dependence transmission loss
electronic materials - circuit board materials MEGTRON: frequency dependence transmission loss

General properties

Item Glass
transition
temp. (Tg)
CTE z-axis T288
(with copper)
Dielectric
constant (Dk)
Dissipation
factor (Df)
Peel strength
α1 α2 @12-14GHz 1oz (35μm)
Test method DSC IPC-TM-650
2.4.24
IPC-TM-650
2.4.24.1
Balanced-type circular disk
resonator method
IPC-TM-650
2.4.8
Condition A A A C-24/23/50 A
Unit °C ppm/°C min kN/m
MEGTRON8 R-5795(U) 220*¹  50 270 >120 3.08
[@14GHz]
0.0012
[@14GHz]
0.7
(Cu: H-VLP3)
R-5795(N) 220*¹  50 270 >120 3.13
[@14GHz]
0.0016
[@14GHz]
0.7
(Cu: H-VLP3)
MEGTRON7 R-5785(N) 200  42 280 >120 3.31
[@14GHz]
0.0023
[@14GHz]
0.8
(Cu: H-VLP)
R-5785(GN) 200  42 280 >120 3.31
[@14GHz]
0.0023
[@14GHz]
0.8
(Cu: H-VLP2)
R-5785(GE) 200  42 280 >120 3.60
[@13GHz]
0.0034
[@13GHz]
0.8
(Cu: H-VLP2)
R-5785(R) 200  42 280 >120 3.31
[@14GHz]
0.0023
[@14GHz]
0.8*²
(Cu: Buried Resistor)
Halogen-free
MEGTRON6
R-5375(N) 250*¹  39 200 >120 3.36
[@13GHz]
0.0029
[@13GHz]
0.6
(Cu: H-VLP2)
R-5375(E) 250*¹  39 200 >120 3.66
[@13GHz]
0.0037
[@13GHz]
0.6
(Cu: H-VLP2)
MEGTRON6 R-5775(N) 185  45 260 >120 3.34
[@13GHz]
0.0037
[@13GHz]
0.8
(Cu: H-VLP)
R-5775(K)
R-5775(G)
185  45 260 >120 3.62
[@13GHz]
0.0046
[@13GHz]
0.8
(Cu: H-VLP)
R-5775(S) 185  45 260 >120 3.34
[@13GHz]
0.0037
[@13GHz]
0.8*²
(Cu: Buried Resistor)
R-5775(R) 185  45 260 >120 3.62
[@13GHz]
0.0046
[@13GHz]
0.8*²
(Cu: Buried Resistor)
MEGTRON4 R-5725 176  35 265 30 3.68
[@13GHz]
0.0074
[@13GHz]
1.2
(Cu: ST)
MEGTRON4S R-5725S 200  32 250 50 3.8
[@10GHz]*³
0.007
[@10GHz]*³
1.4
(Cu: ST)
MEGTRON M R-5735 195  31 240 35 3.75
[@13GHz]
0.0087
[@13GHz]
1.3
(Cu: ST)
Halogen-free
MEGTRON2
R-1577 170  34 200 25 4.0
[@10GHz]*³
0.013
[@10GHz]*³
1.3
(Cu: ST)
Halogen-free
MEGTRON2E
R-1577E 173  35 210 25 4.1
[@10GHz]*³
0.013
[@10GHz]*³
1.3
(Cu: ST)
HIPER V R-1755V 173  44 255 20 4.3
[@10GHz]*³
0.020
[@10GHz]*³
1.5
(Cu: ST)

The sample thickness of MEGTRON8, MEGTRON7, MEGTRON6 and Halogen-free MEGTRON6 is 0.75mm. The sample thickness of other part number is 0.8mm.
*1 Test method: DMA
*2 Buried Resistor Copper Foil 1/2oz (18μm)
*3 [@10GHz] Test method: IPC-TM-650 2.5.5.5

Our Halogen-free materials are based on JPCA-ES-01-2003 standard and others.
Contain; Chlorine:≤0.09wt%(900ppm), Bromine:≤0.09wt%(900ppm),
Chlorine+Bromine:≤0.15wt%(1500ppm)
The above data are typical values and not guaranteed values
.

Downloads

Name File Type Size Date Language
PDF https://mediap.industry.panasonic.eu/assets/imported/industrial.panasonic.com/cdbs/www-data/pdf/EMB0000/ast-ind-283816.pdf 503.8 KB 18.08.2023 English
PDF Catalog_HF-MEG6_R-5375.pdf 138.9 KB 19.10.2023 English
PDF Catalog_HF-MEGTRON6_R-5375_2022.pdf 138.9 KB 20.07.2022 English
PDF Catalog_HIPER-V_R-1755V_2022.pdf 176.7 KB 20.07.2022 English
PDF Catalog_MEGTRON2_R1577_2022.pdf 215.3 KB 20.07.2022 English
PDF Catalog_MEGTRON4S_R-5725S_2022.pdf 195.8 KB 20.07.2022 English
PDF Catalog_MEGTRON6_R-5775_2022.pdf 175.2 KB 20.07.2022 English
PDF Catalog_MEGTRON7_R-5785_2022.pdf 180.6 KB 20.07.2022 English
PDF Catalog_MEGTRON8_R-5795_en_2022.pdf 260.9 KB 20.07.2022 English
PDF DataSheet_HF-MEG6_R-5375_2023.pdf 503.8 KB 19.10.2023 English
PDF DataSheet_HIPER-V_R-1755V_2019.pdf 145 KB 20.07.2022 English
PDF DataSheet_MEG2_R-1577_2022 230.2 KB 09.08.2022 English
PDF DataSheet_MEG4_R-5725S_2022 243.6 KB 09.08.2022 English
PDF DataSheet_MEG4_R-5725_2020.pdf 232.3 KB 20.07.2022 English
PDF DataSheet_MEG4_R-5725_2022.pdf 281.9 KB 20.07.2022 English
PDF DataSheet_MEG6_R-5775(N)_2021.pdf 217.8 KB 20.07.2022 English
PDF DataSheet_MEG6_R-5775(N)_2022.pdf 239.3 KB 20.07.2022 English
PDF DataSheet_MEG6_R-5775_-50GHz_2021.pdf 239.1 KB 20.07.2022 English
PDF DataSheet_MEG6_R-5775_-50GHz_2022.pdf 316.2 KB 20.07.2022 English
PDF DataSheet_MEG6_R-5775_2022 237.8 KB 09.08.2022 English
PDF DataSheet_MEG6_R-5775_JIS_2019.pdf 544.1 KB 20.07.2022 English
PDF DataSheet_MEG6_R-5775n_JIS_2019.pdf 581.1 KB 20.07.2022 English
PDF DataSheet_MEG7_R-5785(G)_2021.pdf 362.5 KB 20.07.2022 English
PDF DataSheet_MEG7_R-5785(G)_2022.pdf 280.5 KB 20.07.2022 English
PDF DataSheet_MEG7_R-5785(N)_2021.pdf 296.2 KB 20.07.2022 English
PDF DataSheet_MEG7_R-5785(N)_2022.pdf 236.5 KB 20.07.2022 English
PDF DataSheet_MEG7_R-5785n_JIS_2019.pdf 636.8 KB 20.07.2022 English
PDF DataSheet_MEGM_R-5735_2020.pdf 231.6 KB 20.07.2022 English
PDF DataSheet_MEGM_R-5735_2022.pdf 256.4 KB 20.07.2022 English
PDF DataSheet_MEGTRON8_R-5795_22071526.pdf 458.2 KB 20.07.2022 English

Use the Product Finder to find the best MEGTRON for you

product finder Panasonic Industry
Find the optimal product for your project by selecting attributes and filter criteria

More information on further materials

R-2400-teaser
Product notices

New high thermal conductive film material

Panasonic Industry has developed an high-thermal conductive film named R-2400, designed explicitly for multilayer circuit boards.
Electronic Materials tests start on the ISS
Product notices

Electronic Materials tests start on the ISS

A range of state-of-the-art electronic materials from Panasonic Industry arrived at the International Space Station on March 15, 2023, to be exposed to space environment for three months.
Electronic Materials
Product notices

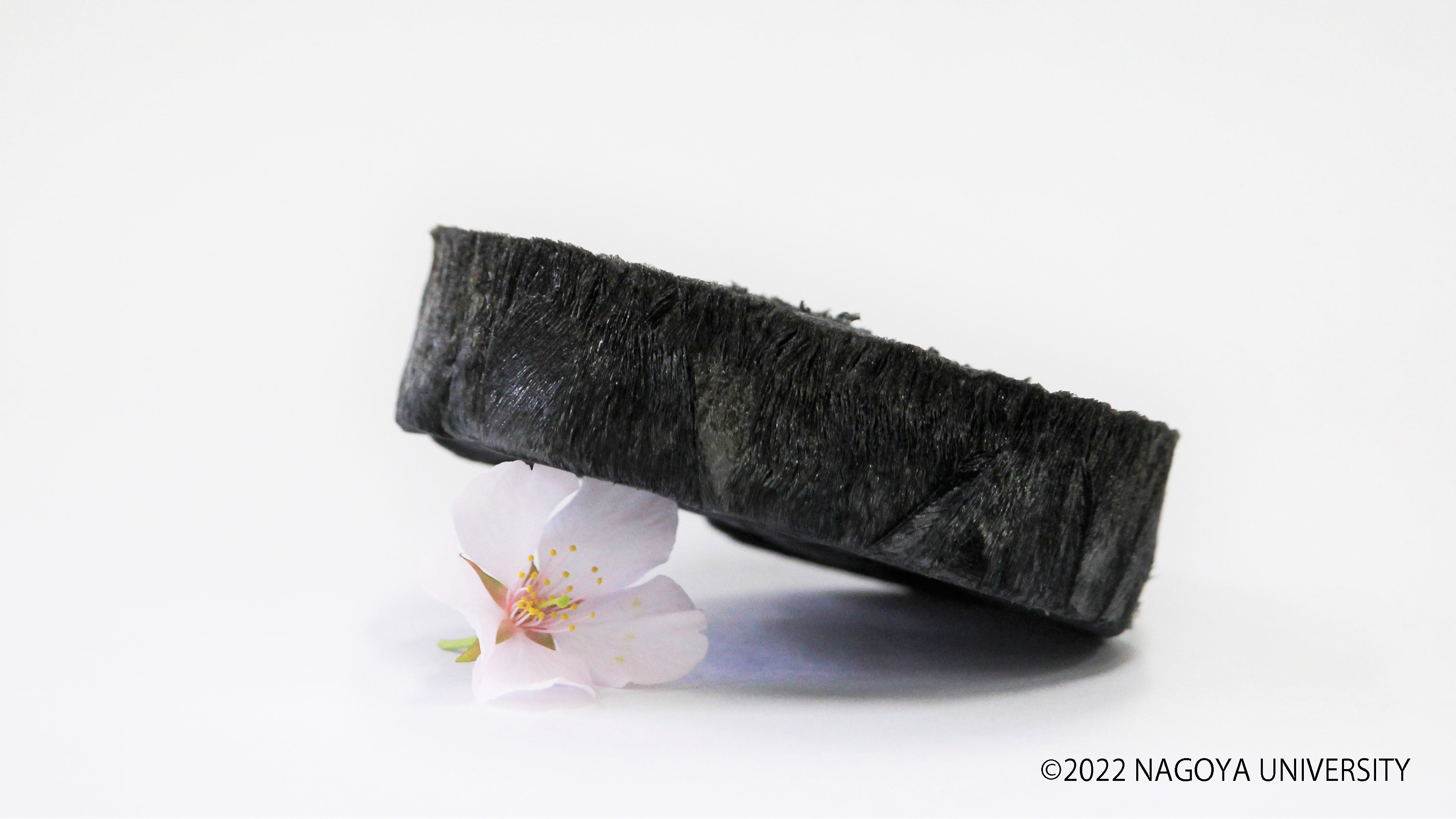

Joint Research on ultra-light EMC shielding material development with JAXA*
