PAN1782 (nRF52833)

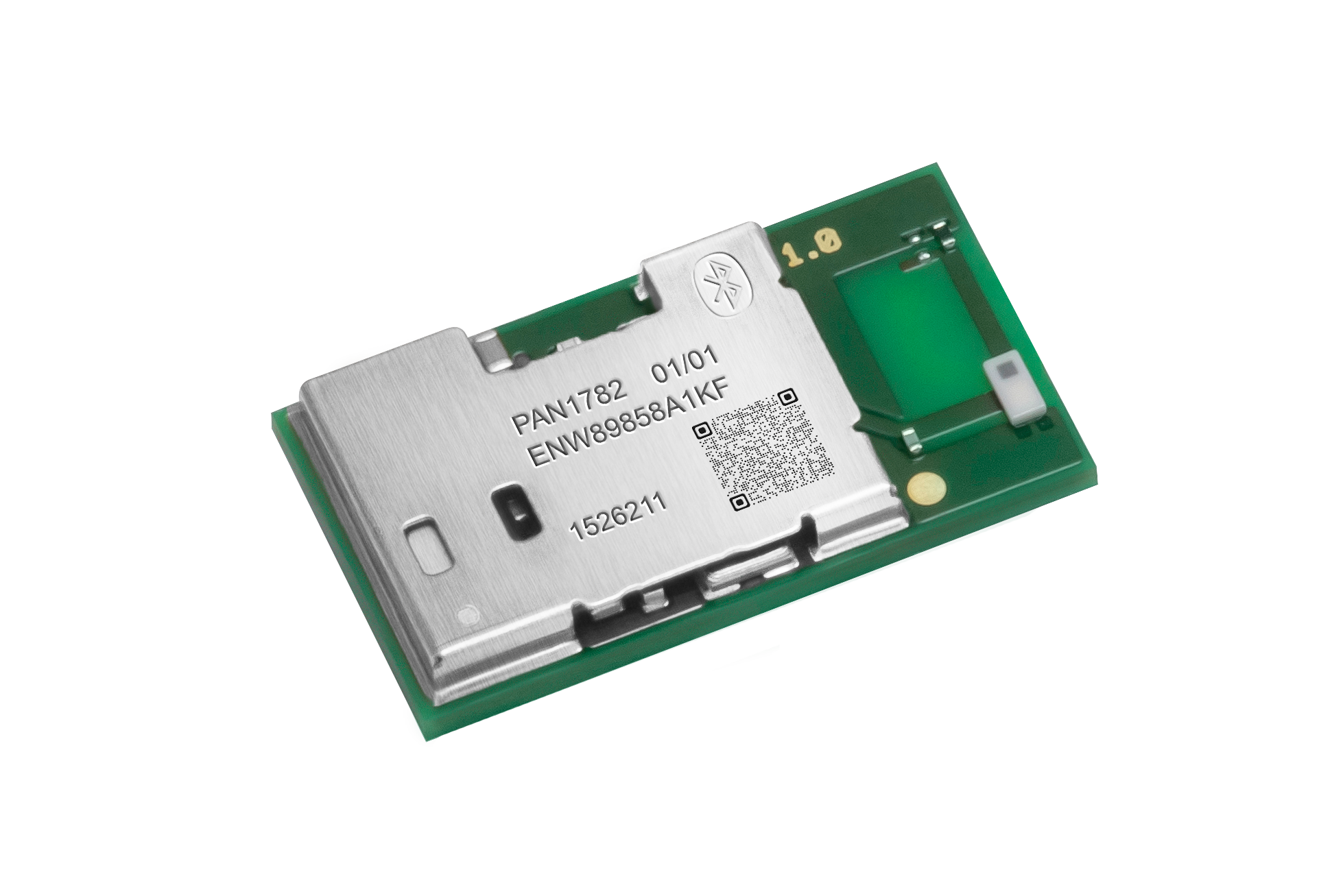

The PAN1782 is a Bluetooth® 5.3 Low Energy Module based on the Nordic nRF52833 single-chip controller. The Bluetooth® 5.3 feature enables a higher symbol rate of 2 Mbps using the high-speed LE 2M PHY. Furthermore, the new LE advertising extensions allow for much larger amounts of data to be broadcasted in connectionless scenarios.
With the ARM ® Cortex ® -M4 processor, 128 kB RAM, and the built-in 512 kB flash memory, the PAN1782 can easily be used in standalone mode, thereby eliminating the need for an external processor, saving complexity, space, and cost.
The PAN1782 supports angle of arrival (AOA) and angle of departure (AOD) direction finding using Bluetooth. Additionally, the PAN1782 also supports Type 2 Near Field Communication (NFC-A) for use in simplified pairing and payment solutions (external antenna required).
Technical Specification
Item |
Performance characteristics |
| Order number | ENW89858A1KF |
| Production status | Mass production |
| RF category | Bluetooth® 5.3 Low Energy, NFC |
| Software/profile | Nordic Connect SDK by Nordic (recommended), nRF5 SDK by Nordic |
| Used IC | nRF52833 |
| Rx sensitivity | -96 dBm @1Mb/s,-103 dBm @125kb/s |
| Tx power max | +8 dBm |
| Antenna option | Ceramic Antenna |
| Size (l x w x h) [mm] | 15.6 x 8.7 x 2.0 |
| Power supply [V] | 1.7 to 5.5 |
| Power consumption Tx | 4.9 mA @0dBm (3.3V) |
| Power consumption Rx | 4.7 mA (3.3V) |
| Power consumption sleep | 0.6 µA System OFF, 1.5uA with RTC wake up |
| Interfaces | GPIO, UART, SPI, I2C, ADC, COMP, QDEC, PWM, NFC-A, USB2.0 |
| Microcontroller | ARM® Cortex®-M4F |
| Memory | 512kB Flash and 128kB RAM |
| Evaluation kit | Evaluation Board ENW89854AXKF |
| Certification | CE RED / FCC / ISED / MIC / KCC / RSM |
| Operating temperature | -40 to +85 °C |
| Standard packaging QTY | 1500 pcs |
Evaluation Boards

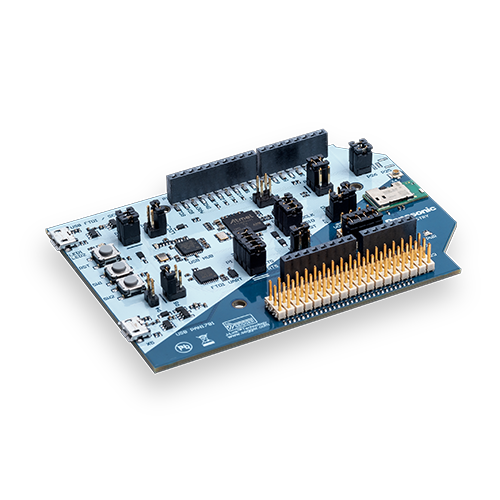

The evaluation board for PAN1782 features
- PAN1782 module with improved APPROTECT
- Segger J-Link on-board Debugger
- FTDI UART-USB converter
- 2 User Buttons
- 2 User LEDs
- Native USB interface
- NFC interface
- Access to all GPIOs
- Arduino form factor
| P/N | Package includes | Stock Search |
|---|---|---|
| ENW89858AXKF | 1x PAN1782 Evaluation Board Arduino form factor | BUY |
PAN1782 EVB documentation
Get all the technical information on the PAN1782 Evaluation Board here!
Contents of the Wireless Connectivity Development Hub:
- User Manual for the PAN1782 EVB
- Downloadable schematics of the Evaluation Boards (EVBs) as reference design
Click here: PAN1782 - Wireless Connectivity Development Hub (panasonic.de)
Datasheet
