Aluminum electrolytic capacitors (Radial lead type)

High reliability, long life, low impedance and high ripple current.

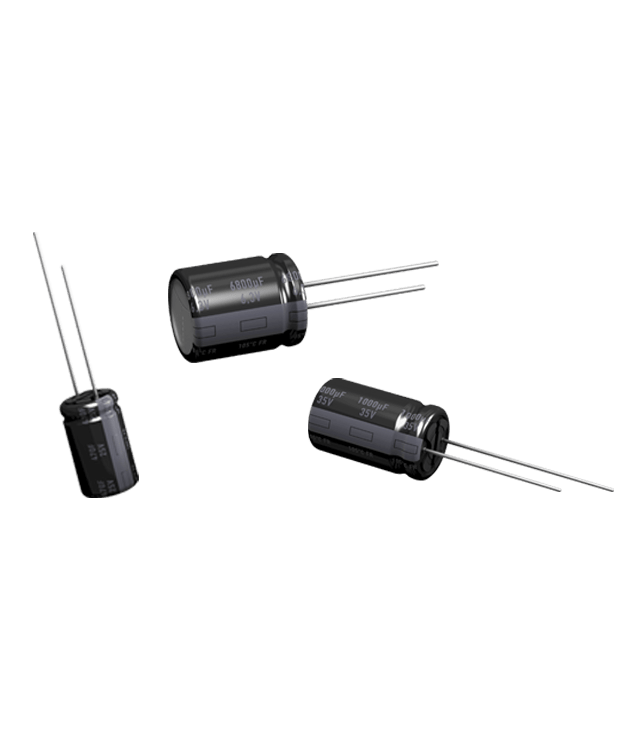

Radial lead type line-up (Electrolytic)

Series Datasheet High temperature guarantee Rated voltage range (V.DC) Capacitance range (µF) Size [ΦxL] (mm) AEC-Q200 Features
FS-A Download 105°C/5000h to 10000h 6.3 to 100 27 to 10000 5x11 to 16x25 - Low Impedance
Miniaturization
FP-A Download 105°C/4000h to 5000h 25 to 35 510 to 2000 10x16 to 12.5x25 Compliant High ripple current
Large capacitance
FR-A Download 105°C/5000h to 10000h 6.3 to 100 4.7 to 8200 5x11 to 16x25 - Low Impedance
FM-A Download 105°C/4000h to 7000h 6.3 to 50 22 to 6800 5x11 to 16x25 - Low Impedance
FK-A Download 105°C/4000h to 5000h 6.3 to 35 180 to 12000 8x11.5 to 18x25 Compliant Low impedance (10 to 30% less than FC series)
FC-A Download 105°C/3000h to 5000h 6.3 to 100 2.2 to 15000 4x7 to 18x40 Compliant Low impedance
EE-A Download 105°C/8000h to 10000h 160 to 450 10 to 330 10x20 to 18x40 - High ripple current
ED-A Download 105°C/8000h to 10000h 160 to 450 10 to 330 10x20 to 18x40 - High ripple current (at high frequency)
EB-A Download 105°C/5000h to 10000h 10 to 450 2.2 to 3300 5x11 to 18x31.5 - Long life
TP-A Download 135°C/1000h to 2000h
125°C/2000h to 5000h		 25 to 35 100 to 5100 8x16 to 18x31.5 Compliant High ripple (20% to 40% higher than TA series)
TA-A Download 125°C/2000h 10 to 63 2.2 to 4700 8x11.5 to 18x35.5 Compliant Heat cycle: 1000 cycle
Sleeve: Polyester
HD-A Download 105°C/2000h 10 to 50 2.2 to 22000 5x11 to 18x35.5 Compliant 1 Size Miniaturized Product of Current NHG
NHG-A Download 105°C/1000h to 2000h 6.3 to 450 1 to 22000 5x11 to 18x35.5 Compliant 105°C standard
GA-A Download 105°C/1000h 10 to 50 1.5 to 220 4x7 to 8x7 - 7mm height
GA-A
(Bi-polar)		 Download 105°C/2000h 6.3 to 50 1.5 to 330 5x11 to 10x20 - 105°C standard
Bi-polar
M-A Download 85°C/2000h 6.3 to 450 1 to 22000 5x11 to 18x40 - 85°C standard
SU-A
(Bi-polar)		 Download 85°C/2000h 6.3 to 50 2.2 to 6800 5x11 to 18x35.5 - 85°C Bi-polar standard
Bi-polar
KA-A Download 85°C/1000h 4 to 50 2.2 to 470 4x7 to 8x7 - 7 mm height
KA-A
(Bi-polar)		 Download 85°C/1000h 4 to 50 2.2 to 100 4x7 to 6.3x7 - 7 mm height
Bi-polar
KS-A Download 85°C/1000h 4 to 50 2.2 to 330 4x5 to 8x5 - 5 mm height
KS-A
(Bi-polar)		 Download 85°C/1000h 6.3 to 50 2.2 to 47 4x5 to 6.3x5 - 5 mm height
Bi-polar

Our top products

A-FS series
Lytic capacitors - Radial

A-FS series

A-FS Series offers long endurance of 105°C up to 10000h. Expanded high voltage up especially for 80V, 100V. Smaller case size with high capacitance.

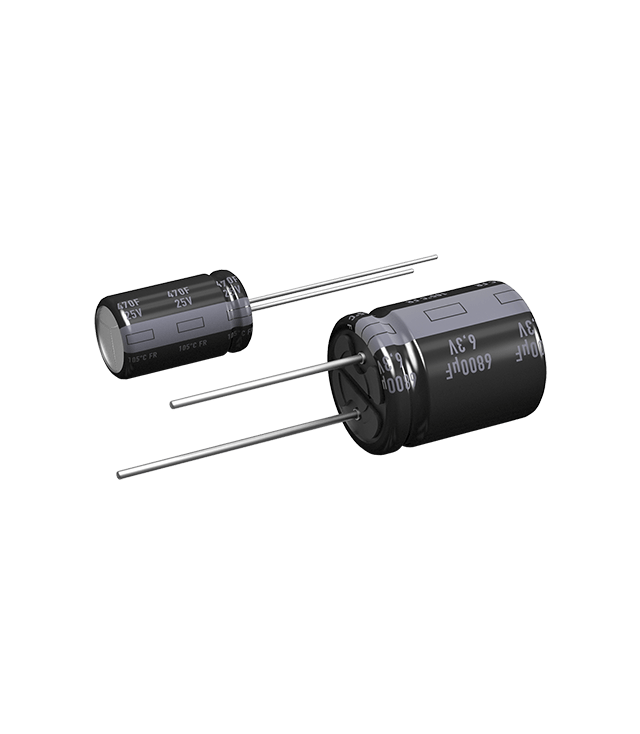

A-FR series
Lytic capacitors - Radial

A-FR series

A-FR Series offers long endurance specification of 105°C up to 10000h. Smaller case size with high capacitance technology.
A-FP series
Lytic capacitors - Radial

A-FP series

A-FP Series offers high ripple current, large capacitance compared with FC series. Endurance specification of 105°C up to 5000h. AEC-Q200 compliant.

More available products

A-FM series

A-FM Series offers an endurance of 105°C up to 7000h. Low impedance (up to 70% less than FC series) and high ripple current capability.

A-FK series

A-FK Series offers an endurance of 105°C up to 5000h. Low impedance (up to 30% less than FC series) in a miniaturized body. AEC-Q200 compliant.

A-FC series

A-FC Series offers an endurance of 105°C up to 5000h. A wide voltage range up to 100V with AEC-Q200 compliant.

A-EE series

A-EE offers an endurance of 105°C up to 10000h. Longer lifetime with higher ripple current (40% higher than ED). Higher voltage up to 450V.

A-ED series

A-ED Series offers an endurance specification of 105°C up to 10000h. Longer lifetime with higher ripple current (50% higher than EB series).

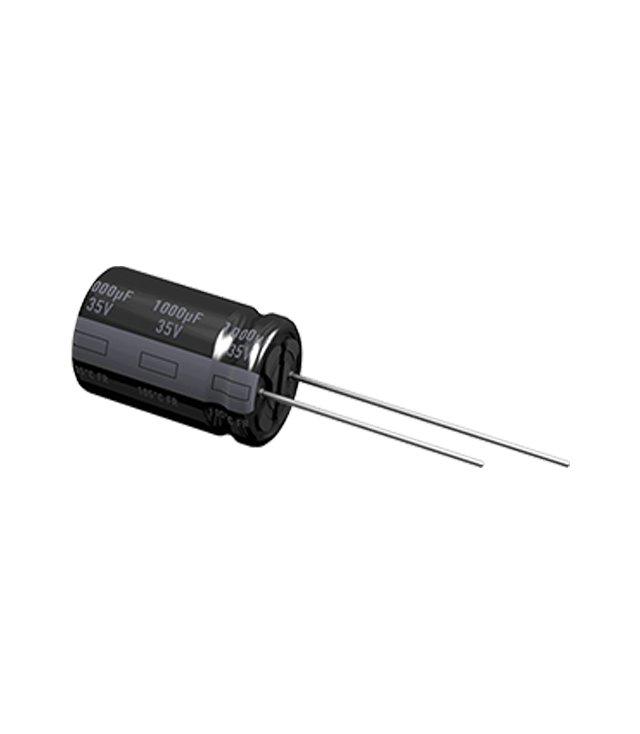

A-TP series

A-TP Series offers an endurance of 135°C 2000h (125°C 5000h). AEC-Q200 compliant. High ripple current (Up to 40% higher than A-TA).

A-TA series

A-TA Series offers an endurance specification of 125°C 2000h. AEC-Q200 compliant and voltage range is up to 63V available.

A-HD series

A-HD Series offer an endurance of 105°C 2000h. Higher capacitance (One size smaller than A-NHG series) with AEC-Q200 compliant.

A-NHG series

A-NHG Series offers an endurance up to 105°C 2000h. Wide voltage range (from 6.3V to 450V) with AEC-Q200 compliant (up to 100V).

A-GA series

A-GA Series offers an endurance up to 105°C 1000h. Max. height is 7mm with voltage range from 10V to 50V.

A-M series

A-M Series is standard product for category range up to 85°C with 2000h endurance. A wide voltage range is available from 6.3V to 450V.

A-KA series

A-KA Series offers an endurance of 85°C 1000h. Max. height is 7mm with voltage range from 10V to 50V.

A-KS series

A-KS Series offers an endurance of 85°C 1000h. Max. height is 5mm with voltage range from 4V to 50V.

Download our promotion documents

Name File type Size Date Language
PDF AEC-Q200 Passive Components Selection Guide.pdf Flyer 3 MB 03.05.2022 English
PDF Products Catalog (Radial Lead Type Aluminum Electrolytic) Catalog 5 MB 04.06.2025 English
PDF Panasonic Aluminium Electrolytic portfolio in SMD and THT Flyer 183 KB 08.04.2024 English

Find the optimal product for your project by selecting attributes and filter criteria
Go to product finder

Design support for capacitors

Simulation data libraries
Tools

Simulation data libraries

Equivalent circuit models and S-parameter data can be downloaded for each individual item.
Characteristic viewer
Tools

Characteristic viewer

This tool presents various characteristics of a selected part using a graph of the operating frequency, temperature etc.
CAD data
CAD

CAD data

CAD data can be download. (3D STEP, 3D PDF)
Capacitor selection tool
Tools

Capacitor selection tool

Download the tool here, which displays the characteristics, like ESR, ripple current, capacitance, needed for a capacitor and an automated selection.
LC simulator
Tools

LC simulator

Simulates attenuation requirements when configuring an LC filter using a power inductor and aluminium electrolytic capacitors.
Cross reference search by part number
Tools

Cross reference search by part number

Searching part numbers to find alternatives from Panasonic Industry Design support for inductors
Hybrid/Aluminum Electrolytic Capacitor estimated lifetime calculation tool
Tools

Hybrid/Aluminum Electrolytic Capacitor estimated lifetime calculation tool

The capacitor life estimation tool simulates the expected lifespan of a capacitor based on input parameters such as operating hours, temperature, and other factors.
Film capacitor estimated lifetime calculation tool
Tools

Film capacitor estimated lifetime calculation tool

The capacitor life calculation tool simulates the estimated lifespan of a capacitor based on input parameters such as operating voltage, wall surface temperature, and more.
