HL-G1 Series

Panasonic has developed and produced laser distance sensors for more than 20 years. Using our well established triangulation method and state-of-the-art laser technology, our sensors are able to handle high resolution measurement regardless of background color and surface conditions. Although HL-G1 boasts features and performance indicative of high-end laser sensors, its price is that of a middle-class laser sensor. Such high-end features include:

  • a resolution of 0.5µm
  • an integrated display for monitoring measurement results, status and settings
  • 3 transistor outputs, 2 analog outputs and serial output (high-functionality type)
  • a new CMOS receiving element that has revolutionized high accuracy

Options:

  • Cables 2m, 5m, 10m, 20m
Product Finder

Use the Product Finder to find the best product for you

product finder Panasonic Industry
Find the optimal product for your project by selecting attributes and filter criteria

Applications

Sensors Measurement HL-G1 applications Panasonic Industry

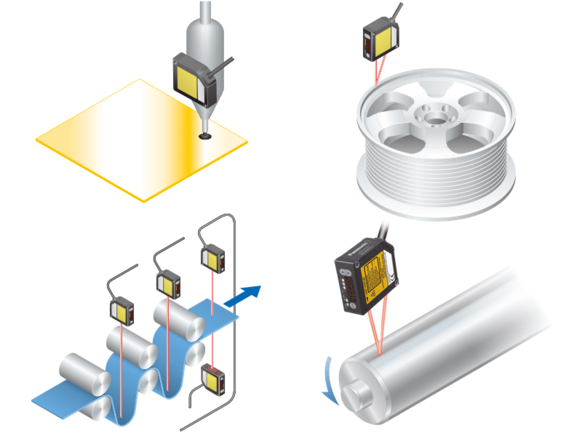

  • Control of dispenser height
  • Detection of aluminum wheel grooves
  • Measuring sheet slack and thickness
  • Measuring the eccentricity of a metal shaft
