DPC-L100/DPH-L100 pressure sensor

DPH-L100 - miniature pressure sensor head.

DPH-L100 - miniature pressure sensor head

Using the DPH-L100 series' sensor heads, pressure of gas or liquids can be measured. To accommodate a wide range of applications, the housing is made of stainless steel. Depending on the type chosen, the series covers a pressure range from -1bar (vacuum) to +500bar. To cope with various circumstances, the controller is separated from the pressure sensor. For processing the signal, the sensor heads offer an analog output; the processing itself can be carried out either by the optional DPC-L100 controller or a PLC.

Characteristics:

  • Oil-less diaphragm made of stainless steel 1.4542
  • Housing made of stainless steel
  • Pressure range up to 500bar
  • Controller unit for basic monitoring tasks
  • Type for combination of negative and positive pressure
  • Reference point function (via external input on the controller)

DPC-L100 controller

The DPC-L100 controller possesses a 12-segment dual display. For convenient analysis of pressure values, the DPC-L100 controller offers a variety of functions such as window comparator mode, hysteresis mode and control output. Moreover, tests for leak tightness can be carried out by using an input signal. Current or voltage output are available for the analog output.

Characteristics:

  • Miniature design
  • Three-color dual display
  • Freely definable response times (0.5ms to 5s)
  • Copy function
  • Remote zero-adjustment function (leak tightness test)
  • Hysteresis mode and window comparator mode
  • Two limit values can be set with a control output and normally open (NO)/normally closed (NC) switchover function
  • Connector
  • Eco mode
  • Accessories: mounting bracket and panel mounting bracket
Product Finder

Use the Product Finder to find the best product for you

product finder Panasonic Industry
Find the optimal product for your project by selecting attributes and filter criteria

Applications

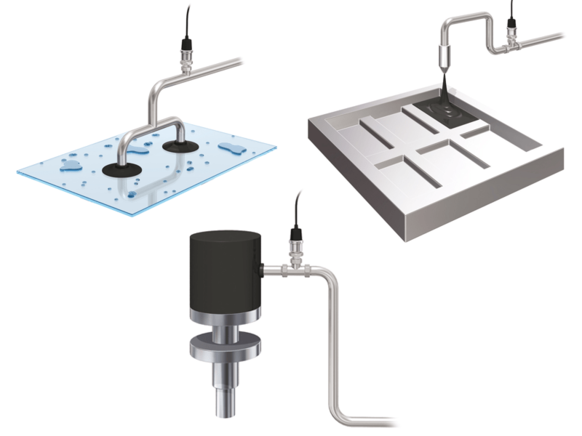

Sensors DPC-L100 / DPH-L100 pressure applications Panasonic Industry
  • Transport of glass sheets after washing (pressurized air containing water droplets)
  • Management of plastic filling machine pressure (pressurized fluid)
  • Management of press pressure (pressurized oil)
