Cost effective WiFi 6: PAN W602 Series – Coming Soon
Product Information
The PAN W602-1 is a single band 2.4 GHz companion module with integrated Bluetooth Low Energy (LE) for cost-effective projects and is based on the chipset CC3301 from Texas Instruments.
The PAN W602-2 is a dual band 2.4 & 5 GHz companion module with integrated Bluetooth Low Energy (LE) for projects which require more data rates or less interferences and is based on the chipset CC3351 from Texas Instruments.
The companion modules connects via SDIO or SPI for Wi-Fi and HS UART or SPI for Bluetooth to any Linux or FreeRTOS driven host platform to enable seamless wireless communication.

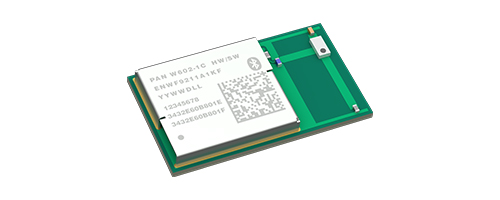

In a compact form factor the module either comes with an integrated chip antenna or the option to connect an external antenna via the bottom pad. The solution is targeted to be certified for CE RED, FCC, ISED, MIC and RCM.
Performance characteristics
|
Item |
Performance characteristics (Preliminary Informations) |
|
|
|
PAN W602-1 |
PAN W602-2 |
|
RF category |
Wi-Fi® 6 (802.11 b/g/n/ax) & Bluetooth® 5.4 (LE) |
|
|
Frequency [GHz] |
2.4 |
2.4 & 5 |
|
Integrated IC |
CC3301 |
CC3351 |
|
Software |
Linux / Android / selected MCUs |
|
|
Antenna option |

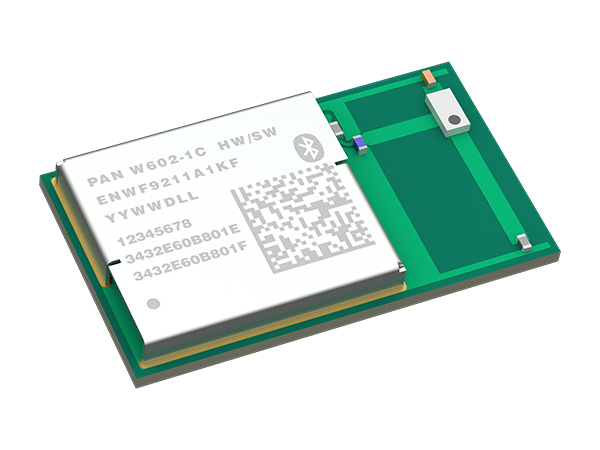

Integrated chip (PAN W602-1C) |
Integrated chip (PAN W602-2C) |
|
Ext. certified antenna types |
(Flex)PCB / Terminal* |
|
|
Planned Certification |
CE RED, FCC, ISED, MIC, RCM* |
|
|
Operating temperature [°C] |
-40 to +85 |
|
|
Host Interfaces |
WiFi: SDIO, SPI |
|
|
Size [mm] |

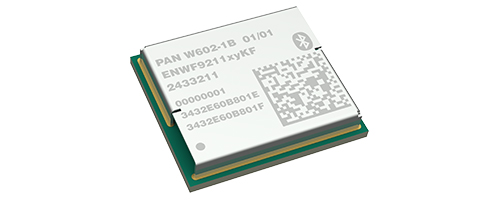

8.8 x 10 x 1.8 (PAN W602-1B)* |
8.8 x 10 x 1.8 (PAN W602-2B)* |
|
Production status |
In Development |
In Development |
*subject to change
Timeline
|
Item |
Performance characteristics (Preliminary Informations) |
|
|
|
PAN W602-1 |
PAN W602-2 |
|
M.2 Key-E Card for Evaluation |
Q4 / 2024 |
Q1 / 2025 |
|
Samples |
Q4 / 2024 |
Q1 / 2025 |
|
Mass production |
H2 / 2025 |
H2 / 2026 |
