MEMS pressure sensors with/without amplification and compensation

Panasonic relative gauge pressure sensors combine small size and high overall accuracy for a wide range of industrial, medical and consumer applications

Our product lines

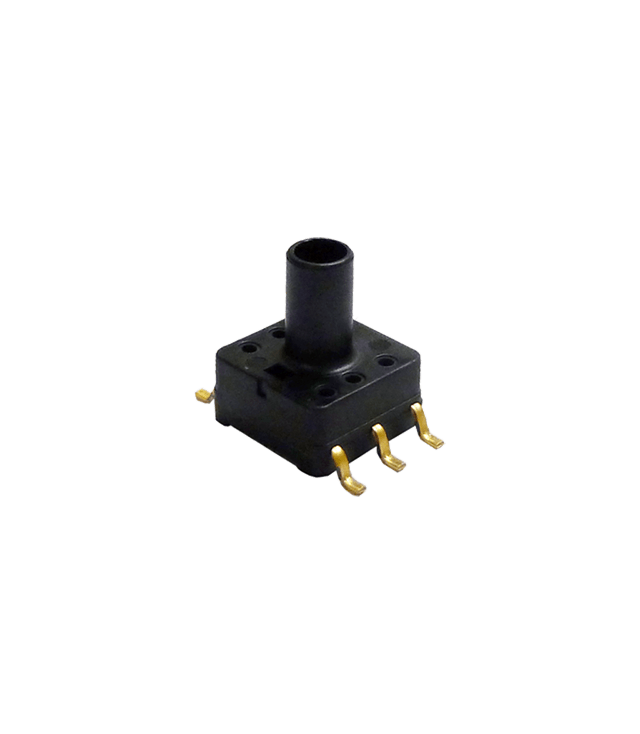

PS-A series
Pressure sensors

PS-A series

Relative pressure sensors with built-in amplification and temperature compensating. Rated pressure from 6kPa up to 1MPa.

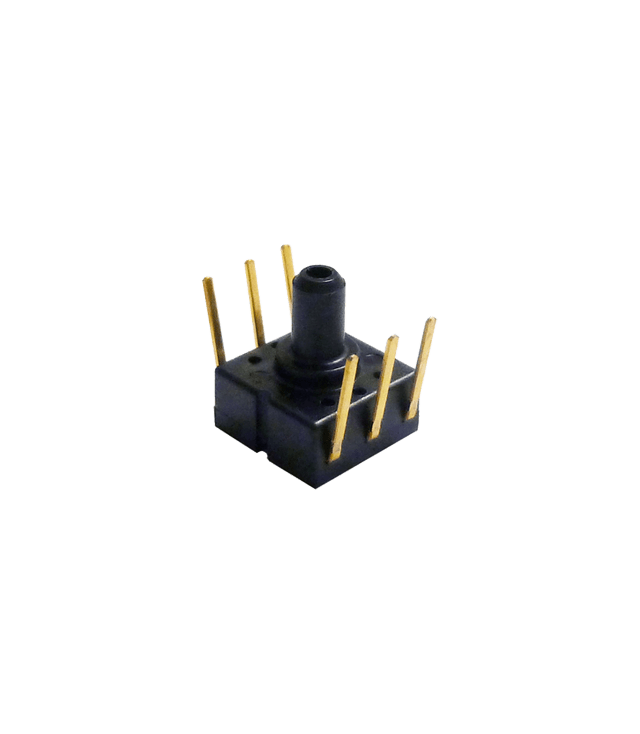

PS series
Pressure sensors

PS series

Miniaturized MEMS relative pressure sensors without amplification circuit. Rated pressure from 4.9kPa up to 980.7 kPa.
PF series
Pressure sensors

PF series

MEMS relative pressure sensors without amplification circuit. Rated pressure from 4.9kPa up to 980.7 kPa.

Highly accurate, linear characteristics

Sensor pressure output-voltage Panasonic Industry

This sensor employs a semiconductor strain gauge method, ensuring accurate and linear detection characteristics.

It also has excellent repeatability of pressure characteristics.

Applications

Industrial

  • Pressure switches and pneumatic components
  • Compressed air pressure measuring devices and airbeds
  • Air pressure control (Clean rooms and separate rooms for smokers)

Medical

  • Blood pressure meters
  • Oxygen generator and airbeds

Appliances

  • Water level detection for household appliances (e.g. washing machines, dishwashers)
