Matter - made easy by Panasonic

Panasonic Industry's Product and Services Portfolio

Building a unified, standards based, interoperable smart home

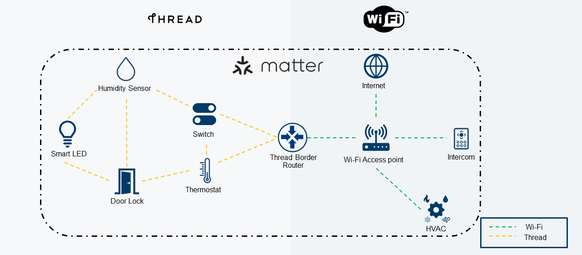

Matter Network

    Matter is an industry-led application layer standard that drives convergence across today's many different fragmented IoT Ecosystems. By complying with Matter standard , developers build devices that can connect reliably and securely to many major IoT ecosystems. Built by major brands through a collaborative effort under the aegis of Connectivity Standards Alliance, Matter is an open-source, royalty free standard that leverages IP based communication over market-proven technologies like Wi-Fi and Thread.

    As a collaborative standard, major and minor stakeholders work together in CSA to bring new revisions and additions to the Matter specification, which is then released iteratively as an incremented version. Matter 1.3 is the latest version of the specification, and can be downloaded from CSA. Matter 1.3 has included nearly 50 device types that broadly cover Energy Utility, Lighting, Plugs, Actuators, Control Devices, Sensors, Closure Devices (door locks, window covers), HVAC, Media Players, Household Robotic devices, Electric Vehicle Chargers and Home Appliances. The list of supported devices can be consulted in the latest version of the specification.

   Matter has prioritized integrating key technological features that allow Matter products to be reliable, widely interoperable and secure. This helps in creating a common marketplace for smart home devices, and also makes the lives of end customers easy. The stakeholders in development of Matter standard include: on one hand the end customer; and on the other hand the whole device vendor ecosystem, which consequently includes companies specialized in wireless connectivity, IoT security, device certifications, etc.

Connectivity by Panasonic Industry

PAN9019/A: Dual band Wi-Fi 6, Bluetooth and 802.15.4

Ideal choice for implementing Matter over Wi-Fi and Open Thread Border Routers
Discover More
PAN9019
Connected by Panasonic Industry

PAN-B511-1x- Coming Soon

PAN B511-1x is Panasonic's next gen Bluetooth 5.4 Module, with special variants for Matter projects.
Discover More
PANB511_1C
Matter_Certificate_services_Header-v2

PAN-MaX - Matter Certificate Service

A unique service that focuses on faciltating production of Matter devices
Learn More
PAN-MaX Large Logo

Matter over Thread devices

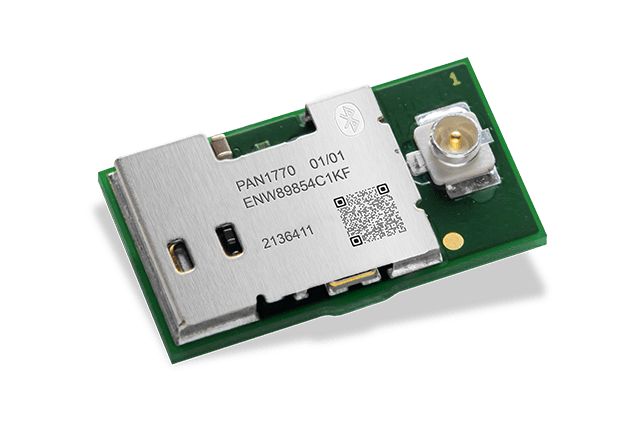

PAN1770
Bluetooth Low Energy modules

PAN1770 (nRF52840)

Bluetooth® 5.3, IEEE® 802.15.4 & NFC: The PAN1770 offers the possibility to connect an external antenna via the uFL connector in radio unfriendly enclosure scenarios.
Wireless PAN1780 Bluetooth Low Energy Panasonic Industry
Bluetooth Low Energy modules

PAN1780 (nRF52840)

Bluetooth® 5.3, IEEE® 802.15.4 & NFC: The PAN1780 offers high design flexibility at high performance with its ARM Cortex-M4F, 1MB Flash and 256kB RAM.
wireless connectivity bluetooth-low-energy PAN1783 module
Bluetooth Low Energy

LE Audio/Dual Cortex MCU: PAN1783

The PAN1783 is a Bluetooth 5.3 Low Energy (LE) module based on the Nordic nRF5340 single chip controller featuring isochronous channels and LE audio.
wireless connectivity wi-fi-6 PAN9019 module
Wi-Fi modules

PAN9019/A (IW611/ IW612)

The PAN9019 is a dual band 2.4 GHz / 5 GHz Wi-Fi 6 hosted module with integrated Bluetooth BDR/EDR/Low Energy (LE) and optionally 802.15.4 radio (PAN9019A Variant).

Matter over Wi-Fi devices

ENWF90xAxEF_PAN9028
Wi-Fi modules

PAN9028 (88W8987)

Wi-Fi® 5 2.4/5.0 GHz Dual Band + Bluetooth® 5.2 Combo Module enabling very high data rates & specifically designed for highly integrated applications
wireless connectivity wi-fi-6 PAN9019 module
Wi-Fi modules

PAN9019/A (IW611/ IW612)

The PAN9019 is a dual band 2.4 GHz / 5 GHz Wi-Fi 6 hosted module with integrated Bluetooth BDR/EDR/Low Energy (LE) and optionally 802.15.4 radio (PAN9019A Variant).

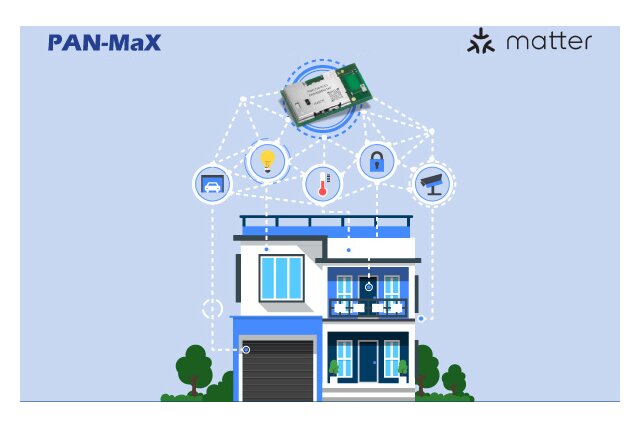

Matter Certificate Service

Teaser
Matter Certificate Service

PAN-MaX

PAN-MaX is a Matter certificate injection service aimed simplifying production of Matter ready products. It enables programming device firmware incl. PAI certificate and certificate declaration on compatible wireless module during production in Panasonic’s European production facility.

Downloads

Name File type Size Date Language
PDF Matter Modules Flyer Flyer 2MB 13.06.2023 English
PDF Wireless Connectivity Product Leaflet Flyer, Leaflet 841KB 04.04.2024 English
PDF Wireless Connectivity_Matter Certificate Service Flyer 24.pdf Flyer 872KB English
