Aluminium electrolytic capacitors (surface mount type)

With 30 series to choose from, there's a Panasonic SMD aluminium electrolytic (lytic) capacitor for every application.

Aluminium electrolytic capacitors (surface mount type)

As a worldwide leader in capacitor products, Panasonic provides the best selection of surface mount aluminum electrolytic capacitors, featuring high reliability, long life, low impedance and high ripple current. Almost 30 series to choose from, there's a Panasonic SMD 'lytic' capacitor for every application.

Surface mount type line-up (Electrolytic)

Type	Series	Datasheet	High temperature guarantee	Rated voltage range (V)	Capacitance range (µF)	Size [øxL] (mm)	AEC-Q200	Features
TCU	TCU-V (High temp. reflow)	Download	125°C/3000h	10 to 35	220 to 680	8x10.2 to 10x10.2	Compliant	Minaturized (TP comparison) High temp. Reflow
TC	TC-V (High temp. reflow)	Download	125°C/3000h	10 to 35	47 to 470	6.3x7.7 to 10x10.2	Compliant	High ripple current (TP comparison) High temp. Reflow
TQ	TQ-V (High temp. reflow)	Download	125°C/2000h	35	47 to 100	6.3x7.7	Compliant	Minaturized (TK comparison) Low ESR (TP comparison) High temp. Reflow
TP	TP-V (High temp. reflow)	Download	125°C/2000 to 3000h	10 to 35	47 to 470	6.3x7.7 to 10x10.2	Compliant	Low ESR (TK comparison) High temp. Reflow
TP	TP-V Medium-size (High temp. reflow)	Download	125°C/3000 to 4000h	25 to 80	390 to 3300	16x16.5 to 18x21.5	Compliant	Low ESR (TK comparison) High temp. Reflow Medium-size
TK	TK-V	Download	125°C/3000h	10 to 35	47 to 470	8x10.2 to 10x10.2	Compliant	Low ESR & long life (TG comparison)
TK	TK-V Medium-size (High temp. reflow)	Download	125°C/2000h	10 to 100	47 to 4700	12.5x13.5 to 18x16.5	Compliant	Low ESR & long life (TG comparison) High temp. Reflow Medium-size
TG	TG-V	Download	125°C/1000 to 2000h	10 to 100	10 to 4700	8x6.2 to 18x16.5	Compliant	125°C standard
FH	FH-V[HF] (High temp. reflow) NEW	Download	105℃/7000 to 10000h	6.3 to 100	10 to 680	6.3x7.7 to 10x10.2	Compliant	Long life (FK comparison) High temp. reflow Halogen-free
FKS	FKS-V (Standard/High temp. reflow)	Download	105°C/2000h	6.3 to 100	10 to 1800	4x5.8 to 10x10.2	Compliant	Minaturized (FK comparison) Standard/High temp. Reflow
FKS	FKS-V Medium-size (High temp. reflow)	Download	105°C/5000h	6.3 to 35	750 to 13000	12.5x13.5 to 18x21.5	Compliant	Minaturized (FK comparison) High temp. Reflow Medium-size
FN	FN-V (Standard/High temp. reflow) NEW	Download	105°C/2000h	6.3 to 100	10 to 1800	4x5.8 to 10x10.2	Compliant	FK+FKS Standard/High temp. Reflow
FT	FT-V (High temp. reflow)	Download	105°C/2000 to 5000h	6.3 to 50	10 to 2200	4x5.8 to 10x10.2	Compliant	Minaturized (FK comparison) High temp. Reflow
FP	FP-V (High temp. reflow)	Download	105°C/2000h	6.3 to 50	10 to 1800	4x5.8 to 10x10.2	Compliant	Low ESR (FK comparison) High temp. Reflow
FK	FK-V	Download	105°C/2000 to 5000h	6.3 to 100	3.3 to 6800	4x5.8 to 18x16.5	Compliant	Low impedance & miniaturized (FC comparison)
	FK-V (High temp. reflow)	Download	105°C/2000h	6.3 to 35	4.7 to 1500	4x5.8 to 10x10.2	Compliant	Low impedance & miniaturized (FC comparison) High temp. Reflow
	FK-V Medium-size (High temp. reflow)	Download	105°C/5000h	6.3 to 100	47 to 6800	12.5x13.5 to 18x16.5	Compliant	Low impedance & miniaturized (FC comparison) High temp. Reflow Medium-size
FC	FC-V	Download	105°C/1000h	6.3 to 50	1 to 1500	4x5.4 to 10x10.2	Compliant	Low impedance (HA comparison)
FC	FC-V (High temp. reflow)	Download	105°C/1000h	6.3 to 35	1 to 1500	4x5.4 to 10x10.2	Compliant	Low impedance (HA comparison) High temp. Reflow
HA	HA-V	Download	105°C/1000h	6.3 to 100	1 to 1500	4x5.4 to 10x10.2	Compliant	105°C standard
HA	HA-V (High temp. reflow)	Download	105°C/1000h	6.3 to 50	1 to 1500	4x5.4 to 10x10.2	Compliant	105°C standard High temp. Reflow
HB	HB-V	Download	105°C/2000h	4 to 50	1 to 470	4x5.8 to 10x10.2	Compliant	Long life (HA comparison)
HB	HB-V (High temp. reflow)	Download	105°C/2000h	6.3 to 50	1 to 1500	4x5.8 to 10x10.2	Compliant	Long life (HA comparison) High temp. Reflow
HC	HC-V	Download	105°C/3000 to 5000h	6.3 to 50	1 to 1000	4x5.8 to 10x10.2	Compliant	Long life (HB comparison)
HD	HD-V (High temp. reflow)	Download	105°C/5000h	6.3 to 100	1 to 1000	4x5.8 to 10x10.2	Compliant	Long life (HC comparison) High temp. reflow
HD	HD-V Medium-size (High temp. reflow)	Download	105°C/5000h	6.3 to 35	680 to 7500	12.5x13.5 to 18x16.5	Compliant	Long life (HC comparison) High temp. Reflow Medium-size
EB	EB-V	Download	105°C/3000 to 5000h	160 to 450	2.2 to 100	10x13.5 to 18x21.5	-	High voltage
S	S-V	Download	85°C/2000h	4 to 100	1 to 1500	4x5.4 to 10x10.2	Compliant	85°C standard
S	S-V (High temp. reflow)	Download	85°C/1000 to 2000h	6.3 to 50	1 to 1500	4x5.4 to 10x10.2	Compliant	85°C standard High temp. reflow

Our top products

Lytic capacitors - SMD

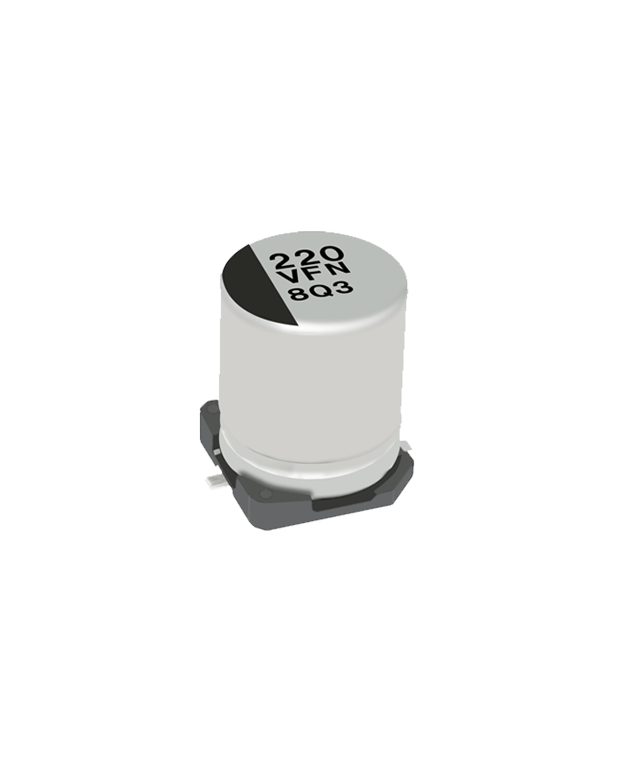

FN series

The new FN Series aluminium electrolytic capacitors offer smaller case size with higher capacitance. Vibration-proof product is available upon request

Lytic capacitors - SMD

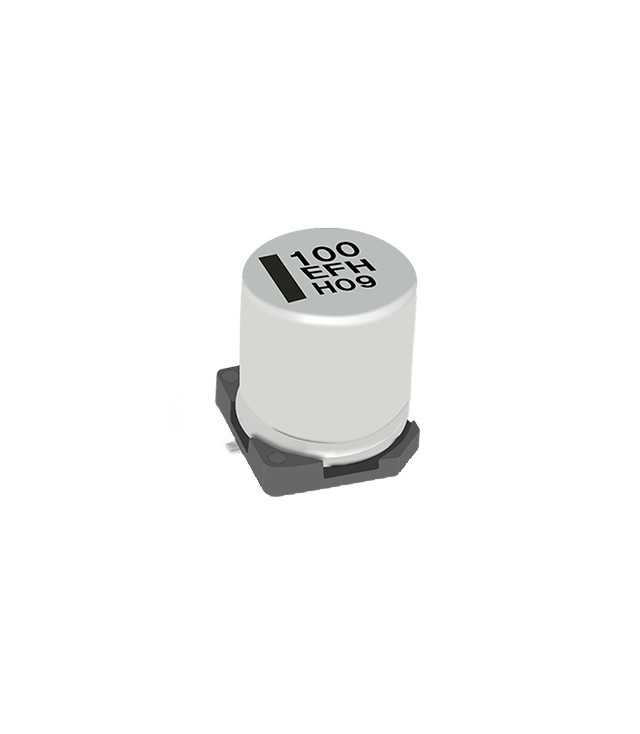

FH series

The FH Series aluminium electrolytic capacitors offer an extremely long lifetime (105°C 10000h) with the highest capacitance values in the market.

Lytic capacitors - SMD

FKS series

FKS Series aluminium electrolytic capacitors offer an endurance specification of 105°C up to 5000h. 20 to 80% higher capacitance compared with FK.

Lytic capacitors - SMD

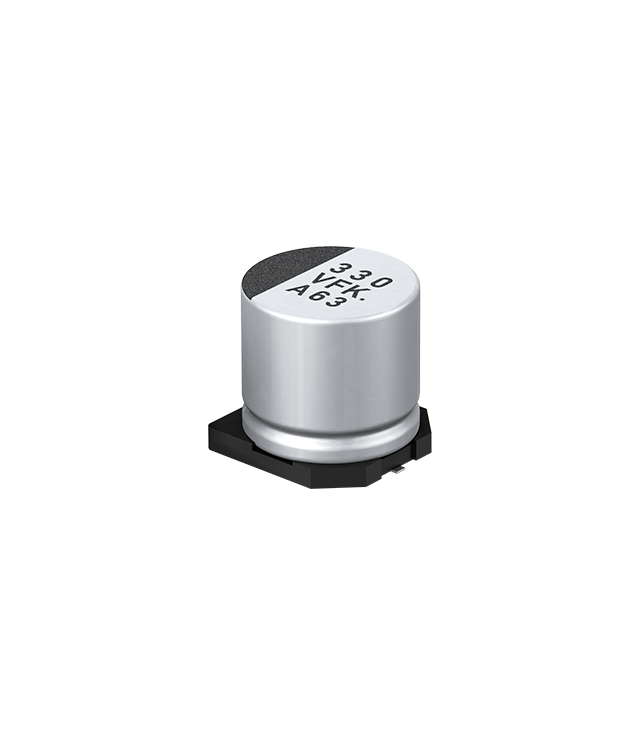

FK series

FK aluminium electrolytic capacitors offer an endurance specification of 105°C up to 5000h. FK offers a very low impedance in a miniaturized body.

More available product lines

FC series

FC Series aluminium electrolytic capacitors offer an endurance specification of 105°C up to 1000h. Low impedance.

FP series

FP Series aluminium electrolytic capacitors offer an endurance specification of 105°C up to 2000h. FP series offers a low impedance.

FT series

FT Series aluminium electrolytic capacitors offer an endurance specification of 105°C up to 5000h. FT series offers a very low ESR.

HA series

HA Series aluminium electrolytic capacitors offer an endurance specification of 105°C up to 1000h. Vibration-proof product is available upon request.

HB series

HB Series aluminium electrolytic capacitors offer an endurance specification of 105°C up to 2000h. Vibration-proof product is available upon request.

HD series

HD Series aluminium electrolytic capacitors offer an endurance specification of 105°C up to 5000h. Vibration-proof product is available upon request.

TG series

TG Series aluminium electrolytic capacitors offer an endurance specification of 125°C up to 2000h. Miniaturization of 40% compared with TA series.

TK series

TK Series aluminium electrolytic capacitors offer an endurance specification of 125°C up to 2000h. AEC-Q200 compliant and low ESR.

TP series

TP Series aluminium electrolytic capacitors offer an endurance specification of 125°C up to 3000h. Low ESR, large capacitance and automotive suitable.

TC series

TC Series aluminium electrolytic capacitors offer an endurance specification of 125°C up to 3000h.High ripple current (50% higher than TP series).

TCU series

TCU Series aluminium electrolytic capacitors offer an endurance specification of 125°C up to 3000h. Miniaturization up to 40% compared with TP series.

TQ series

TQ Series aluminium electrolytic capacitors offer an endurance specification of 125°C up to 2000h. AEC-Q200 compliant and very low ESR.

EB series

EB Series aluminium electrolytic capacitors offer an endurance specification of 105°C up to 5000h. Voltage up to 450V and capacitance up to 100uF.

V-S series

S Series aluminium electrolytic capacitors offer an endurance specification of 85°C up to 2000h. Capacitance up to 1500uF.

Download our promotion documents

expand / collapse

Catalog

Name	Size	Date	Language
Products Catalog (Surface Mount Type Aluminum Electrolytic)	18 MB	16.07.2025	English

Fighting card

Name	Size	Date	Language
Aluminum Electrolytic Capacitors SMD Type	557 KB	18.10.2021	English
Aluminum Electrolytic Capacitors SMD Type: FN Series	629 KB	08.07.2024	English
Aluminum Electrolytic Capacitors SMD Type: FH Series	842 KB	08.07.2024	English

Flyer

Name	Size	Date	Language
AEC-Q200 Passive Components Selection Guide.pdf	3 MB	03.05.2022	English
Panasonic Aluminium Electrolytic portfolio in SMD and THT	183 KB	08.04.2024	English
SMD Lytic Capacitor V Chip	1 MB	17.11.2020	English
Panasonic FK Series - Budget-friendly pin-to-pin electrolytic capacitor	934 KB	12.08.2025	English
Panasonic FN Series - Low cost electrolytic capacitor for miniaturization	648 KB	12.08.2025	English
Electrolytic Capacitor: FN Series	648 KB	13.08.2025	English

Find the optimal product for your project by selecting attributes and filter criteria

Go to product finder

Design support for capacitors

Tools

Simulation data libraries

Equivalent circuit models and S-parameter data can be downloaded for each individual item.

Tools

Characteristic viewer

This tool presents various characteristics of a selected part using a graph of the operating frequency, temperature etc.

CAD

CAD data

CAD data can be download. (3D STEP, 3D PDF)

Tools

Capacitor selection tool

Download the tool here, which displays the characteristics, like ESR, ripple current, capacitance, needed for a capacitor and an automated selection.

Tools

LC simulator

Simulates attenuation requirements when configuring an LC filter using a power inductor and aluminium electrolytic capacitors.

Tools

Cross reference search by part number

Searching part numbers to find alternatives from Panasonic Industry Design support for inductors

Tools

Hybrid/Aluminum Electrolytic Capacitor estimated lifetime calculation tool

The capacitor life estimation tool simulates the expected lifespan of a capacitor based on input parameters such as operating hours, temperature, and other factors.

Tools

Film capacitor estimated lifetime calculation tool

The capacitor life calculation tool simulates the estimated lifespan of a capacitor based on input parameters such as operating voltage, wall surface temperature, and more.

Aluminium electrolytic capacitors (surface mount type)
