Automotive 6DoF inertial sensor

For Advanced Driver Assistance Systems (ADAS) and autonomous driving applications, the Panasonic 6DoF inertal sensor provides accurate and reliable acceleration and angular rate data.
sensors 6-in-1 shadow

This sensor contributes to advanced system such as ADAS (Advanced Driver Assistance Systems), autonomous driving, and more, in order to detect 6DoF data which are composed by 3 axis (forward and backward, left and right, up and down) of acceleration(Acc) and gyro data.

Specifications

Item Specification
Size (mm) 4.5ｘ4.5ｘ1.1
Operating temperature (°C) -40°C ～ +125
Storage temperature (°C) -40°C ～ +125
Supply voltage (V) 3.3 ± 0.3, 5
Current consumption (mA) ≦ 10
Interface SPI
Gyro Axis X, Y, Z
Total offset error (dps) ≦ ± 2.0
Total sensitivity error (%) ≦ ± 3.0
Full scale range (dps) ±300, ±150, ± 120, ±60, ±30 (Selectable)
Frequency response (Hz) 10, 12.5, 27, 30, 60 Hz
Cross axis sensitivity (%) ≦ ± 1.7
Output noise ≦ 0.1dps rms (@60 Hz LPF)
Orthgonality (°) ≦ 0.01

Acc Axis X, Y, Z
Total offset error (mg)

≦ ± 50 (X, Y) ≦ ± 84 (Z)
Total sensitivity error (%) ≦ ± 3.0
Full scale range (g) ±16, ±8, ±2, ±1 G (Selectable)
Frequency response (Hz) 10, 46, 60, 250, 300, 400 (Selectable)
Cross axis sensitivity (%) ≦ ± 1.7
Output noise

≦ 4 mg rms (@60Hz LPF)
Orthgonality (°) ≦ 0.01

Automotive use cases

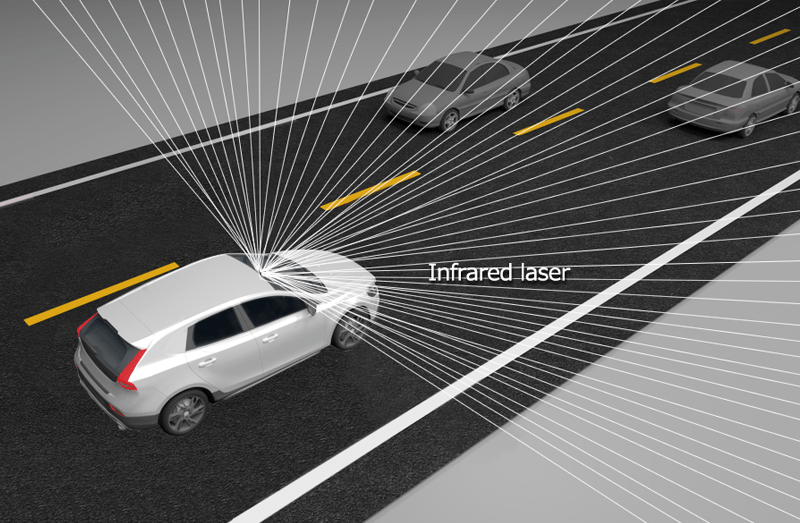

sensor 6in1 LiDAR Panasonic Industry
Use case

LiDAR / RADAR

What are the advantages to use the 6in1 sensor for LiDAR/Radar?

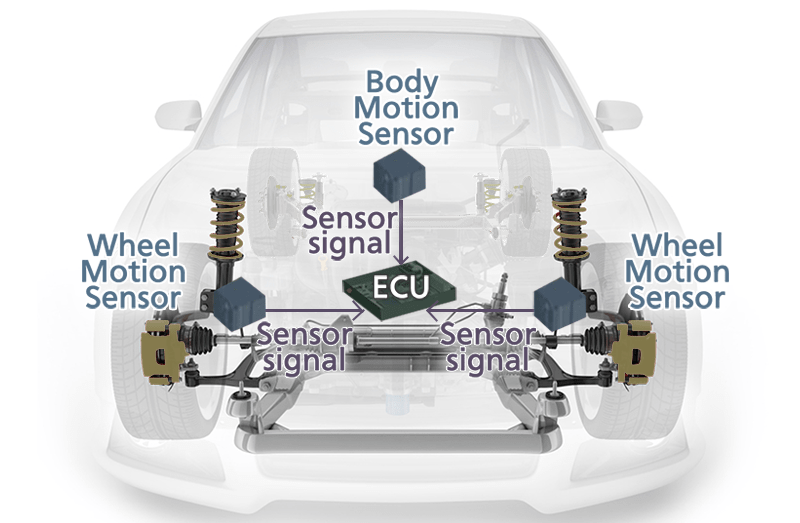

sensor 6in1 Active suspension Panasonic Industry
Use case

Active suspension system

Utilization points of 6in1 sensor in active suspension vibration control.

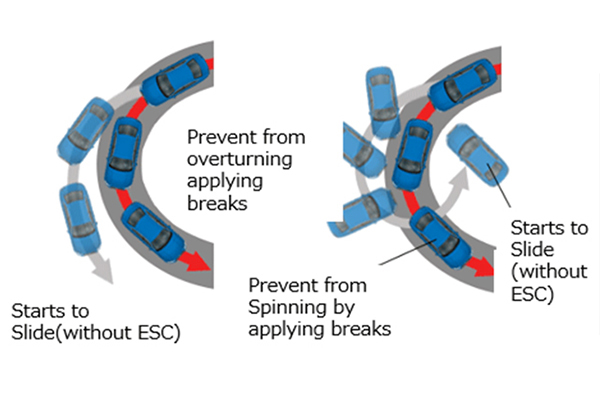

6in1 sensor for Passive safety application VDC (Vehicle Dynamics Control)
Use Case

Passive safety application VDC (Vehicle Dynamics Control)

Application point and adoption effects of the 6in1 sensor for passive safety and VDC.
Sensors to in-vehicle cameras using 6in1 sensor
Use Case

Sensors to in-vehicle cameras

Application points and effects of using a 6in1 sensor for the in-vehicle camera
AR-HUD using 6in1 sensor from Panasonic Industry
Use Case

AR-HUD

About AR-HUD, application points and effects of adopting 6in1 sensors for AR-HUD
Panasonic Industry and Sensible 4 announce research and testing collaboration with new IMU for full self-driving vehicle software
Use case

Panasonic Inertial measurement unit

Joint efforts for a next-gen mobility concept: Finnish autonomous driving software pioneers Sensible 4 and Panasonic Industry collaborate in testing new IMU for full self-driving vehicle software.

Industrial and other use cases

sensor 6in1 agricultural
Use case

Agricultural, construction & bike

Usage of the 6in1 sensor in agricultural and /construction machinery.
Auto Lawnmowers using 6in1 sensor from Panasonic Industry
Use Case

Auto Lawnmowers

Adoption effects of 6in1 sensor to auto lawnmowers

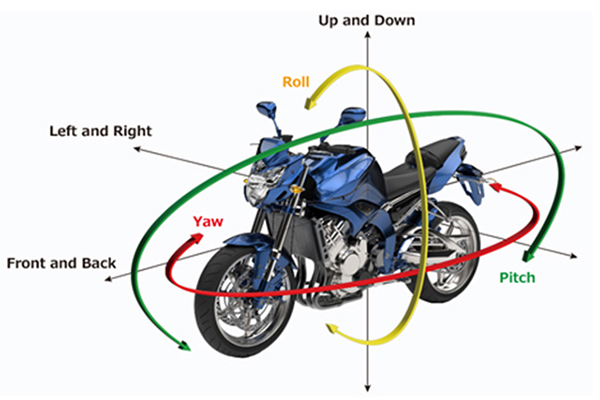

Two-wheeled vehicles using 6in1 sensor from Panasonic Industry
Use Case

Two-wheeled vehicles

Application case in two-wheeled vehicles [6in1 sensor]
Auto-operation Railway System using 6in1 sensor from Panasonic Industry
Use Case

Auto-operation Railway System

Application key points of 6in1 sensors in the auto-operation railway system.

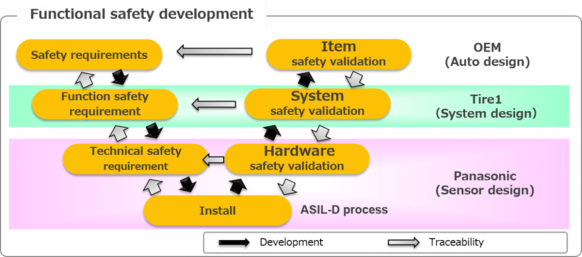

Functional safety compliance for automotive safety system (ISO26262)

sensors 6-in-1 functional-safety Panasonic Industry

Compatible with ASIL-D functional safety development: This sensor complies with ISO26262 according to the user system safety level (ASIL: Automotive Safety Integrity Level), supports the construction of argument by providing necessary documents, and guarantees the quality for automotive applications.

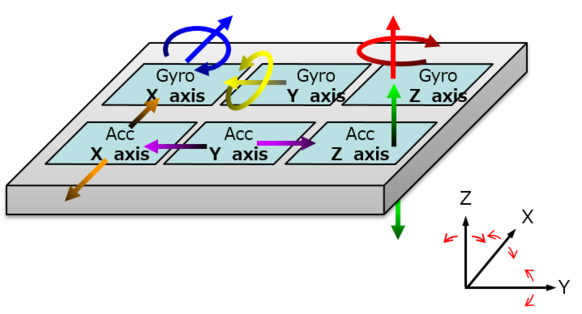

Highly accurate 6DoF MEMS sensors on single die, improving system design flexibility

Sensors 6-in-1 sensor chip-configuration

Orthogonality: ≦0.5° between Gyro and Acc axis

The misalignment between Acc and Gyro axis deteriorates data accuracy because Acc and Gyro sensors are comprised of the multiple chips in the conventional inertial sensor.

6in1 inertial sensor adapts one single chip solution in which all 6 axis of Acc and Gyro sit together.

And all 6 axis are orthogonal and enables high accuracy data in spite of the installation posture.

Compact and simple ECU system design

Sensors 6-in-1 cross-sectional-view

6DoF one package: 4.5 x 4.5 x 1.1 mm

This sensor adapts electrostatic MEMS and encapsulates MEMS and ASIC by wafer level packaging to realize the world compact and low profile 6DoF inertial sensor.

This enables automotive ECU System to be simple and smaller.

  1. Au Wire
  2. Leadframe

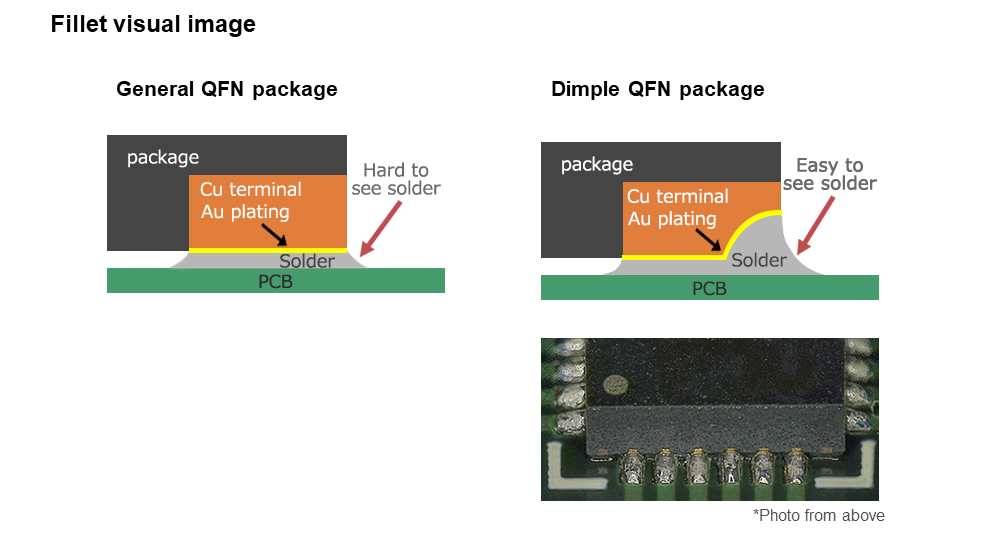

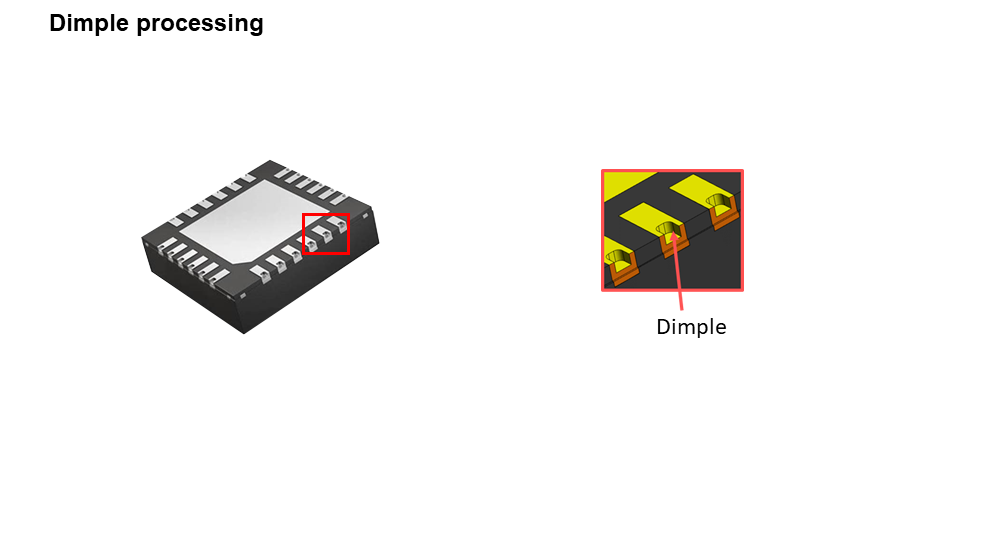

Dimple processing contributes to improved mounting quality

Dimple processing enables soldering fillet visible at the side of lead terminals.

This can confirm each terminal soldering correctly to the substrate land by the fillet visible inspection.

Reliability test condition (AEC-Q100 compliance)

Item Specification
Temperature humidity bias (THB) 85°C / 85% RH / 3.6V / 1000h
High temperature storage life (HTSL) 150°C / 1000h
High temperature operating life (HTOL) 125°C / 3.6V / 1000h
Temperature cycling (TC) -55°C ～ 150°C / 1000 cycles
Mechanical shock (MS) 1500 G / 0.5ms / 5 times for each axis
Variable frequency vibration (VFV) 50 G / 20Hz ～ 2kHz / 4 times for each axis
