Wireless interconnected smoke alarms

Providing safety with voice and LED lighting everywhere in the house

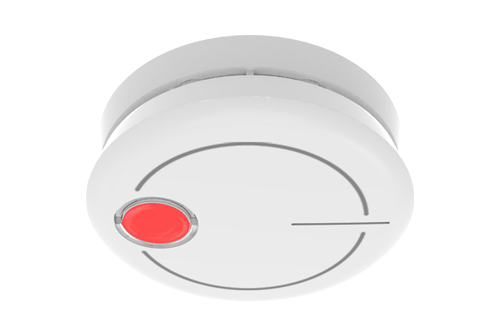

Wireless voice smoke alarm with embedded LED pathfinder for a safer home

  • Smoke alarms in the house are necessary to provide early detection of fires, giving occupants crucial time to evacuate safely. They are essential for protecting lives and property by alerting people to the presence of a fire in its early stages. Additionally, many jurisdictions mandate the installation of smoke alarms in residential buildings to ensure legal compliance and the safety of occupants.
  • Panasonic wireless interconnected smoke alarms alert you to a fire with an audible alarm and voice messages in nine languages.
  • Especially when fire breaks out at night, anxiety and fear make it difficult to make calm decisions. When a fire is detected, an LED lights up. It softly illuminates the surrounding area and supports quick evacuation of all residents.

Important features for a safer home

  • 9 languages available for warning in the event of fire and checking the status of the detector
  • Supports evacuation in the dark with embedded LED light
  • Interconnect up to 15 units to warn all residents about the fire in each room
  • Easy installation and device registration
  • Slim body and compact design

Reliable safety - thanks to interconnection and voice alarm

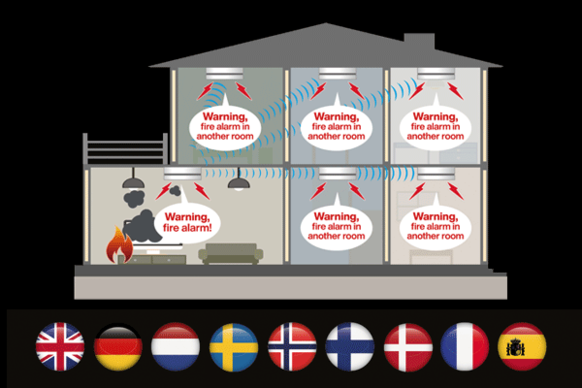

With Panasonic‘s product, when one smoke alarm goes off, then all the other alarms will also go off with different voice messages to warn all the residents about fire. Simply install a smoke alarm in each room and pair each device with the master smoke alarm in one of nine languages.

  • Interconnect up to 15 units
  • Wireless range: 100 meters
  • Audible alarm signal: 85 decibel / 3m
  • Battery life: 10 years

Easy understanding of voice warnings

There are many appliances in a house that beep. As this beeping sounds similar, it is sometimes difficult to find out where the beeping is coming from and what it means. Thanks to the voice alarm function, our smoke alarm gives you a clear statement of what the alarm means for a better support of the residents.

Different voice warning modes

Registration
  • Registration mode
  • Language mode
  • Error
  • Normal mode
Fire accident
  • Warning fire alarm
  • Warning fire alarm in other rooms
Maintenance
  • Check detector
  • No connection
  • Test
Low battery
  • One month prior notice
  • Please check FAQ for details

Dimensions and technical data

Technical data
Detection method optical (photoelectric)
Operating voltage 3V DC (battery)
Alarm indication optical and acoustic
Class of protection  EN 14604:2005
Average lifetime of the Lithium battery at15-20ºC approx. 10 years
Operating temperature range  -10 to+55 °C
Indicator red / green LED
Light guide white LED
Sound pressure level >85 dB(A)/3m
Dimensions (Ø x H) 100 x 31 mm
Mounting hole distance on base 60.0 – 66.7 mm
Housing material/color ABS/white
Wireless range Typically 100m in open air
Detector Life 10 years
CE Approval CE marked

Downloads

Name File type Size Date Language
PDF Smoke alarm - FAQ Manual, FAQs 205 KB 13.09.2024 English
PDF Smoke alarm - Installation instructions Manual, Manual - Installation instruction 1 MB 05.09.2024 English
PDF Smoke alarm - License information Manual, Installation manual 56 KB 06.09.2024 English
PDF Kabellos vernetzte Rauchmelder Flyer 2 MB 10.09.2024 German
PDF Wireless interconnected smoke alarms Flyer 2 MB 06.09.2024 English
PDF Draadloze onderling verbonden rookmelders Flyer 2 MB 10.09.2024 Dutch
