Common mode filters

The common mode noise filter (CMNF) has a wide range lineup, good signal integrity for high bit rate data transmission and a simple multi-layer structure.

Line-up

High speed Differential transmission
(for Mbps)
High speed Differential transmission
(for Gbps)
High speed Differential transmission
(for Gbps)
(USB3.0, HDMI2.0)

EXCX4CE
0605 size [0202 size]
Datasheet

EXC14CE
0806 size [0302 size]
Datasheet



EXC14CG
0806 size [0302 size]
Datasheet

EXCX4CH
0605 size [0202 size]
Datasheet

EXC14CH
0806 size [0302 size]
Datasheet

EXC24CE
1210 size [0504 size]
Datasheet

EXC34CE
2012 size [0805 size]
Datasheet

EXC24CG
1210 size [0504 size]
Datasheet

EXC34CG
2012 size [0805 size]
Datasheet

EXC24CH
1210 size [0504 size]
Datasheet



EXC18CE
Array (2 circuit)
1608 size [0603 size]
Datasheet

EXC28CE
Array (2 circuit)
2010 size [0804 size]
Datasheet

EXC18CG
Array (2 circuit)
1608 size [0603 size]
Datasheet

EXC28CG
Array (2 circuit)
2010 size [0804 size]
Datasheet



EXC28CH
Array (2 circuit)
2010 size [0804 size]
Datasheet


High attenuation
(for Mbps)
High attenuation
(for Gbps)
  High attenuation
(for MIPI C-PHY)

EXCX4CT NRFND
0605 size [0202 size]
Datasheet

EXC14CT
0806 size [0302 size]
Datasheet

EXCX4CZ NEW
0605 size [0202 size]
Datasheet

EXC16CT
0906 Size [0403 Size]
Datasheet


With ESD Suppressor   2 mode Filters
(common and normal mode)
  Signal Harmonics Relaxation
(for Mbps)

EXC14CS NRFND
0806 size [0302 size]
Datasheet

EXC24CS NRFND
1210 size [0504 size]
Datasheet

EXC14CP
Low DCR
0806 size [0302 size]
Datasheet

EXC24CP
Low DCR
1012 size [0405 size]
Datasheet

EXC14CX
0806 size [0302 size]
Datasheet

EXC18CS NRFND
Array(2 circuit)
1608 size [0603 size]
Datasheet



EXC24CB
High impedance
1012 size [0405 size]
Datasheet

EXC24CN
High impedance
+ Low DCR
1012 size [0405 size]
Datasheet

What is the Common Mode Noise Filter (CMNF)?

Noise suppression device used for signal integrity enhancement and common mode noise suppression in differential signal system.

The video provides you with a detailed description of the features of the Common mode Noise Filters and explains how to choose the filter fitting to your needs.

Especially in digital data communication, which has become faster in recent years, measures for eliminating common mode noise are essential - the Common mode Noise Filters are used in such applications.

Features

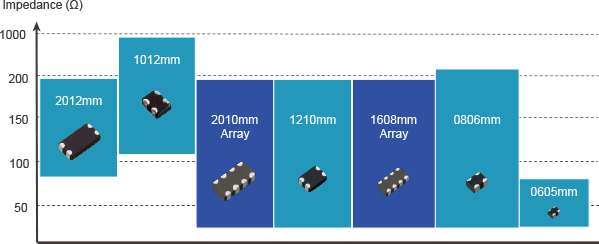

  1. Wide range lineup
    (Small size or Array type) for  common mode noise suppression
  2. Good signal integrity for high bit rate data transmission.
    Wide pass-band for differential signal.
  3. Simple multi-layer structure
    Good durability and mounting reliability

Technology details

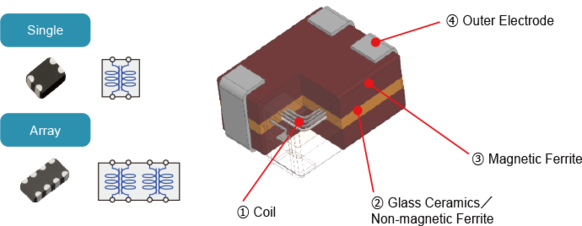

Simple Ceramic multi-layer structure

1. Coil
- Best performance for heat-resistance by pure Ag coil

2. Glass Ceramics/Non-magnetic Ferrite
3. Magnetic Ferrite

- Strong device strength by co-fired Multi-layer structure

4. Outer Electrode
- Good performance to the mounting reliability
- Strong terminal strength by fired termination

Top level component technology for downsizing by multilayer method

1. Coil
TOP level fine pattern in electronic device industry
- Easy for downsizing
- High common mode impedance
- Low DC Resistance

2. Glass Ceramics
Originally developed Low ε glass
- Reduced stray capacitance between coils
- Keep good signal integrity
- Matched characteristic impedance on differential mode signal

3. Magnetic Ferrite
- Attenuate high frequency noise by increasing an attenuation for high frequency noise
- Enhance magnetic coupling by optimize of magnetic-multilayer structure
