Detector switches

Detecting in highest design freedom.
Detector switches shadow

Detector switches

Panasonic`s Detector Switches are unique in design. They are used to “detect” mechanical movements and convert those into electronic signals. “Contact safeness” and “easy design in” are the biggest pro`s for this components. Availability in a variety of shapes, sizes, terminals and push forces, Panasonic’s Switches offer the opportunity to select the perfect Switch for the application.

IMPORTANT NOTE:

The product links below temporarily refer to our global website based in Japan. While we are working to provide the complete product information on this European website, we hope that in the meantime you will benefit from the comprehensive information available on the global website. For any questions, please do not hesitate to contact us.

Our product line-up

Detector switch

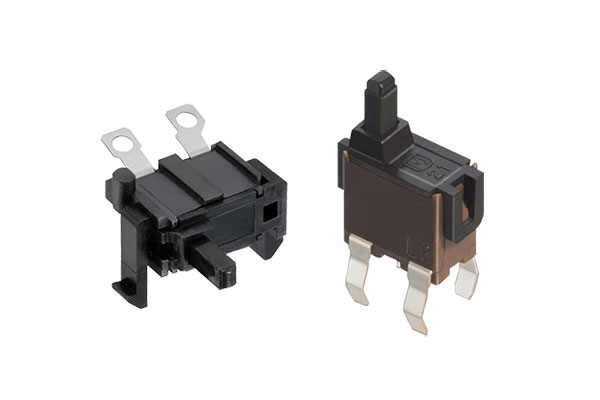

ESE 11

Autom. qual.
Wide range of custom. features including operational directions

Full travel (Pushing distance) [mm]:
1,7(2,4);3,0(2,4);6,1(2,4);6,3(2,4)
Detector switch

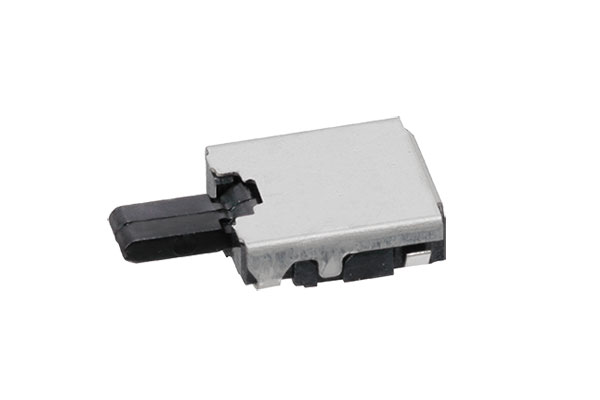

ESE 13

Automotive qualified
Thin Body: 1.2mm

Full travel (Pushing distance) [mm]:
2,15(2,15);3,05(2,05)
Detector switch

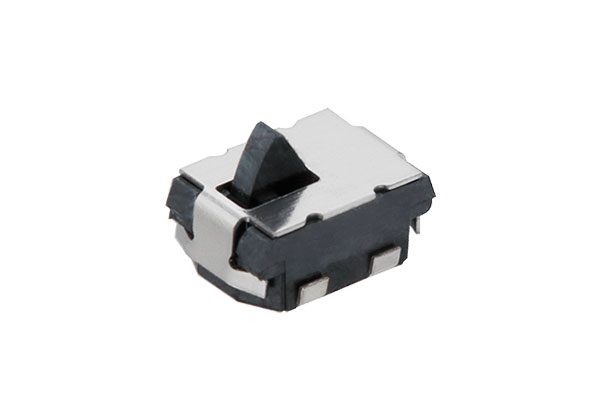

ESE 16

Automotive qualified
Low profile

Full travel (Pushing distance) [mm]:
1,5(1,0)
Detector switch

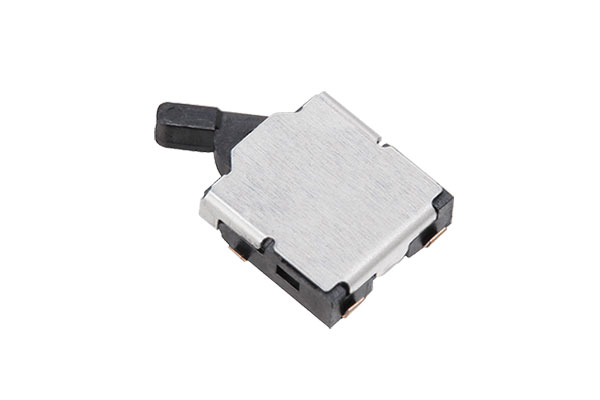

ESE 18

Autom. qual.
Avail. as normal-open and normal-close

Full travel (Pushing distance) [mm]:
with boss 1,4(1,5);1,4(2,15)
without boss 2,1(1,5);2,1(2,15)
Detector switch

ESE 22

Autom. qual.
Can be operated with different actuation angles (horizon. and vertic.)

Full travel (Pushing distance) [mm]:
4,25(2,05);1,2(2,0);0,6(2,0)
Detector switch

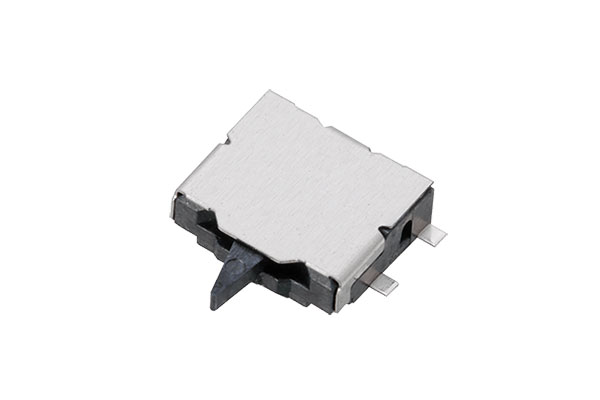

ESE 23

Automotive qualified
Thin bidirectional operation, auto-return type

Full travel (Pushing distance) [mm]:
with boss 1,0(1,5)
without boss 2,2(1,5)
Detector switch

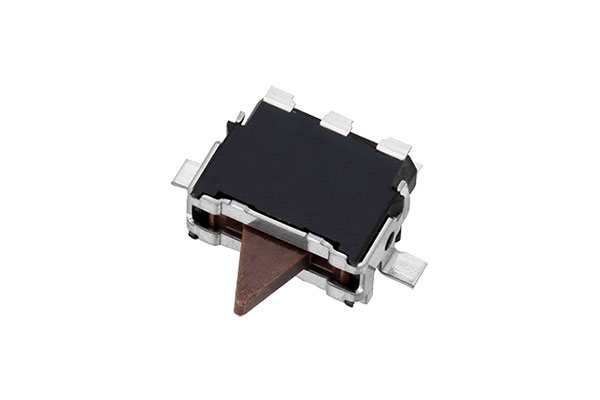

ESE 24

Automotive qualified
Thin bidirectional operation, auto-return type

Full travel (Pushing distance) [mm]:
1,4(2,45) ; 2,6(2,45) ; 6,1(2,45)
Detector switch

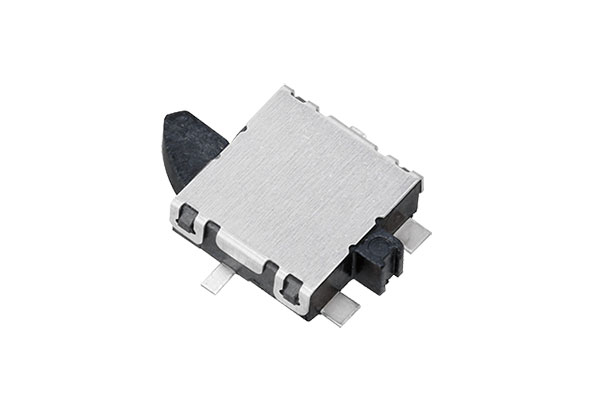

ESE 31

Automotive qualified
Increased the mounting strength
Mounting strength: 80N

Full travel (Pushing distance) [mm]:
3,2(2,15)
Detector switch

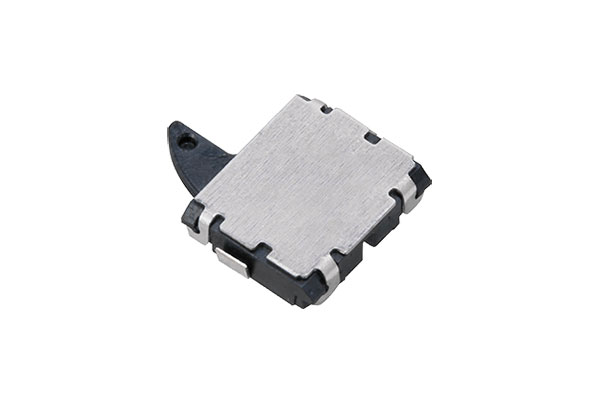

ESE 58

Autom. qual.
Thin Body: 0.9mm
avail. as normal-open and normal-close

Full travel (Pushing distance) [mm]:
with boss 1,5(1,5)
without boss 1,25(1,5)
