Power relays

Easy to use electromechanical relays with switching capacities from 2A up to 120A for mounting directly on a PCB.

Energy-efficient high power switching

A line-up of more than 30 series covers nearly all industrial, building and white goods applications. Including devices that handle ≤120A on a PCB, devices with a low profile of 10mm and slim 6mm slim styles, there is a relay for any requirement. All standard versions feature a low power consumption,but the sophisticated, polarized latching types beat all other switching solutions by offering power consumption down to 0W for both On and Off states.

High power in smallest housings

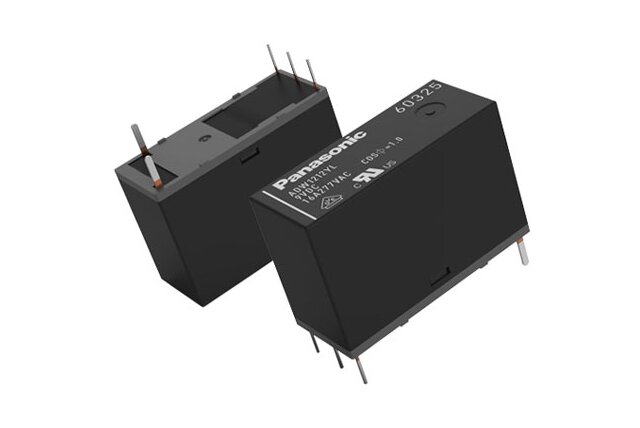

DW-YL relay: high inrush type
Power relays

DW-YL relay: high inrush type

Handling 320A inrush current within a small footprint component.

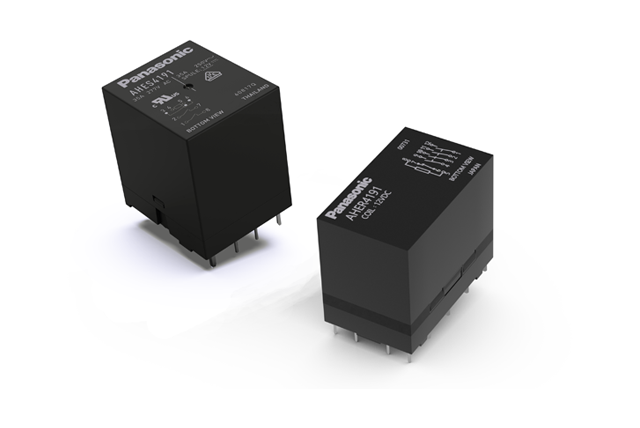

HE-R 40A power relay
Power relays

HE-R 40A power relay

40A PCB Power Relay for 3 phase systems with optional feedback contact – the perfect option for demanding inverter & wallbox designs.

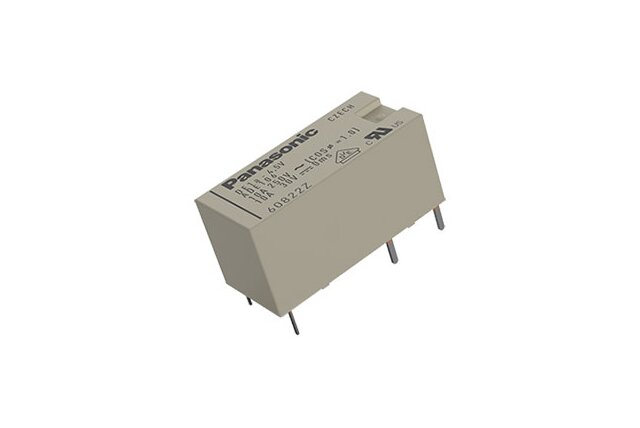

DE relay: smallest 16A relay
Power relays

DE relay: smallest 16A relay

Optimal solution for KNX or 3.6kW smart outlets that require 8mm creepage/clearance (min.).

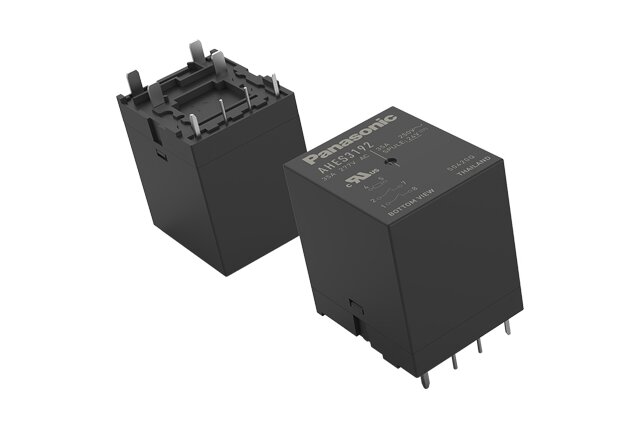

HE-S relay
Power relays

HE-S relay

- 35A, 277V AC - Coil-holding power 170mW - Mirror contact mechanisms according to IEC 60947-4-1

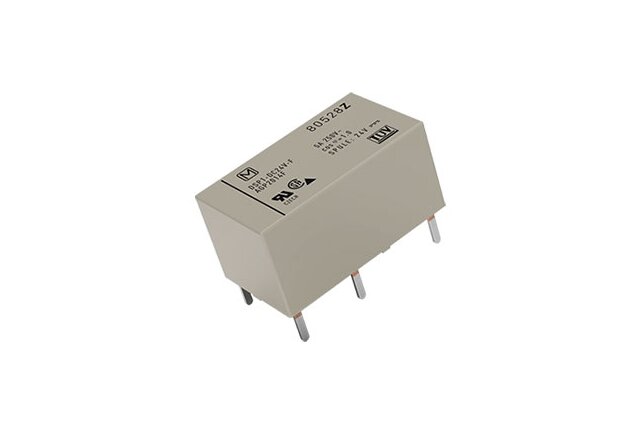

DSP series relay: miniature 8A polarized style
Power relays

DSP series relay: miniature 8A polarized style

This miniature high power relay has a minimum creepage and clearance distance of 3.5mm, and is available with various different contact arrangements.

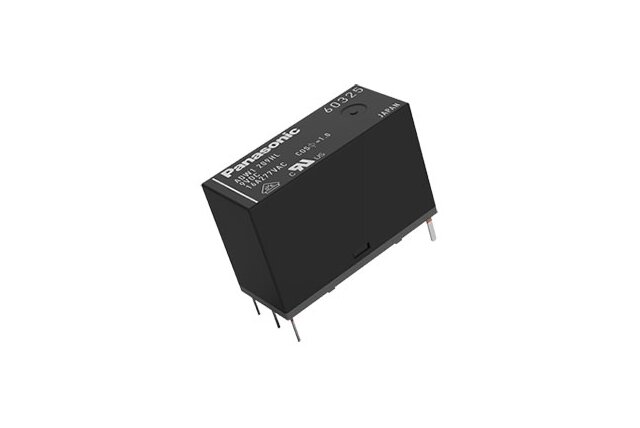

DW series relay: small footprint; maximum possible switching capacity
Power relays

DW series relay: small footprint; maximum possible switching capacity

16A latching relay; excellent characteristics; conforms to EN 60335; pin-in-paste versions available.

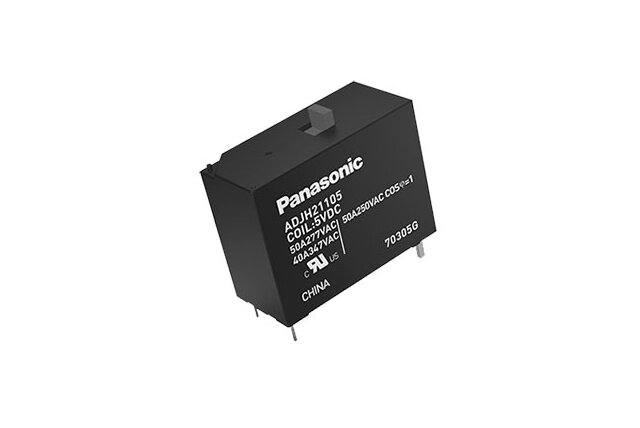

DJ-H relay: high inrush current for smarthome and lighting
Power relays

DJ-H relay: high inrush current for smarthome and lighting

These 1 Form A 50A latching relays are suitable for lighting and motor loads.

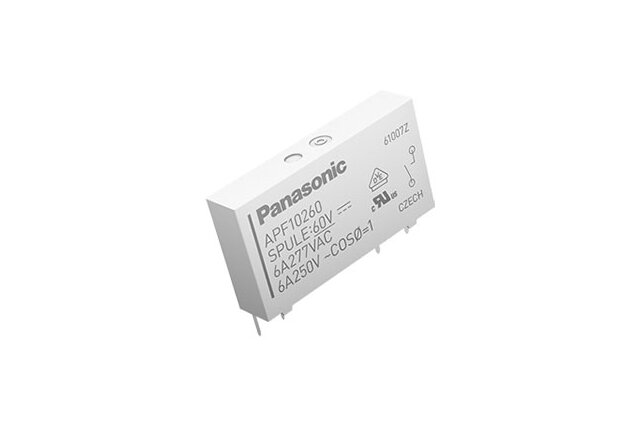

PF relay: slim size; 6A; bent pin type available
Power relays

PF relay: slim size; 6A; bent pin type available

Ideal for space-critical applications. Clearance distance 6.0mm (min.) & creepage distance 8mm (min.)
HE-N series
Power relays

HE-N series

High capacity 120A / 480V AC 1 Form A power relay.
DJ series: 20A latching relay with optional manual test button
Power relays

DJ series: 20A latching relay with optional manual test button

Both flux-resistant and sealed versions available. Compact design with high capacity and low coil power. Creepage and clearance distance 8mm (min.)
ST relay: 8A polarized with high inrush capability
Power relays

ST relay: 8A polarized with high inrush capability

1a1b/2a latching types available. High breakdown voltage. Not suitable for new applications.
S relay: 2a2b/3a1b/4a 4A polarized
Power relays

S relay: 2a2b/3a1b/4a 4A polarized

Multiple contact arrangements for low level loads ≤4A.
DZ-S relay: 1 Form A 90A latching types
Power relays

DZ-S relay: 1 Form A 90A latching types

Excellent characteristics including high insulation, high inrush current capacity (~ 500A). Creepage and clearance distance ≥ 8mm.
JW relay: monostable 10A device with 10kV surge
Power relays

JW relay: monostable 10A device with 10kV surge

1 Form A/1 Form C/2 Form A/2 Form C 5A/10A relays for PSUs. RTIII, creepage and clearance distance of 8mm (min.) between contacts and coil.
JVN relay: low profile 1 Form A 16A; ideal for heater control
Power relays

JVN relay: low profile 1 Form A 16A; ideal for heater control

Compact, low profile relay with small surface area of 16 x 22mm a height of 10.9mm. Conforms to various standards (UL, CSA, TÜV)
LZ relay: low profile (15.7mm) commodity product
Power relays

LZ relay: low profile (15.7mm) commodity product

Ambient temperature ≤105°C with a creepage and clearance distance of 10mm (min.). Both RTII And RTIII are available.
LFG relay: 33A 1 Form A type for solar inverters; contact gap - 1.8mm
Power relays

LFG relay: 33A 1 Form A type for solar inverters; contact gap - 1.8mm

Compact size, high surge withstand voltage and high inrush current.

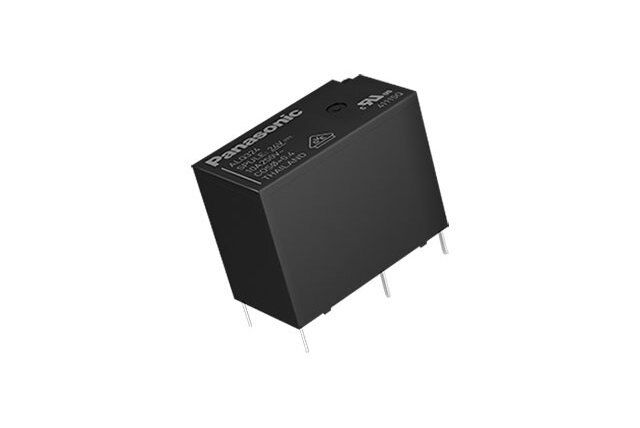

LQ relay: miniature 1 Form A/1 Form C 10A
Power relays

LQ relay: miniature 1 Form A/1 Form C 10A

- Sealed type relay - Very small size - High surge withstand voltage of 8000V - Very low power consumption
LQ relay: miniature 1 Form A/1 Form C 10A
Power relays

LQ relay: miniature 1 Form A/1 Form C 10A

- Sealed type relay
- Very small size
- High surge withstand voltage of 8000V
- Very low power consumption
LZN relay: low profile 1 Form A/1Form C 16A; EN60335-1 GWT-compliant
Power relays

LZN relay: low profile 1 Form A/1Form C 16A; EN60335-1 GWT-compliant

RTII; creepage and clearance distance 10mm (min.); only 15.7mm high.
LDP relay: slim 1 Form A 5A
Power relays

LDP relay: slim 1 Form A 5A

- Only 7mm wide - Low coil power consumption of 200mW - Conforms to IEC 60079-15

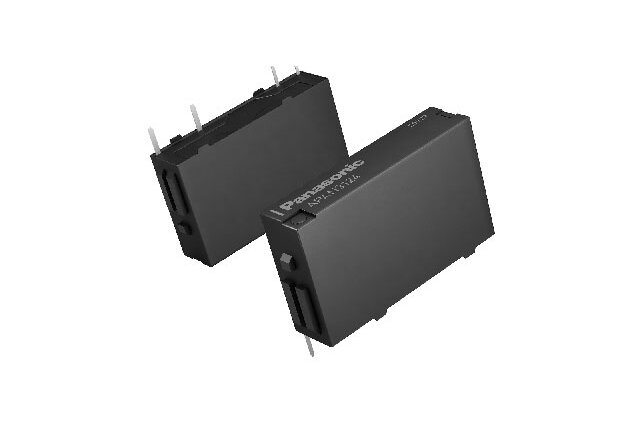

PA-N series: 5A slim device; reinforced insulation to IEC61010
Power relays

PA-N series: 5A slim device; reinforced insulation to IEC61010

Optimized for industrial automation applications such as controls and I/O modules. Conforms to the ANSI/ISA 12.12.01 standard for hazardous locations.

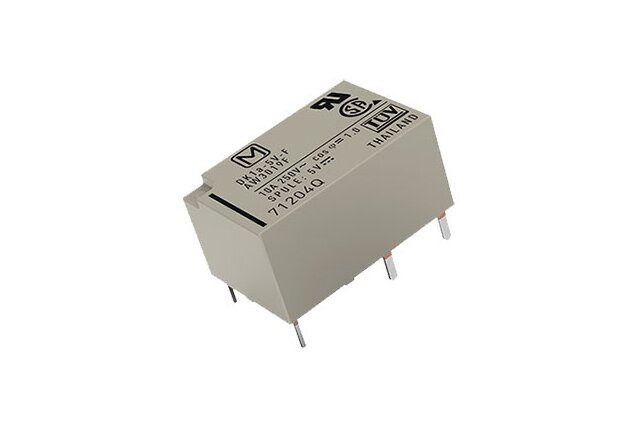

DK series: 10mm low profile 10A relay
Power relays

DK series: 10mm low profile 10A relay

A sealed type relay with low coil power, the DK relay features a very low profile of just 10mm making it perfect for use in IoT applications.
HE-PV relay: 1 Form A 35A/48A/90A devices for inverters
Power relays

HE-PV relay: 1 Form A 35A/48A/90A devices for inverters

High surge withstand voltage: 10,000V and a contact gap of 3.6mm (max.). Excellent thermal behavior ensures long electrical life.
HE-V relay: 1 Form A relay with 1000V DC, 20A cut-off capability
Power relays

HE-V relay: 1 Form A relay with 1000V DC, 20A cut-off capability

- High DC switching in compact housing - Low coil-holding power of 210mW - High surge withstand voltage of 10000V
EP relay: encapsulated high DC power relays ≤300A
Power relays

EP relay: encapsulated high DC power relays ≤300A

Nominal switching capacity ≤300A, 400V DC with low operating noise and high contact reliability. DC type with sealed capsule and RTIII.
DY polarized relay: 1 Form A 10A, 1 Form A 1 Form B 8A
Power relays

DY polarized relay: 1 Form A 10A, 1 Form A 1 Form B 8A

- Latching types available with low 200mW coil power - IEC EN61010-1-compliant - Reinforced insulation with 6 mm distance between input and output

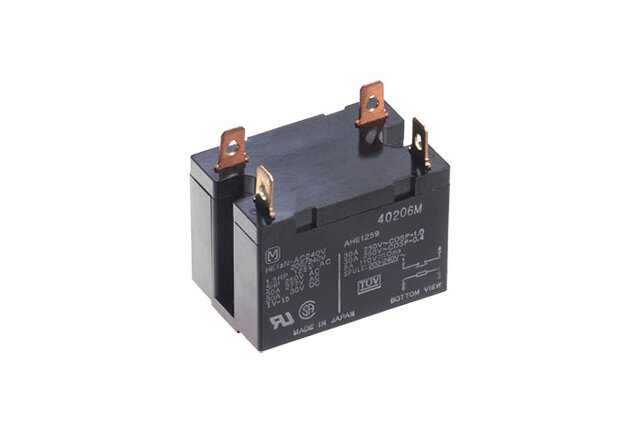

HE relay: TV-10/TV-15 rated; 1 Form A 30A and 2 Form A 25A
Power relays

HE relay: TV-10/TV-15 rated; 1 Form A 30A and 2 Form A 25A

- Protective construction, dust cover type available as plug-in - TM and screw terminal types - Flux-resistant types available as PCB version
LF relay: 1 Form A 20A devices for compressor and inverter loads
Power relays

LF relay: 1 Form A 20A devices for compressor and inverter loads

- ≤20A 250V AC - Creepage 9.5mm (min.), clearance 8mm (min.) - Surge withstand voltage 10000V - PCB and TMP types available
HE series high power relays
Power relays

HE series high power relays

Up to 120A high power relays for PCB mounting.
HE-A power relay
Power relays

HE-A power relay

Versatile power relay for solar inverters and more: 110A capacity, 90A switching- ideal for high-load energy management.

Find the optimal product for your project by selecting attributes and filter criteria
Go to Product Finder

More information

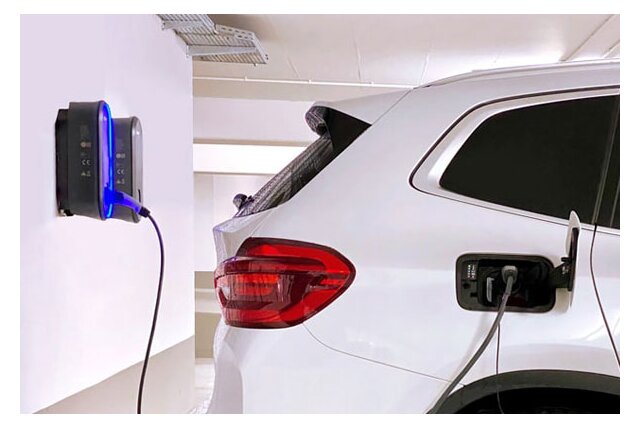

The small box for the wall box: New printed HE-R relay ready for 3 phase systems
Application insights

The small box for the wall box: New printed HE-R relay ready for 3 phase systems

Quad power - one eighth power loss: New 40A printed HE-R relay for 3 phase systems with feedback contact. A perfect match for EV charging wall boxes.
EV Charging Solutions
Download

EV Charging Solutions

“Our mission: Zero failure”
Discontinued relays
Relays

Discontinued relays

Discontinued relays / not for new application.
New HE relays feature enhanced short circuit testing for EV charging
Product notices

New HE relays feature enhanced short circuit testing for EV charging

The devices exceed rigorous IEC62955 10kA and 3kA tests
