PAN4620 (KW41Z)

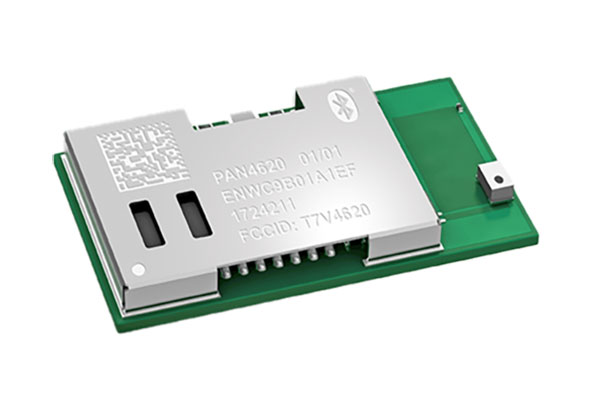

The PAN4620 is Panasonic’s Internet of Things dual mode module comprising NXP’s Kinetis KW41Z SoC - a 2.4 GHz 802.15.4 and Bluetooth® Low Energy wireless radio microcontroller based on an ARM® Cortex-M0+ core. Using the PAN4620 with low power consumption in combination with NXP’s certified Thread® stack, Bluetooth® Low Energy stack or a combination of both for concurrent operation, allows PAN4620 to meet IoT application requirements without the need for a gateway.
Technical specifications
Item |
Performance characteristics |
| Order number | ENWC9B01A1EF |
| Production status | Mass production |
| RF category | Bluetooth® Low Energy 4.2 & IEEE® 802.15.4 |
| Software/profile | SDK by NXP |
| Used IC | KW41Z |
| Rx sensitivity | Bluetooth® LE: -95 @ 1Mb/s |
| Rx sensitivity | IEEE 802.15.4: -100 @ 250kb/s |
| Tx power max | +3.5 dBm |
| Antenna option | Ceramic Antenna |
| Size (l x w x h) [mm] | 15.6 x 8.7 x 1.9 |
| Power supply [V] | 1.8 to 4.2 |
| Power consumption Tx | 6.1mA @0dBm(3.6V) |
| Power consumption Rx | 6.8mA (3.6V) |
| Power consumption sleep | Low Power Mode: 0.67μA |
| Interfaces | UART, SPI, I2C, ADC, DAC, TSI |
| Microcontroller | ARM® Cortex®-M0+ |
| Memory | 128kB SRAM, 512kB Flash |
| Speciality | Multiprotocol module |
| Certification | EU CE RED / FCC / IC |
| Operating temperature | -40 to +85 °C |
| Standard packaging QTY | 1500 pcs |
Evaluation Boards

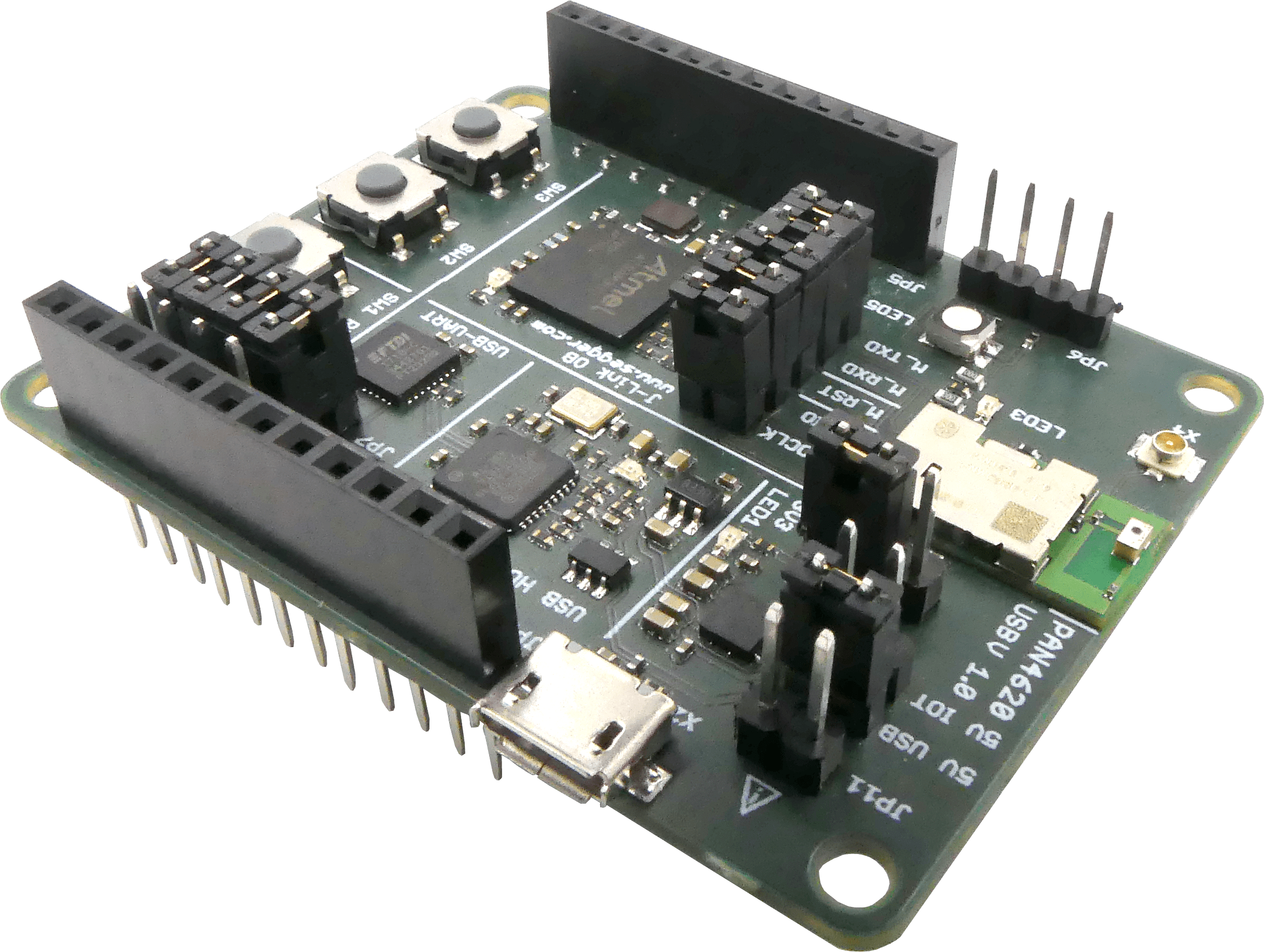

The evaluation board for PAN4620 features
- PAN4620 module
- Segger J-Link on-board Debugger
- FTDI UART-USB converter
- 2 User Buttons
- 1 User RGB LED
- Jumper for current measurement
- Access to several GPIOs
| P/N | Package includes | Stock Search |
|---|---|---|
| ENWC9B01AQEF | 1x PAN4620 Evaluation Board | BUY |
Get Started!
To start developing your application with the Evaluation Board please have a look at the Quick Start Guide. For an easy integration of the module into a product and to ensure the compliance with regulatory requirements please have a look at the Design Guide.
