Conductive polymer hybrid aluminium electrolytic capacitors

Lytic meets polymer. These devices combine the low ESR characteristics of specialty polymer capacitors and the low leakage current of aluminium electrolytic capacitors.
The role of polymer capacitors in the development of GAN-based AC/DC Converters

The role of polymer capacitors in the development of GAN-based AC/DC Converters

Polymer capacitors can contribute to better efficiency and miniaturization of design by offering lower ESR and higher ripple current characteristics in smaller case sizes.
Learn more

Panasonic's hybrid capacitors combine the benefits of aluminium electrolytic and specialty polymer capacitors resulting in a device that features high endurance, low ESR, high tolerance for ripple current, inrush currents and elevated temperature.

Hybrid capacitors are known for their stable electric characteristics at high frequencies while maximizing reliability.

Panasonic's hybrid capacitors are compact, allowing significant board space savings; vibration-proof parts are also available.

Surface mount type line-up

Series Datasheet High temperature guarantee Rated voltage range (V) Capacitance range (μF) Rated ripple current (A) Size [øxL] (mm) AEC-Q200 Features
ZA (High temp. reflow) Download 105°C/10000h 25 to 80 10 to 330 0.75 to 2.5 (at 105°C) 5x5.8 to 10x10.2 Compliant 105°C standard
High voltage (80V max)
ZC (High temp. reflow) Download 125°C/4000h 25 to 80 10 to 330 0.5 to 2 (at 125°C) 5x5.8 to 10x10.2 Compliant 125°C standard
High voltage (80V max)
ZE (High temp. reflow) Download 145°C/2000h
135°C/4000h		 25 to 63 33 to 330 0.6 to 0.9 (at 145°C)
1.1 to 2 (at 135°C)		 8x10.2, 10x10.2 Compliant High temperature guarantee (145°C)
ZF (High temp. reflow) Download 150°C/1000h 25 to 63 33 to 270 0.65 to 1 (at 150°C) 8x10.2, 10x10.2 Compliant High temperature guarantee (150°C)
ZK (High temp. reflow) Download 125°C/4000h 25 to 35 33 to 470 0.75 to 2.8 (at 125°C) 5x5.8 to 10x10.2 Compliant High capacitance and high ripple current (ZC comparison)
ZKU (High temp. reflow) Download 125°C/4000h 25 to 35 39 to 560 0.75 to 2.8 (at 125°C) 5x5.8 to 10x10.2 Compliant High capacitance (ZK comparison)
ZL (High. temp. reflow) NEW Download 125°C/4000h and
135°C 4000h (135°C 2000h for ø5 to ø6.3 products)		 25 to 35 47 to 680

0.55 to 2.3 (at 135℃)
0.9 to 3.4 (at 125℃)

 5x5.8 to 10x10.2 Compliant One size smaller than ZC series with the same capacitance
High temperature guarantee (135°C)
ZS (High temp. reflow) Download 135°C/4000h
125°C/4000h		 25 to 63 100 to 560 2.1 to 2.9 (at 135°C)
3 to 4 (at 125°C)		 10x12.5, 10x16.5 Compliant High ripple current (ZC comparison)
High temperature guarantee (135°C)
ZSU (High temp. reflow) Download 125°C/4000h 25 to 63 120 to 1000 3 to 4 (at 125°C) 10x12.5, 10x16.5 Compliant Large capacitance (ZS comparison)
ZT (High temp. reflow) Download 125°C/4000h 25 to 63 33 to 330 2.4 to 3.5 (at 125°C) 8x10.2, 10x10.2 Compliant High ripple current
ZTU (High temp. reflow) NEW Download 135°C/4000h
125°C/4000h		 25 to 35 220 to 560 1.8 to 2.2 (at 135°C)
2.9 to 3.5 (at 125°C)		 8x10.2, 10x10.2 Compliant Large capacitance (ZT comparison)
High temperature guarantee (135°C)
ZU (High temp. reflow) Download 135°C/4000h
125°C/4000h		 25 to 63 100 to 560 4.6 to 5.8 (at 125°C) 10x12.5, 10x16.5 Compliant High ripple current (ZS comparison)
High temperature guarantee (135°C)
ZUU
(High temp. reflow) NEW		 Download 135°C/4000h
125°C/4000h		 25 to 63 120 to 1000 3.4 to 4.3 (at 135°C)
4.8 to 6.1 (at 125°C)		 10x12.5, 10x16.5 Compliant Large capacitance (ZU comparison)
High temperature guarantee (135°C)
ZV (High temp. reflow) NEW Download 135°C/4000h
125°C/4000h		 25 to 63 33 to 330 2.3 to 3.4 (at 135℃)
3.3 to 4.6 (at 125℃)		 8x10.2, 10x10.2 Compliant High ripple current (ZT comparison)
High temperature guarantee (135°C)

Radial lead type line-up

Series Datasheet High temperature guarantee Rated voltage range (V) Capacitance range (μF) Rated ripple current (A) Size [øxL] (mm) AEC-Q200 Features
ZA-A Download 105°C/10000h 25 to 80 22 to 330 1.4 to 2.5 (at 105°C) 8x9.5, 10x9.5 Compliant 105°C standard
High voltage (80V max)
ZC-A Download 125°C/4000h 25 to 80 22 to 330 1.05 to 2 (at 125°C) 8x9.5, 10x9.5 Compliant 125°C standard
High voltage (80V max)
ZK-A Download 125°C/4000h 25 to 35 180 to 470 2 to 2.8 (at 125°C) 8x9.5, 10x9.5 Compliant High capacitance and high ripple current (ZC comparison)
ZKU-A Download 125°C/4000h 25 to 35 220 to 560 2 to 2.8 (at 125°C) 8x9.5, 10x9.5 Compliant High capacitance (ZK comparison)
ZS-A Download 125°C/4000h 25 to 63 100 to 560 3 to 4 (at 125°C) 10x11.7, 10x15.7 Compliant High capacitance and high ripple current (ZC comparison)
ZSU-A Download 125°C/4000h 25 to 63 120 to 1000 3 to 4 (at 125°C) 10x11.7, 10x15.7 Compliant Large capacitance (ZS comparison)
ZE-A Download 145°C/2000h
135°C/4000h		 25 to 63 33 to 330 0.6 to 0.9 (at 145°C)
1.1 to 2 (at 135°C)		 8x9.5, 10x9.5 Compliant High temperature guarantee (145°C)
ZF-A Download 150°C/1000h 25 to 63 33 to 270 0.65 to 1 (at 150°C) 8x9.5, 10x9.5 Compliant High temperature guarantee (150°C)
ZT-A Download 125°C/4000h 25 to 63 33 to 330 2.4 to 3.5 (at 125°C) 8x9.5, 10x9.5 Compliant High ripple current

Our top product lines

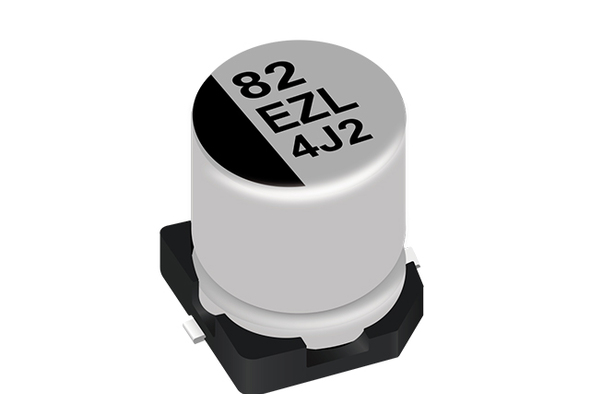

(NEW) ZL series
Hybrid capacitors

(NEW) ZL series

One size smaller than ZC series with the same capacitance.

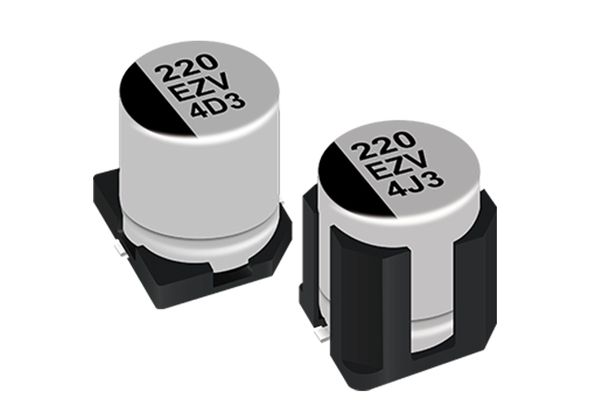

(NEW) ZV Series
Hybrid capacitors

(NEW) ZV Series

The ZV Series (SMD, High Temp. Reflow) is AEC-Q200 compliant with higher Ripple Current and lower ESR, catering to diverse applications.

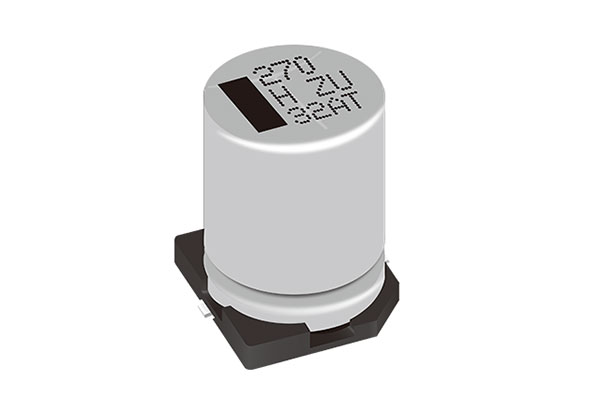

(NEW) ZUU Series
Hybrid capacitors

(NEW) ZUU Series

The ZUU series has the best combination of capacitance and ripple current in the hybrid capacitor market and a low leakage current. AEC-Q200 compliant.

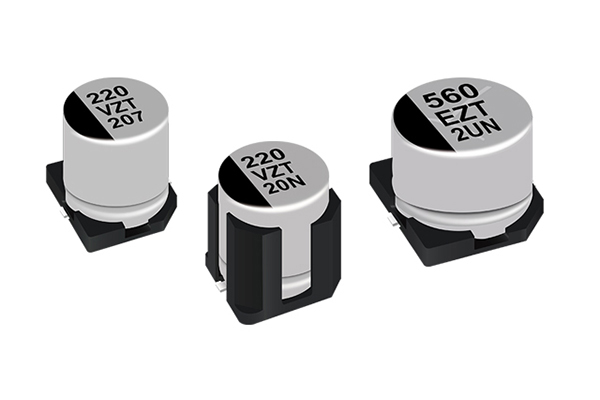

(NEW) ZTU series
Hybrid capacitors

(NEW) ZTU series

The ZTU series offers both highest capacitance specification and highest capacitance specification in the market and a low leakage current. AEC-Q200 compliant.

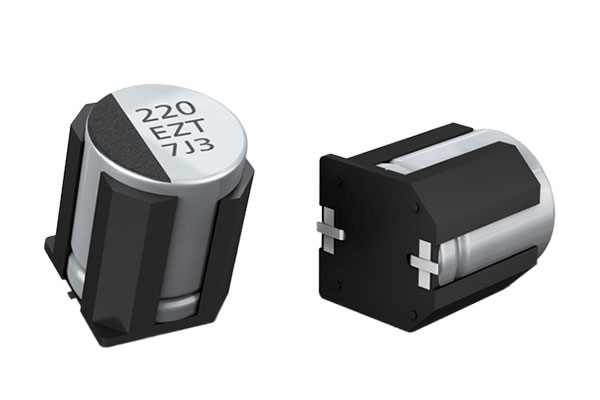

ZT Series
Hybrid capacitors

ZT Series

The new ZT series stands out for an exceptional persistence and robustness for a vast number of demanding applications. Performance upgrade to ZC.

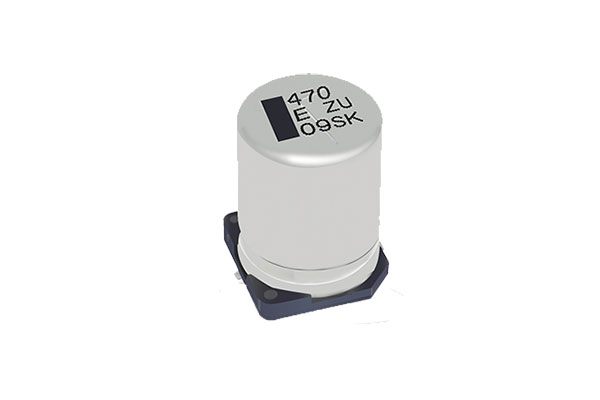

ZU series
Hybrid capacitors

ZU series

The ZU Series offer the highest ripple current specification in the market (up to 5.8A) and a super low LC current. AEC-Q200 compliant.

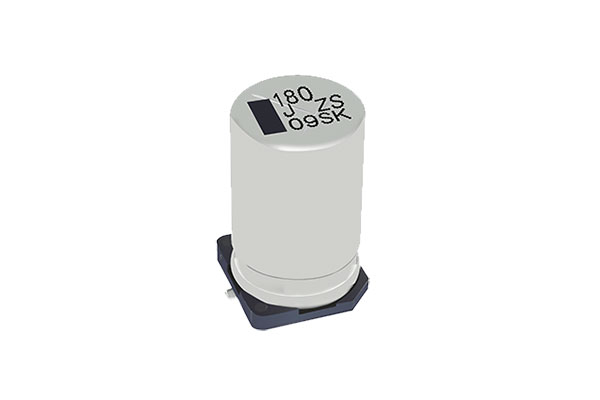

ZSU series
Hybrid capacitors

ZSU series

The ZSU Series offer the highest capacitance specification in the market (up to 1000µF) and a low leakage current. AEC-Q200 compliant.

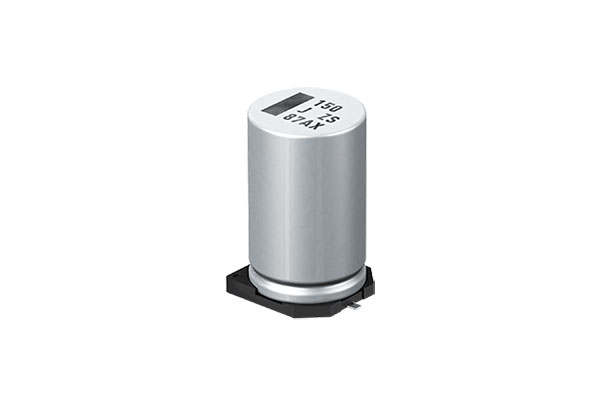

ZS series
Hybrid capacitors

ZS series

ZS Series is optimal for hybrid and electric vehicles due to increased high ripple current and low ESR performance.

DESIGN TOOL

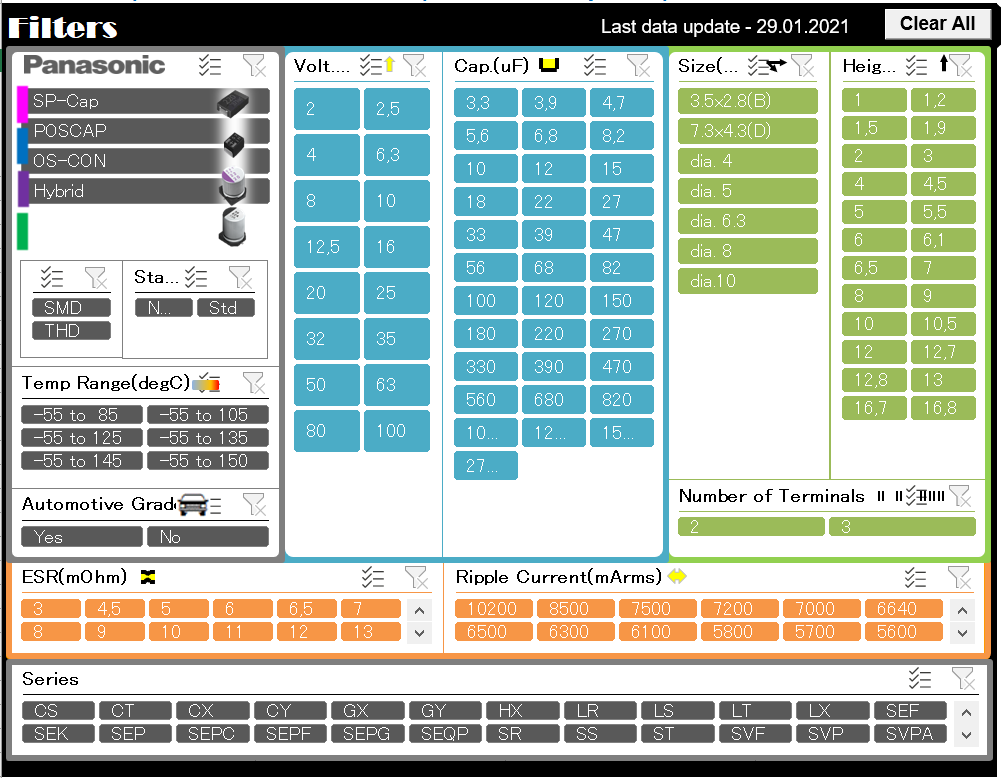

Polymer and electrolytic capacitor selection tool

Helping you easily finding the right polymer and electrolytic capacitor part number(s) for your design even when you are off-line. In addition to our product finder on our website, we have created a selection tool in Microsoft® Excel for you. Please feel free to download it by a simple click.

Get the selection tool here!

HYBRID CAPACITORS

ZA series

The conductive polymer hybrid aluminum electrolytic capacitor series with the highest lifetime (10.000 hours at 105°C).
HYBRID CAPACITORS

ZC series

Up to 80V products with low ESR characteristics rated for 4000h at 125°C.
HYBRID CAPACITORS

ZE series

High temperature resistance series for SMD products up to 63V (2000h / 145°C).
HYBRID CAPACITORS

ZF series

Through-hole type hybrid capacitor variants suitable for high temperature applications.
HYBRID CAPACITORS

ZK series

Large capacitance series for products up to 35V (4000h / 125°C).
HYBRID CAPACITORS

ZK-U series

The increased capacitance of the ZK-U Series (up to 40% more compared to ZK Series) contributes to an ECU miniaturization.

Download our promotion documents

Name File type Size Date Language
PDF SOS – MLCC to Panasonic Polymer Series Flyer 440 KB 17.11.2020 English
PDF Understanding Polymer and Hybrid Capacitors 2020 Whitepaper 4 MB 03.05.2024 English
PDF AEC-Q200 Passive Components Selection Guide.pdf Flyer 3 MB 03.05.2022 English
PDF Building Automation - Energy Management Solutions Catalog, Brochure 1 MB 01.03.2022 English
PDF High Performance Hybrid Capacitor: ZS Series Flyer, Fighting card 214 KB 08.07.2024 English
PDF Hybrid Capacitors: THT Type Flyer, Fighting card 595 KB 08.07.2024 English
PDF Hybrid Capacitors: ZF Series Flyer, Leaflet 813 KB 08.07.2024 English
PDF Hybrid Capacitors: ZKU Series Flyer, Fighting card 189 KB 08.07.2024 English
PDF Hybrid Capacitors: ZS Series Flyer, Leaflet 433 KB 08.07.2024 English
PDF Hybrid Capacitors: ZT Series Flyer, Leaflet 667 KB 08.07.2024 English
PDF Hybrid Capacitors: ZT Series Flyer, Fighting card 567 KB 08.07.2024 English
PDF Hybrid Capacitors: ZU Series Flyer, Leaflet 601 KB 08.07.2024 English
PDF Products Catalog (Hybrid Aluminum Electrolytic) Catalog 12 MB 13.11.2024 English
PDF Hybrid Capacitors: ZUU Series Flyer, Fighting card 816 KB 19.09.2024 English
PDF Hybrid Capacitors: ZL Series Flyer, Fighting card 797 KB 19.09.2024 English
PDF Hybrid Capacitors: ZTU Series Flyer, Fighting card 1 MB 29.10.2024 English
PDF Hybrid Capacitors: ZC Series Flyer, Fighting card 730 KB 29.10.2024 English
PDF Hybrid Capacitors: ZV Series Flyer, Fighting card 738 KB 29.10.2024 English

Find the optimal product for your project by selecting attributes and filter criteria
Go to product finder

Videos

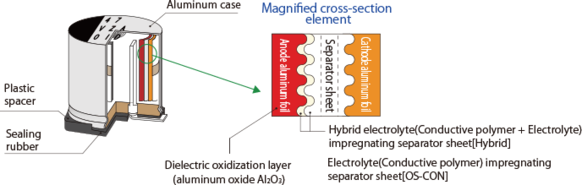

Internal construction diagram

Capacitor Hybrid Structure Panasonic Industry

Construction of the hybrid capacitor

Anti vibration terminals

Capacitor Hybrid Anti-Vibration-Terminal Panasonic Industry

An auxiliary terminal structure has supportive terminals positioned on the sides of the capacitor. This enables a simple visual confirmation of the auxiliary terminal soldering, ensures stable soldering properties, and enhances the ECU's overall vibration resistance.

The capacitor can withstand vibration forces of 30G, making additional anti-vibration measures unnecessary and therefore allowing customers to streamline their production processes.

  Size Code [mm]
  C D D8 F (Anti-Vibration) G G (Anti-Vibration)

Sign

 D 5 6.3 6.3 8 10 10
L 5.8 5.8 7.7 10.2 10.2 10.5
A, B 5.3 6.6 6.6 8.3 10.3 10.3
H 6.5 max 7.8 max 7.8 max 10.0 max 12.0 max 12.0 max

Applications

AQV PhotoMOS relay automotive Panasonic Industry Car on highway
  • Safety
  • Infotainment
  • Inverters
  • Transmission ECUs
  • Engine ECUs
  • Electric power steering
  • Braking systems
  • ADAS systems
  • LED lighting
  • Pump systems

TSON PhotoMOS relays telecommunication Panasonic Industry
  • Tablets
  • Notebooks
  • Desktop PCs
  • Base stations
  • Servers/Data centers
  • SSD
  • USB charge/Non-contact charge

TSON PhotoMOS relays measurement equipment Panasonic Industry
  • PLC/Industrial PCs
  • Motor drivers/inverters
  • FA equipment
  • Measuring instrumentation
  • Power supplies
  • HEMS/BEMS/FEMS
  • Smart meters
  • Security cameras

DJ-H power relay smart home Panasonic Industry
  • Home information
  • Appliances

wireless medical Panasonic Industry
  • Amusement machines
  • Power tools
  • OA equipment
  • Medical equipment
