Encoder

Panasonic Encoders are highly sophisticated Input devices. Outstanding key performance factors are “robustness” & “excellent haptics”. Those rotaries convert the manual rotary operation of an actuator or knob into precise coded signal outputs. Panasonic Encoders offer various options such as high torque, extreme low shaft wobble, long life, push-on switch, water proof and center space. Possibilities of Haptic-alignment make these components perfect.

IMPORTANT NOTE:

The product links below temporarily refer to our global website based in Japan. While we are working to provide the complete product information on this European website, we hope that in the meantime you will benefit from the comprehensive information available on the global website. For any questions, please do not hesitate to contact us.

Our product line-up

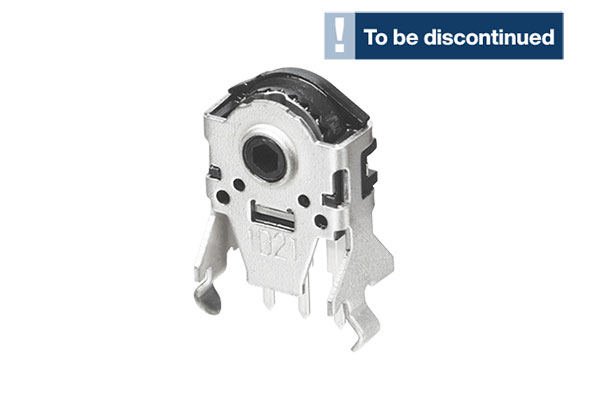

Encoder

7mm Square

Smaller and lower product height (H=7mm)

Rot. Torque [mNm]: 5
Detents [points]: 24
Resolution [pulses/360°]: 12
Rotation life [cycles/min]: 100k

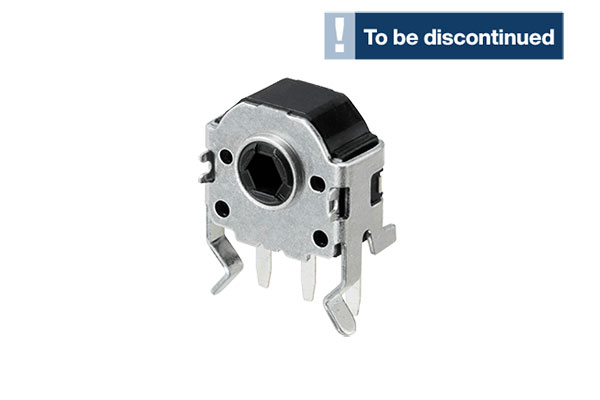

Encoder

10mm Square GS

Shaft hole diameters avail. up to 4 mm
High cycle life

Rot. Torque [mNm]: 5
Detents [points]: 24
Resolution [pulses/360°]: 12

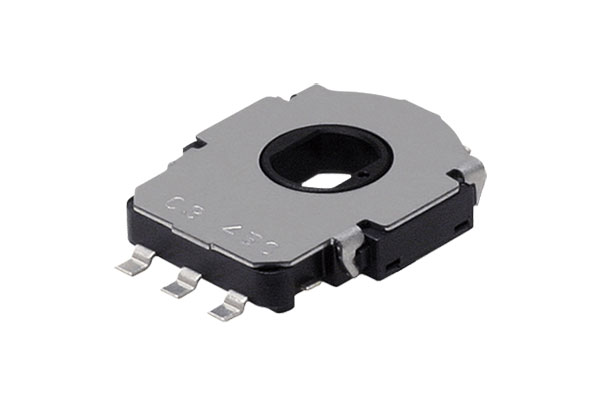

Encoder

10mm Square SMD

Autom. qual.
Compact and thin design

Rot. Torque [mNm]: 2 max.
Detents: without
Resolution [pulses/360°]: 3
Rotation life [cycles/min]: 70k
Components_encoder_EVEY_EVEV_EVEU_EVER_teaser Panasonic Industry
Encoder

11mm Square GS

Autom. qual.
Various line up for rotation torque and detents
The reflow type allows the product to be automatically mounted and to be reflow-soldered
Encoder

11mm Square GS Gen2

Automotive qualified
Various line up for rotation torque and detents
New minimized shaft wobble structure is applied
Encoder

18mm Square (High Rotational Torque)

Automotive qualified

Rot. Torque [mNm]: 20 to 100
Detents [°]: 10 to 30
Resolution [bit]: Absolut 5
Rotation life [cycles/min]: 15k
Encoder

18mm Square (Waterproof Type)

Rot. Torque [mNm]: 50 +/-20
Detents [points]: 8 ; 16
Resolution [bit]: Absolut Absolut 3 ; 4
Rotation life [cycles/min]: 30k
Encoder

20/12mm Center Space

Automotive qualified

Rot. Torque [mNm]: 7 ; 11 ; 18
Detents [points]: 18 ; 30
Resolution [bit]: 9 ; 15
Rotation life [cycles/min]: 30k

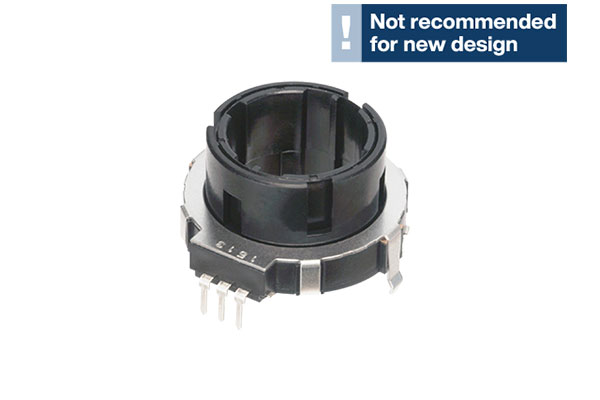

Encoder

27/17mm Center Space

Automotive qualified

Rot. Torque [mNm]: 8 ; 12 ; 20
Detents [points]: 18 ; 30
Resolution [bit]: 9 ; 15
Rotation life [cycles/min]: 30k

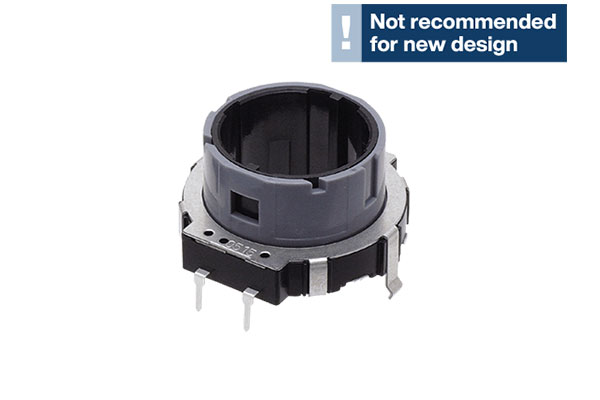

Encoder

27/18mm Center Space

Automotive qualified

Rot. Torque [mNm]: 9 ; 13,5 ; 18
Detents [points]: 18 ; 30
Resolution [bit]: 9 ; 15
Rotation life [cycles/min]: 30k

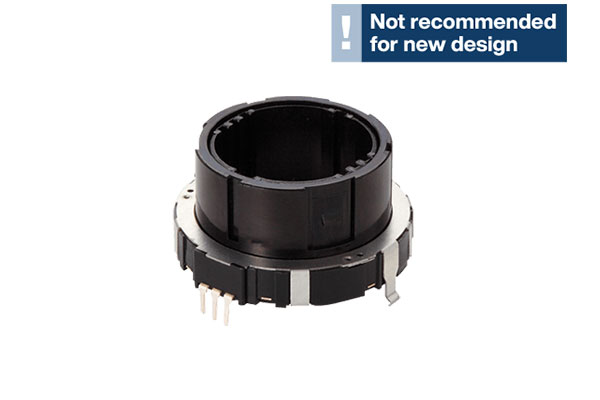

Encoder

38/25mm Center Space

Automotive qualified

Rot. Torque [mNm]: 12 ; 20
Detents [points]: 30
Resolution [bit]: 15
Rotation life [cycles/min]: 30k
Encoder

60/40mm Center Space

Automotive qualified

Rot. Torque [mNm]: 35
Detents [points]: 30
Resolution [bit]: 15
Rotation life [cycles/min]: 30k
