Safety relays

Relays with forcibly-guided contacts according to EN 61810-3; broad line-up from 2-pole to 8-pole types.

Best performance for all kinds of safety applications

Relays with forcibly-guided contacts simplify the design of reliable safety circuits for applications including emergency stop switches, safety controls & PLCs, elevator/escalator control, robots and railway signaling.

Discover the latest developments in SF relays

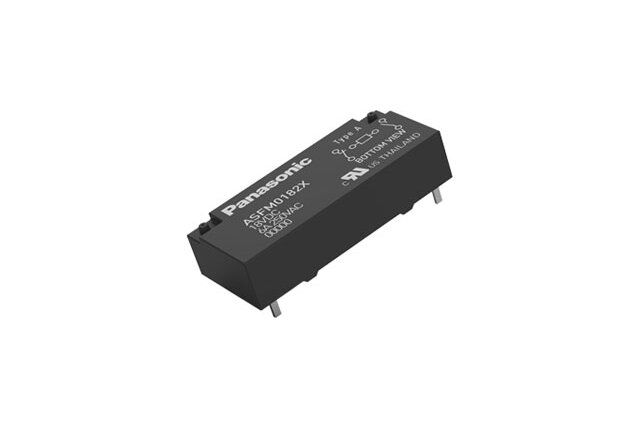

SFM super flat safety relay
Safety relay

SFM super flat safety relay

With a height of only 7.8mm, the SFM is the world’s lowest profile relay with forcibly-guided contacts (EN 61810-3). Reflow soldering capability.

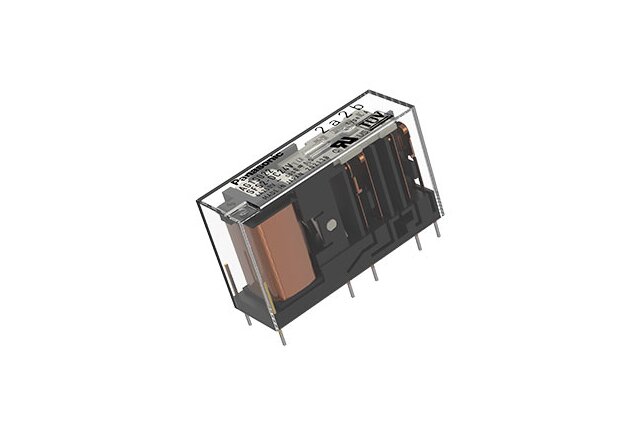

SFS series: narrow width
Safety relay

SFS series: narrow width

Thanks to a slim design, SFS devices require little PCB space. A broad line-up of contact types including 2a2b, 3a1b, 3a3b, 4a2b and 5a1b is offered.

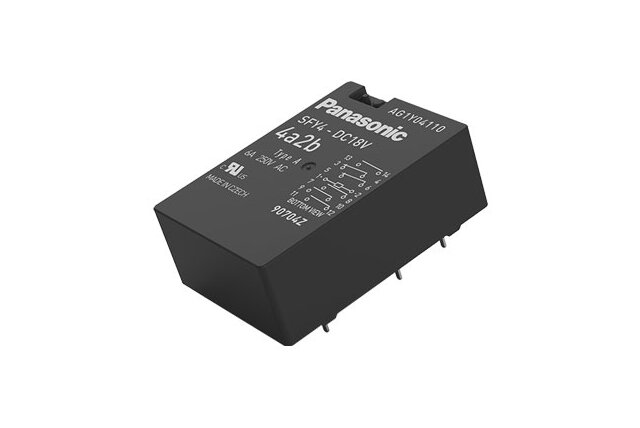

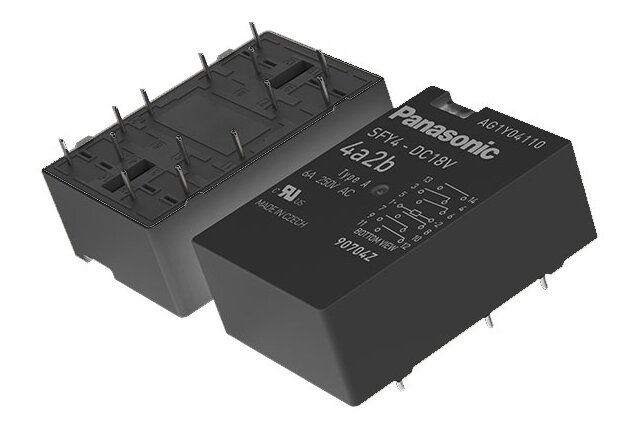

SFY series: low profile
Safety relay

SFY series: low profile

These high power, low profile devices suit safety and control applications. Broad line-up of contact types includes 2a2b, 3a1b, 4a2b and 5a1b styles.
SFN4D series: 6 pole
Safety relay

SFN4D series: 6 pole

≤8A safety relay with 4a2b contact configuration. Very long lifetime at AC15 and DC13 loads
SF2D series: 4 pole
Safety relay

SF2D series: 4 pole

≤8A safety relay with 2a2b contact configuration. Long lifetime and excellent low level load capability.
SF4D series: 8 pole
Safety relay

SF4D series: 8 pole

≤8A safety relay with 4a2b contact configuration. Very long lifetime at AC15 and DC13 loads.
SF3 series: 4 pole
Safety relay

SF3 series: 4 pole

≤8A safety relay with 3a1b contact configuration.

Find the optimal product for your project by selecting attributes and filter criteria
Go to Product Finder

Downloads

Name File type Size Date Language
PDF Cautions for use - Application in Circuits Data sheet, Technical information 98 KB 28.02.2014 English
PDF Cautions for use - General Application Guidelines for Relays Data sheet, Technical information 376 KB 30.07.2014 English
PDF Cautions for use - Relay Terminology Data sheet, Technical information 54 KB 28.02.2014 English
PDF Cautions for use - Reliability Data sheet, Technical information 42 KB 28.02.2014 English
PDF Cautions for use - SMT Soldering Guidelines Data sheet, Technical information 67 KB 28.02.2014 English
PDF Cautions for use - Relay Soldering and Cleaning Guidelines Data sheet, Technical information 61 KB 28.02.2014 English
PDF Relays Short Form 2024 Catalog, Shortform 5 MB 19.02.2024 English
PDF Flyer: SF Relays with Forcibly Guided Contacts Flyer 2 MB 24.10.2024 English

More information

New flyer SF relays
Download

New flyer SF relays

Download our new flyer: SF Relays with Forcibly Guided Contacts.
Discontinued relays
Relays

Discontinued relays

Discontinued relays / not for new application.
