BEYOLEX™

Stretching the future of electronic materials

BEYOLEX™ Thermosetting Stretchable Film

electronic materials beyolex TM logo

This novel polymer substrate is designed for flexible, stretchable, conformable and pliable printed electronics applications. It is a unique material based on a proprietary, thermoset, non-silicone polymer system which provides outstanding performance.

Features and benefits

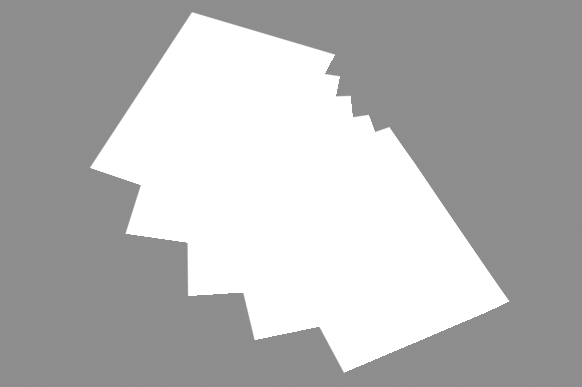

electronic materials beyolex sheets
  • Good elongation
  • Ultra low hysteresis
  • High temperature resistance
  • High environmental stability
  • Compatible with wide variety of functional inks

Typical printed electronic applications

  • Sensors
  • Health and wellness
  • Automotive
  • Aerospace
  • Structural electronics

Typical properties

Properties Test method * Unit BEYOLEXTM
Elongation Initial ASTM D822 % > 200
Aft. High Temp. and High Humid. test ** > 200
Aft. Heat cycle *** > 200
Modulus @ 50% strain Initial ASTM D822 MPa < 2.5
Aft. High Temp. and High Humid. test ** < 2.5
Aft. Heat cycle *** < 2.5
Hysteresis Initial Panasonic Original % < 0.1
Aft. High Temp. and High Humid. test ** < 0.1
Aft. Heat cycle *** < 0.1
Heat resistance   TG/DTA (@Air) 5% weight loss °C 302
Breakdown voltage   IEC 60243-1 KV/mm 98
Dielectric Property (Dk/Df)   IPC TM650 2.5.5.10 @ 10GHz 2,8 / 0,052
@ 2 GHz 3,3 / 0,073
Transparency     % > 90
Stretch cycle   50% stretch cycle > 10000

* Measurements are compliant with the standards other than Panasonic’s original test
** Test Condition: 85°C / 85% RH / 1000h
*** Test Condition: -55°C (5 min) ↔ 125°C (5 min) / 1000 cycles

The values are representative measured properties and not specifications or guarantees of performance.

Demo Videos

Color LED array video:

  • Wiring does not break when bent or stretched
  • And it returns to its original state.

NFC energy harvesting video:

  • In addition to stretching and shrinking, immersion in water does not cause functional problems.

Production cooperation with Printed Electronics Ltd.

Downloads

Name File Type Size Date Language
PDF BEYOLEX Catalog 183.4 KB 08.04.2022 English
PDF BEYOLEX™ Thermosetting Stretchable Film Flyer 530 KB 15.03.2022 English
PDF Catalog_BEYOLEX_MUAS13111AA_en_2023 120.7 KB 27.11.2023 English
PDF Datasheet_BEYOLEX_MUAS13111AA 1.1 MB 22.02.2023 English
