GP-X measurement sensor

Eddi current analogue sensor.

GP-X inductive analogue sensors (controller)

The inductive displacement transducers of the GP-X series use eddy current techniques and are particularly noted for their highly accurate measurement at a resolution of 0.02% F.S. with minimal linearity error, a high sampling frequency of 40kHz and low temperature dependence. GP-X sensors are ideally suitable for the highly accurate motion and distance control of metal objects in harsh industrial environments.


  • High sampling frequency of 40kHz
  • Resolution of 0.02% F.S.
  • Minimal linearity error max. ±0.3% F.S.
  • Minimal temperature dependence max. ±0.07% F.S./°C
  • Bright, two-colour LCD display
  • Preselectable materials (aluminium, steel, iron)
  • Four measurement modes (preselectable)
  • Cross talk prevention function
  • Offset compensation and scaling functions
  • Synchronisation input and alarm output
  • Adjustable limit values with transistor outputs



  • Communication unit (optional)
  • RS232 interface and BCD output (optional)
  • Measuring and test software (optional)

GP-X sensor heads

A total of five different models are available for various applications, with a sensing range of 0.8 to 10mm: three cylindrical type sensor heads (diametre = 3.8; 5.4 or 8mm) and three threaded-type sensor heads.


  • One-touch clips for fast sensor head connection
  • Sealed to IP67g (sensor head is oil resistant)


  • Extension cable (7m)
Product Finder

Use the Product Finder to find the best product for you

product finder Panasonic Industry
Find the optimal product for your project by selecting attributes and filter criteria
Go to Product Finder

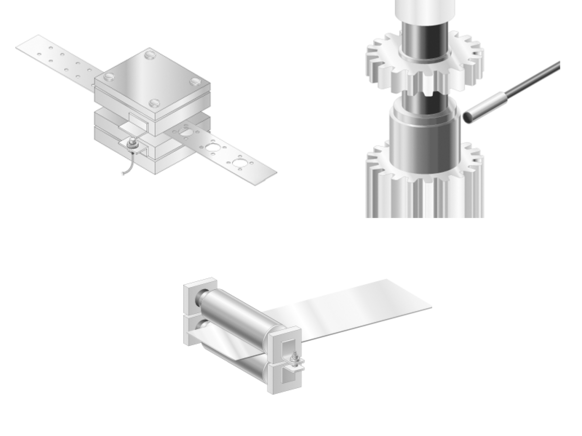

Sensors Measurement GP-X applications Panasonic Industry
  • Stroke end sensing
  • Eccentricity sensing
  • Height sensing
