PhotoMOS® GU series for general use

- Extensive range - Available as 1 Form A or 1 Form B types - DIP4 or SOP4 packaging - ≤600V or ≤1.25A

Made for everything: Over 150 variants for all kind of industrial applications

GU series is the all-rounder in the PhotoMOS® line-up. The galvanic isolated MOSFET relays are available in five contact configurations 1a, 1b, 2a, 2b, 1a1b and cover a load capability from 2A @60V to 50mA @ 600V. Current limiting, short circuit protection, and voltage sensitive types are available as well as high I/O isolation types up to 5,000Vrms.

Key features

  • Linear output characteristics
  • Switching of lowest analog signal possible
  • Non inductive input
  • Insensible to shock & vibration
  • High I/O isolation up to 5,000VRMS
  • Max. switching voltage up to 600V
  • Max. switching current up to 1.6A
  • DIP & SOP package

Applications

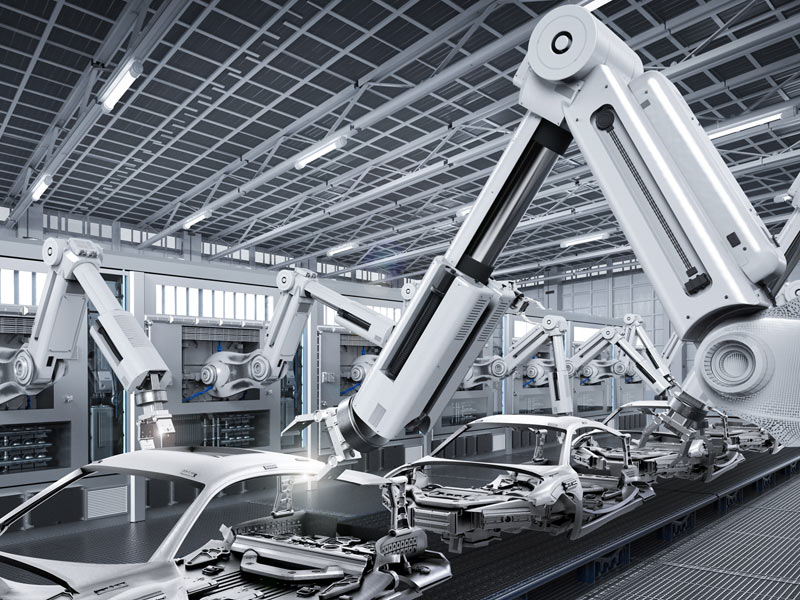

Industrial automation

Industrial automation

• PLCs & IPCs
• I/O modules
• Robotic controls
Energy management

Energy management

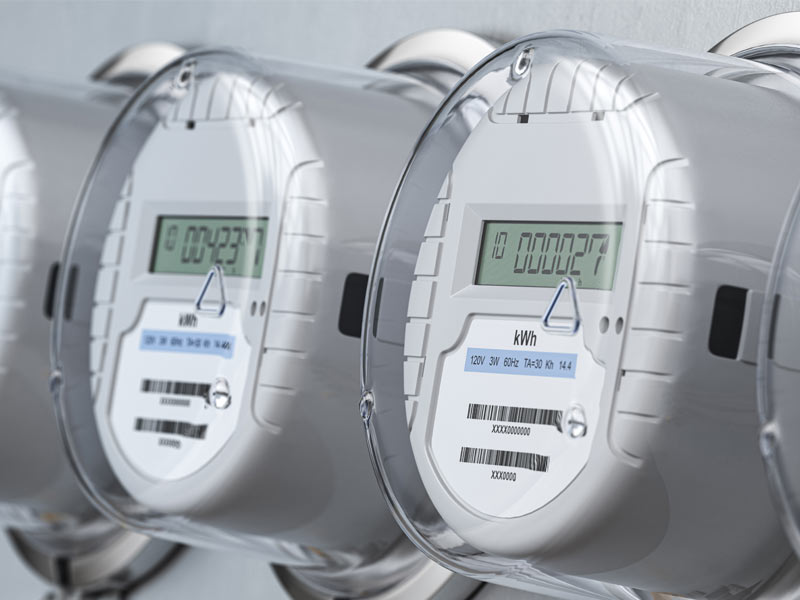

• Smart meter
• Isolation monitoring (BMS)
• Automatic circuit breakers
Safety & Security

Safety & Security

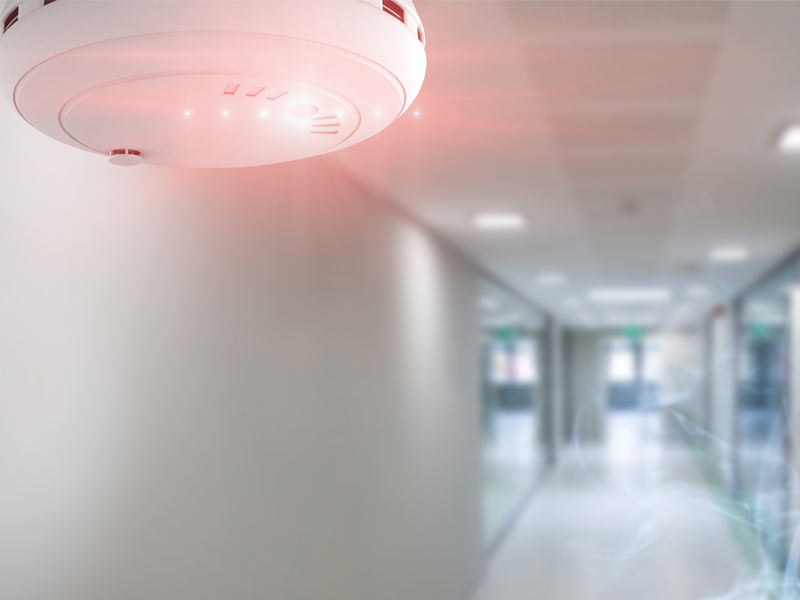

• Smoke detectors
• Intercom
• Alarm contact

Find the optimal product for your project by selecting attributes and filter criteria Go to Product Finder
Go to Product Finder

More information

Excellently average
New product introductions

Excellently average

With the new AQY215S 100V load voltage type, Panasonic Industry complements its GU series of MOSFET relays in the middle of the feature scale
PhotoMOS® App
PhotoMOS® relays

PhotoMOS® App

Find the most suitable PhotoMOS® relay for your application - amazingly quick and easy.
PhotoMOS® Application Notes
PhotoMOS® relays

PhotoMOS® Application Notes

Can I increase the current rating of a PhotoMOS® relay? Yes, by using the correct output connection! Just read the MOSFET relay application notes.
