Automotive-qualified PhotoMOS®

Automotive grade PhotoMOS® relays provide enhanced quality controls.
AQV automotive PhotoMOS product hero

PhotoMOS® relays for passenger safety

The car chassis must be reliably galvanically-isolated from the HV battery. Automotive PhotoMOS® relays can be used as fast electronic switches in order to detect leakage currents in a isolation-monitoring application.

Key Features

  • Available for high voltages up to 1500V
  • Minimal leakage current (typ. <1nA)
  • Turn-on time: max. 0.5ms -1.0ms
  • Turn-off time: max. 0.5ms
  • Tested according to AEC-Q101
  • Input/output isolation ≤5kVrms
  • No threshold voltage
  • Stable On-resistance over entire lifetime
  • Highly resistant to shock and vibration

Isolation monitoring

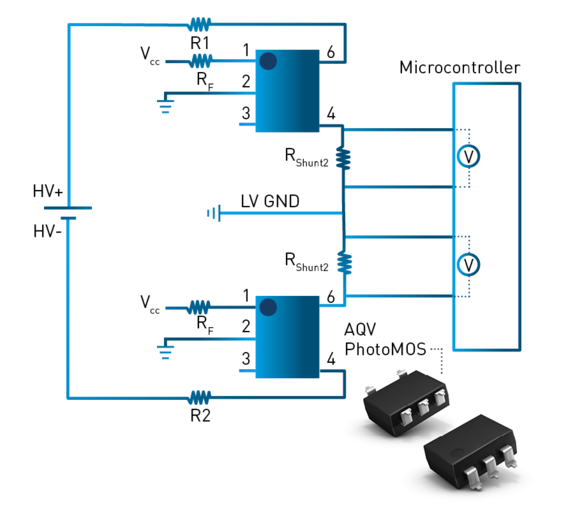

AQV PhotoMOS relay isolation monitoring

PhotoMOS® technology is used to check the isolation between high voltage (HV) and low voltage (LV) in hybrid and electronic vehicles (HEV/EV). In connection with high-ohmic resistors (shunts), the secure separation of the high voltage and low voltage sides of the electrical system can be checked.


AQV PhotoMOS reay automotive Panasonic
  • Isolation monitoring
  • Battery monitoring
  • Signal processing

AQW series

PhotoMOS DIP8 SMD Panasonic Industry


  • Output rating 600V / 40mA
  • Contact configuration 2FormA
  • DIP8 SMD

Other versions available on request


AQV series

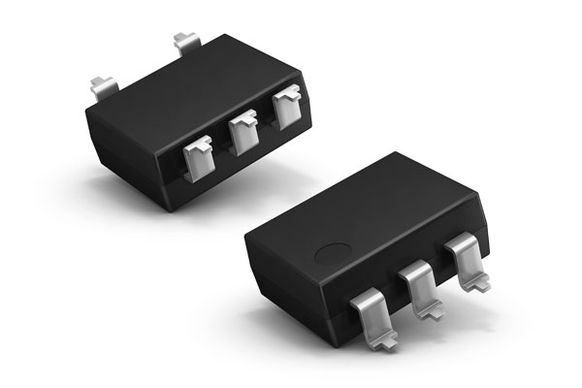

PhotoMOS DIP6 SMD Panasonic Industry


  • Output rating 900V / 15mA
  • Contact configuration 1FormA
  • DIP6 SMD housing, 5 pin version


  • Output rating 1500V / 20mA
  • Contact configuration 1FormA
  • DIP6 SMD housing, 5 pin version

Other versions available on request



Name File type Size Date Language
PDF PhotoMOS for Automotive Data sheet, Technical information 826KB 01.10.2018 English
PDF Application note 0521: Isolation monitoring 1MB English
PDF EV Charging Solutions from Panasonic Industry Catalog, Brochure 2MB 19.11.2021 English
