OS-CON

OS-CON capacitors feature a low equivalent series resistance (ESR), an excellent noise reduction capability and good frequency characteristics.
capacitor polymer oscon

OS-CON - Conductive polymer aluminum solid capacitors

Long life span and excellent ESR stability across the rated temperature range are features of Panasonic's capacitor product lines, which has been expanded with the OS-CON aluminum polymer solid capacitor range.

Available in both surface mount and through hole types, OS-CON capacitors utilize aluminum and a high conductivity polymer material to achieve low ESR, plus excellent noise reduction and ripple current capabilities.

OS-CON parts are characterized by a long life span and minimal change in ESR across the full rated temperature range.

Ideal for applications that require the high voltage and high capacitance.

Our top OS-CON™ SMD products

capacitors polymer os-con SXV teaser
POLYMER ALUMINIUM CAPACITORS

OS-CON™ SXV series

- Super high voltage (100V max.)
- 125°C, 1000h guaranteed
capacitors polymer os-con svt news teaser
POLYMER ALUMINIUM CAPACITORS

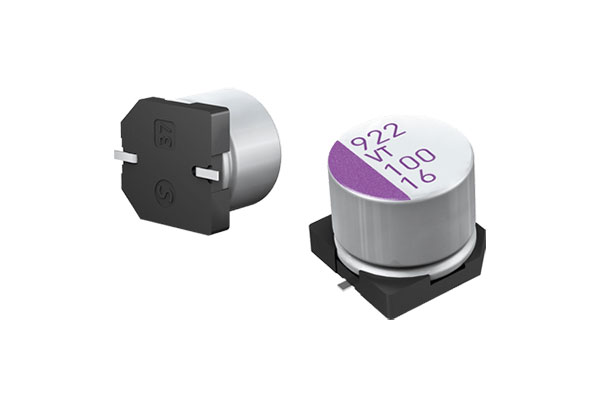

OS-CON™ SVT series

- High voltage
- Low ESR (10 mΩ max.)
- Large capacitance (2700 µF max.)
- 125°C guaranteed
capacitors polymer os-con SVPT Teaser
POLYMER ALUMINIUM CAPACITORS

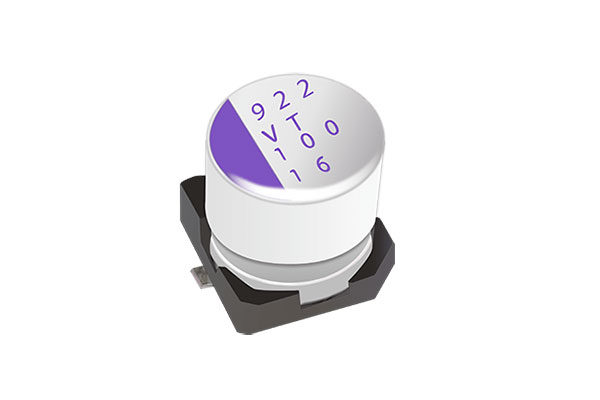

OS-CON™ SVPT series

- High voltage
- Low ESR (10 mΩ max.)
- Large capacitance (2700 µF max.)
- [email protected]°C

More OS-CON™ SMD products

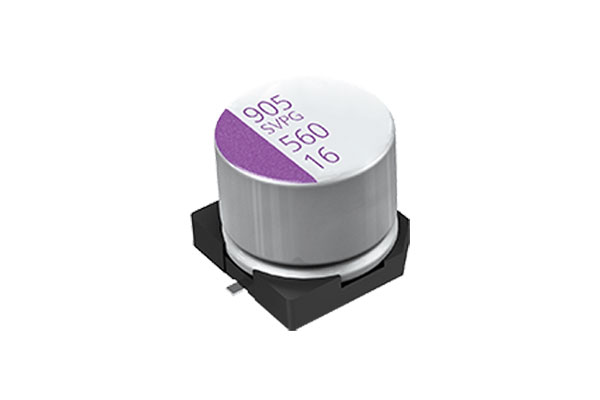

OS-CON™ SVPG series

- Low profile
- Low ESR (6.5mΩ)
- High ripple current

OS-CON™ SVPK series

- High voltage
- Low ESR (12mΩ)
- Large capacitance (1200µF max.)

OS-CON™ SVF series

- High voltage (50V max.)
- Large capacitance (1000µF max.)
- 125°C, 1000h guaranteed

OS-CON™ SVPF series

- High voltage (50V max.)
- Large capacitance (1000µF max.)
- 105°C, 5000h guaranteed

OS-CON™ SVP series

- Small size
- Large capacitance (1500µF max.)

OS-CON™ SVPA series

- Low ESR (19mΩ)
- High ripple current

OS-CON™ SVPB series

Low profile (5.4mm max.)

OS-CON™ SVPC series

- Low ESR (9mΩ)
- Large capacitance (2700µF)

OS-CON™ SVPD series

- High voltage (35V max.)
- 125°C, 2000h guaranteed
- 85°C, 85%RH guaranteed

OS-CON™ SVPE series

- Super low ESR (8mΩ)
- Large capacitance (1200µF max.)

OS-CON™ SVPS series

- 105°C, 5000h guaranteed

OS-CON™ SVQP series

- 125°C, 1000h guaranteed

Our top OS-CON™ radial products

capacitors polymer os-con SXE Teaser
POLYMER ALUMINIUM CAPACITORS

OS-CON™ SXE series

- Super high voltage (100V max.)
- 125°C, 1000h guaranteed
capacitors polymer os-con SEF Teaser
POLYMER ALUMINIUM CAPACITORS

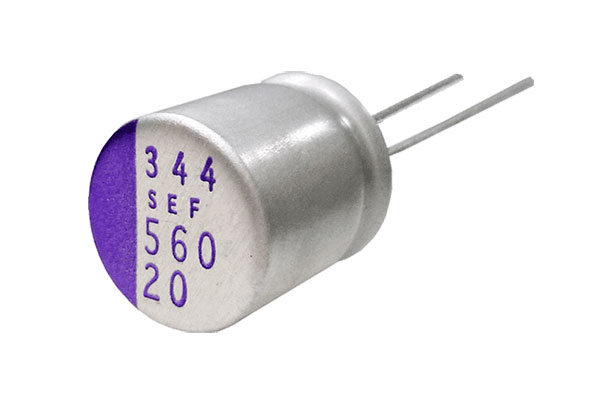

OS-CON™ SEF series

- High voltage (35V max.)
- Large capacitance (1000µF max.)
capacitors polymer os-con SEK Teaser
POLYMER ALUMINIUM CAPACITORS

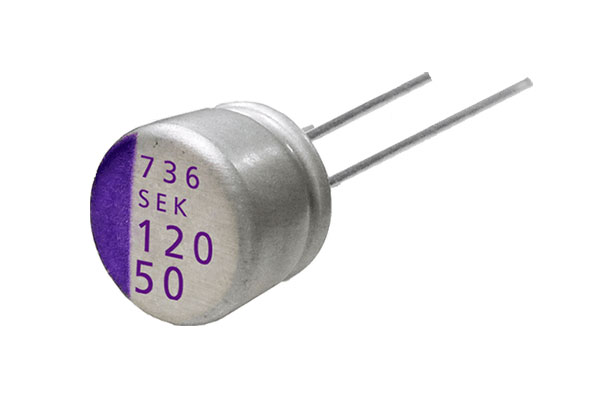

OS-CON™ SEK series

- High voltage (50V max.)
- 125°C, 1000h guaranteed

More OS-CON™ radial products

OS-CON™ SEPG series

- High ripple current

OS-CON™ SEP series

- Small size
- Large capacitance (1500µF max.)

OS-CON™ SEPC series

- Super low ESR (7mΩ max.)
- Large capacitance (2700µF max.)

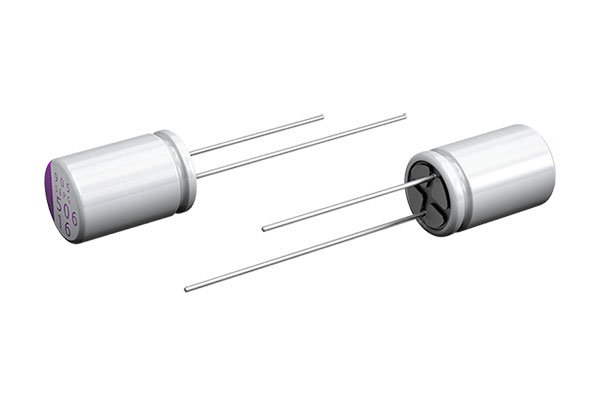

OS-CON™ SEPF series

- High voltage (35V max.)
- Large capacitance (1000µF max.)
- 105°C, 5000h guaranteed

OS-CON™ SEQP series

- High voltage (32V max.)
- 105°C, 5000h guaranteed
- 125°C, 1000h guaranteed
