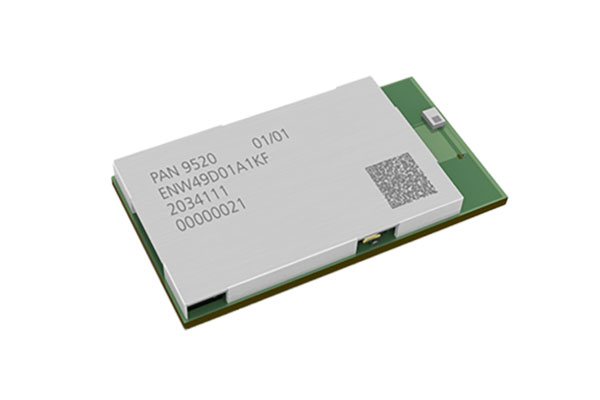

PAN9520 (ESP32-S2)
The PAN9520 is a 2.4 GHz 802.11 b/g/n embedded Wi‑Fi module based on Espressif ESP32-S2 that includes the powerful Xtensa® 32-bit LX7 CPU. An integrated chip antenna, and QSPI memory enable the module to be used in a variety of stand-alone or host-controlled applications. The integrated crystal ensures connection performance over full temperature range and lifetime.
The PAN9520 combines a high‑performance CPU, high‑sensitivity wireless radio, baseband (BB) processor, Medium Access Controller (MAC), encryption unit, ROM bootloader, chip-internal SRAM, and module-internal QSPI flash and PSRAM. Features as CCMP, TKIP, WAPI, WEP, BIP, and an AES accelerator enable the usage of secure data connections.
Parallel support of access point and station mode allows easy setup of simultaneous Wi‑Fi connections from the module to smart devices and home network routers.
Item |
Performance characteristics |
| Order number | ENW49D01A1KF (2MB PSRAM, 4 MB Flash) ENW49D02A1KF (No PSRAM, 1 MB Flash) |
| Production status | Mass production |
| RF category | Wi-Fi® Embedded 2.4 GHz 802.11 b/g/n |
| Software/profile | Espressif Integrated Development Framework |
| Used IC | ESP32-S2 |
| Rx sensitivity | -97 @ 1M-DSSS |
| Tx power max | +19.5 @ IEEE 802.11b |
| Antenna option | Ceramic Antenna |
| Size (l x w x h) [mm] | 24 x 13 x 3.1 |
| Power supply [V] | 3V - 3.6V |
| Power consumption Tx | 190mA, 802.11b @11Mb/s |
| Power consumption Rx | 68mA @802.11b |
| Power consumption sleep | Deep Sleep Mode: <100 μA |
| Interfaces | GPIO, UART, SPI, I2C, I2S, RMT, PWM, USB, LCD, ADC & DAC |
| Speciality | Integrated 40MHz Crystal; different memory variants available |
| Evaluation board | ENW49D01AZKF |
| Certification | EU CE RED / FCC / IC under preparation |
| Operating temperature | -40 to +85 °C |
| Standard packaging QTY | 1500 pcs |
Evaluation Board
The Evaluation Board for PAN9520 features
- PAN9520 module (4MB Flash / 2MB PSRAM variant)
- Segger J-Link on-board Debugger
- FTDI UART-USB converter
- Arduino UNO R3 header (Master & Slave mode)
- 4 User Buttons
- 3 User LEDs
- u.FL connector
- Native USB interface
- Camera interface
- Access to all module GPIOs
| P/N | Package includes | Stock Search |
|---|---|---|
| ENW49D01AZKF | 1x PAN9520 Evaluation Board | BUY |
Datasheet
| Name | File type | Size | Date | Language |
|---|---|---|---|---|
| WM PAN9520 Product Flyer | Flyer | 275 KB | 09.01.2023 | English |
| WM PAN9520 Product Specification | Data sheet | 2 MB | 09.01.2023 | English |
| WM PAN9520 EVB Schematics | Data sheet, Technical information | 356 KB | 01.03.2022 | English |
Guides
| Name | File type | Size | Date | Language |
|---|---|---|---|---|
| WM PAN9520 EVB User Guide | Manual, Design Guide | 2 MB | 02.03.2022 | English |
| WM PAN9520 Module Integration Guide | Manual, Manual - Technical descriptions | 1 MB | 09.01.2023 | English |
