Electromechanical and semiconductor relays

DK series: 10mm low profile 10A relay

A very low profile design measuring just 10mm in height makes the DK relay perfect for use IoT applications; a sealed type device with low coil power.

10mm low profile 10A relay for miniature IoT applications

Relay cards, slim output modules or many kinds of IoT application often require a low component height. The DK series relay, measuring just 9.7mm in height plus 0.3mm stand-offs, is the perfect solution. Even though the housing is small, strong, silver alloy contacts are capable of switching 10A for 1NO and 8A for 1NO 1NC / 2NO applications. DK relays offer 8mm creepage and clearance between the contact and coil (6.8mm for 2-pole types with 2 coils) to meet various normative requirements. Sockets that enable relays to be quickly changed are available for all types.

Key Features

  • Small housing
  • High sensitivity: 200mW (single side stable or latching type)
  • Sealed construction - RTIII
  • Low height - 10mm
  • UL/CSA, TÜV approved
  • Manual switch type available
Product Finder

Use the Product Finder to find the best product for you

product finder
Find the optimal product for your project by selecting attributes and filter criteria
Go to Product Finder

Smart home

DK power relay smart home
  • Smart plugs
  • Smart switches
  • Light-shutter controls

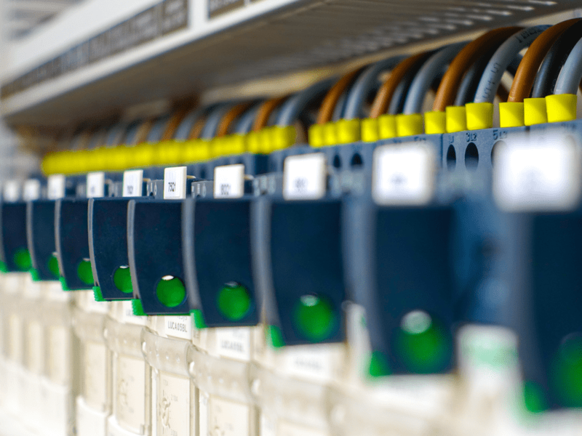

Output relays

DK power relay output relays
  • PLCs
  • Temperature controllers
  • Timers

Control relays

DK power relay control relays
  • Robotics
  • Numerical control machines
