Amorton for the indoor environment

Amorton is stable even in low or artificial light conditions, making it the ideal energy harvester for indoor wireless sensor networks.
Amorton for the indoor environment shadow

Solar power for indoor applications

Harvesting energy from light is not a new technology. But with the increased demand for Wireless Sensor Nodes in the world of IoT, also the demand for autarkic systems grows. With indoor solar cells batteries can be supported or even substituted and thus maintenance cost can be reduced. Choose a green solution for your next Home Automation or Smart Office application.

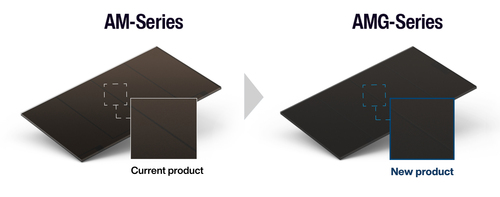

Higher efficiency and mirror-like black surface


The latest Amorton solar cell series AMG-1401C and AMG-1701C benefit from a nearly perfect black-reflective surface and 20% increase in efficiency.

View of Electrical Properties of Amorton

Amorton electrical properties

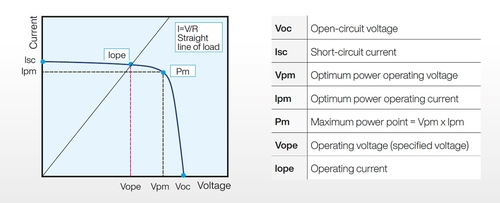

The figure to the right shows Amortonʼs electrical Properties by current-voltage curves, which change depending on the incident light intensity and on the
surrounding temperature of the solar cells.

Current drastically changes under Vpm or higher. For keeping the stable current under the anticipated illumination level, set the Vope as high as or lower than the Vpm.

Indoor glass type - Fluorescent light: 200lx (25°C)

Model without wires Model with wires Voc Isc Vmpp Impp Pmpp Vope Iope Pope External dimensions (mm)
Width x length x thickness
New AMG-Series
+20% efficiency & aesthetically improved
AMG-1401C AMG-1401CA 2.7V 43.3µA 2.1V 35.4µA 74.3µW 1.5V 40.7µA 61.05µW 41.4 x 26.1 x 1.1
AMG-1701C AMG-1701CA 4.7V 26.0µA 3.7V 22.6µA 83.6µW 3.0V 22.6µA 67.80µW 48.3 x 26.1 x 1.1
AM-1312C AM-1312CA 1.9V 17.6µA 1.5V 15.1µA 22.6µW 1.2V 16.2µA 19.4W 38.0 x 12.5 x 1.1
AM-1456C AM-1456CA 2.5V 6.4µA 2.1V 5.2µA 11.0µW 1.5V 5.9µA 8.9µW 25.0 x 10.0 x 1.1
AM-1411C AM-1411CA 2.5V 9.5µA 2.1V 7.3µA 15.4µW 1.5V 8.6µA 12.9µW 29.6 x 11.8 x 1.1
AM-1437C AM-1437CA 2.5V 9.2µA 2.1V 7.5µA 15.7µW 1.5V 8.5µA 12.8µW 29.6 x 11.8 x 1.1
AM-1407C AM-1407CA 2.5V 13.1µA 2.1V 10.9µA 22.8µW 1.5V 12.2µA 18.3µW 38.0 x 12.5 x 1.1
AM-1417C AM-1417CA 2.5V 14.1µA 2.1V 11.7µA 24.5µW 1.5V 13.3µA 20µW 35.0 x 13.9 x 1.1
AM-1424C AM-1424CA 2.5V 22.0µA 2.1V 18.3µA 38.4µW 1.5V 20.6µA 30.9µW 53.0 x 13.8 x 1.1
AM-1454C AM-1454CA 2.5V 35.2µA 2.1V 29.2µA 61.4µW 1.5V 33.3µA 50µW 41.6 x 26.3 x 1.1
AM-1513C AM-1513CA 3.1V 16.8µA 2.6V 14.0µA 36.5µW 1.8V 15.9µA 28.6µW 55.0 x 13.5 x 1.1
AM-1522C AM-1522CA 3.1V 62.2µA 2.6V 52.0µA 135.2µW 2.1V 58.7µA 123.3µW 55.0 x 40.5 x 1.1
AM-1606C AM-1606CA 3.7V 3.6µA 3.0V 3.3µA 10.0µW 2.6V 3.4µA 8.8µW 15.0 x 15.0 x 0.7
AM-1713C AM-1713CA 4.4V 16.7µA 3.6V 13.9µA 50.0µW 3.0V 15.2µA 45.6µW 96.6 x 10.0 x 1.1
AM-1719C AM-1719CA 4.4V 18.6µA 3.6V 16.3µA 58.7µW 3.0V 17.3µA 51.9µW 41.6 x 26.3 x 1.1
AM-1819C AM-1819CA 5.0V 8.1µA 4.2V 5.8µA 24.2µW 3.0V 6.9µA 20.7µW 31.0 x 24.0 x 1.1
AM-1820C AM-1820CA 5.0V 14.8µA 4.2V 12.3µA 51.6µW 3.0V 13.8µA 41.4µW 43.0 x 26.0 x 1.1
AM-1805C AM-1805CA 5.0V 16.8µA 4.2V 14.0µA 58.6µW 3.0V 15.7µA 47.1µW 55.0 x 20.0 x 1.1
AM-1801C AM-1801CA 5.0V 20.2µA 4.2V 16.8µA 70.5µW 3.0V 18.9µA 56.7µW 53.0 x 25.0 x 1.1
AM-1815C AM-1815CA 5.0V 48.2µA 4.2V 40.2µA 168.7µW 3.0V 45.7µA 137.1µW 58.1 x 48.6 x 1.1
AM-1816C AM-1816CA 5.0V 96.7µA 4.2V 80.7µA 338.7µW 3.0V 92.2µA 276.6µW 96.7 x 56.7 x 1.1
