PAN1326C2 / PAN1316C (CC2564C)

ENW89823A5KF & ENW89823C4KF

Panasonic’s PAN1326C2 / PAN1316C Series is a Host Controlled Interface (HCI) Bluetooth® Radio Frequency (RF) module that brings the CC2564C, Texas Instruments™ seventh generation Bluetooth core integrated circuit, to an easy to use module format. The PAN1326C2/PAN1316C is Bluetooth® 5.1 compliant and offers the best-in-class RF performance with about twice the range of other Bluetooth Low Energy solutions. The series comes in two versions: one with an integrated chip antenna (ENW89823A5KF) to keep the RF design effort to a minimum and one with an RF bottom pad (ENW89823C4KF) if radio hostile circumstances require an external antenna.

Technical Specification


Performance characteristics

Order number

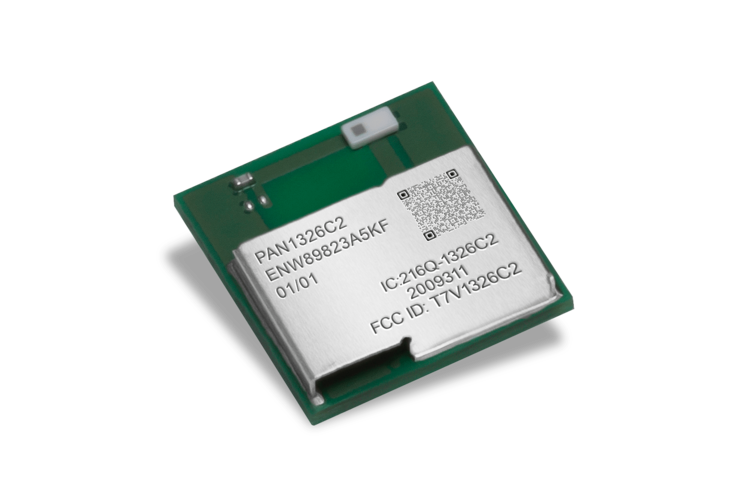

ENW89823A5KF (with Chip Antenna)

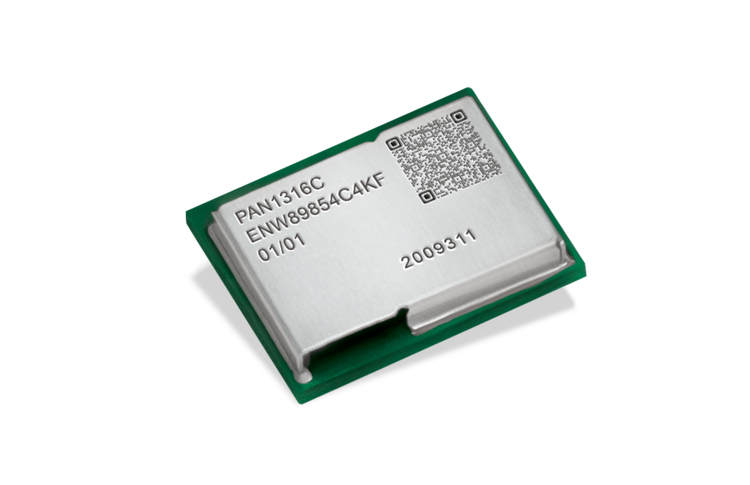

ENW89823C4KF (RF Bottom Pad)

Production status Mass production
RF category Bluetooth® 5.1 dual mode (BR, EDR, Bluetooth® LE)
Software/profile HCI, Init Script by TI, Bluetooth Stack by TI
Used IC CC2564C
Rx sensitivity -90 dBm@1Mb/s
Tx power max

+8 dBm (Chip Antenna)

+11.5 dBm (RF Bottom Pad)

Antenna option Ceramic Chip Antenna, External Antenna over RF Bottom Pad
Size (l x w x h) [mm]

9.0 x 9.5 x 1.8 (ENW89823A5KF)

9.0 x 6.5 x 1.8 (ENW89823C4KF)

Power supply [V] 1.7 to 4.8
Power consumption Tx 40 mA @8dBm (3.3V)
Power consumption Rx 20 mA (3.3V)
Power consumption sleep Deep Sleep Mode: 105 μA
Interfaces GPIO, UART, PCM
Speciality Small size, Bluetooth dual mode
Certification EU CE RED / FCC / IC (ENW89823A5KF only)
Operating temperature -40 to +85 °C
Standard packaging QTY 1500 pcs


Start prototyping by purchasing the Evaluation Kit!

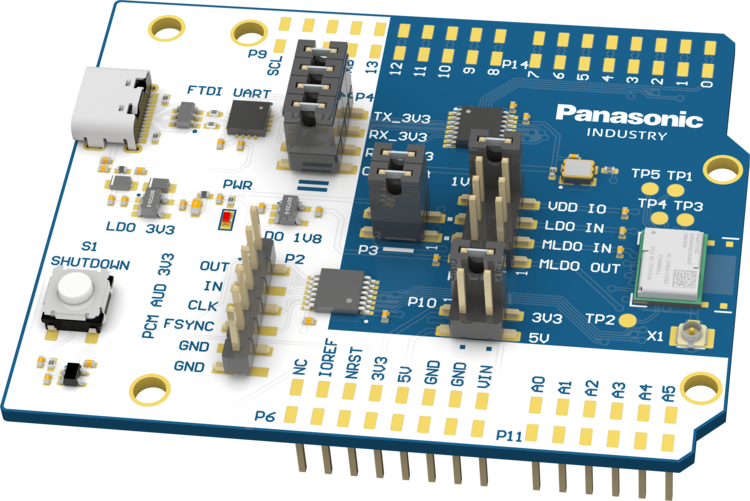

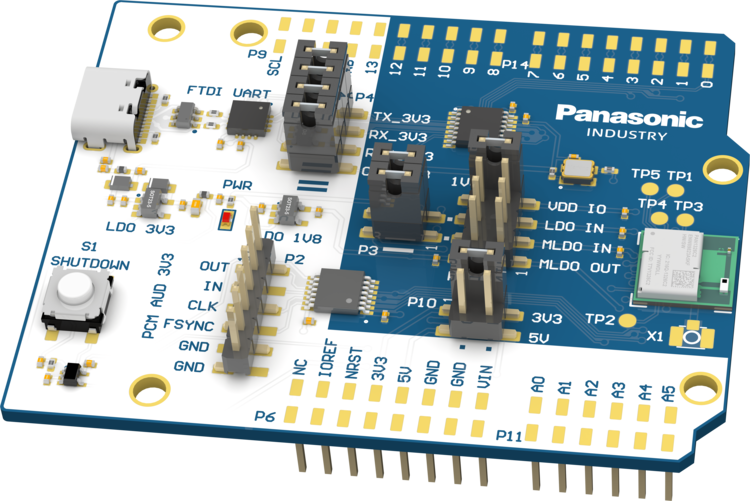

You can evaluate the PAN1326C2 or PAN1316C easily with the dedicated PAN1326C2 EVB (ENW89823AXKF) and PAN1316C EVB (ENW89823CXKF). You can connect the evaluation board to a PC using the USB-C connector to access the UART interface or stack the evaluation board as an Arduino shield to a compatible host controller board or access the pins via jumper cables.


  • Arduino shield interface

  • FTDI USB to UART Interface

  • UART accessible via pin headers

  • PCM audio interface accessible via pin headers

  • Dedicated shutdown button

  • 32kHz slow clock

  • 1.8 V to 3.3 V level shifter

P/N Package includes Stock Search
ENW89823AXKF  1x PAN1326C2 Evaluation Board BUY
ENW89823CXKF  1x PAN1316C Evaluation Board with an additional W1030 Pulse terminal hinge antenna + micro coax cable BUY


Get Started!

For starting developing your application please have a look at the PAN1326/ PAN1316 User Guide.
