ER-X ionizer
Features
ER-X series ionizers were conceived with wide surface areas in mind. To achieve optimal charge removal of surfaces, various concepts were considered. Besides operation using variable air pressure (from airless to 5 bar air pressure), discharge frequency and ion balance can be set manually. Naturally the ionizers can also be operated in automatic mode.
Other advantages include four different head sizes, from 160mm to 640mm in length, and the ability to connect up to two heads to one controller. Hence areas up to 1.2m wide can be handled. The heads feature an angle adjustment of 360° permitting the best possible charge neutralization.
Characteristics:
- Manual mode (discharge frequency and ion balance)
- Easy maintenance
- Up to two heads can be connected to one controller
Accessories:
- Replacement discharge needle unit
- Power cables
Specifications - Heads
| Heads | ER-X001 | ER-X008 | ER-X016 | ER-X032 | ER-X048 | ER-X064 |
|---|---|---|---|---|---|---|
| High / low temperature resistant head *) | ER-X008HC | ER-X016HC | ER-X032 HC | ER-X048 HC | ER-X064 HC | |
| Type | Wide area ionizer | |||||
| Effective charge removal width | 50mm | 80mm | 160mm | 320mm | 480mm | 640mm |
| Ion balance | Max. +/- 30V | |||||
| Discharge method | Pulse AC | |||||
| Ozone concentration | Max. 0.01ppm | |||||
| Air pressure | Filtered air, max. 5bar | |||||
*) The ER-X□HC high / low temperature resistant head can be used in a temperature range from -60°C to +200°C. Use this head in combination with the new controller ER-XC02 (produced from April 2016 onwards).
Specifications - Controller
| Controller | ER-XC02 |
|---|---|
| Max. no. of connectable heads | 2 |
| Power supply voltage | 24V DC +/- 10% |
| Display | Display status for heads 1 and 2 (operation status, check, error, ion generation monitor and charge level monitor) |
| Output | PhotoMOS, max. 100mA (check and error) |
| Input | Activate/deactivate discharging needles |

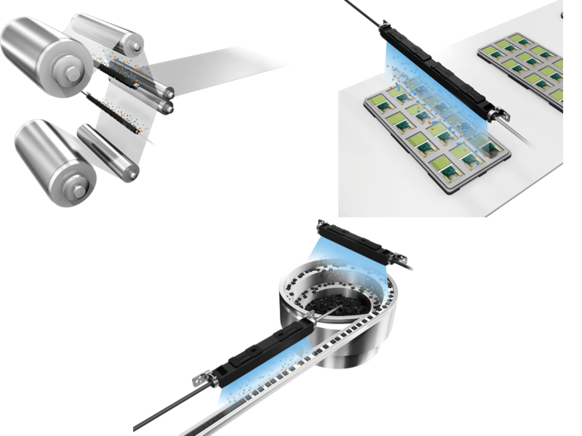

Applications
- Neutralization of foil during production processes
- Removal of static electricity from IC components in trays
- Neutralization of small electronic components (without compressed air)
