Battery & charger

A fast and safe way to power up your E-Bike.
e-bike battery-red header shadow

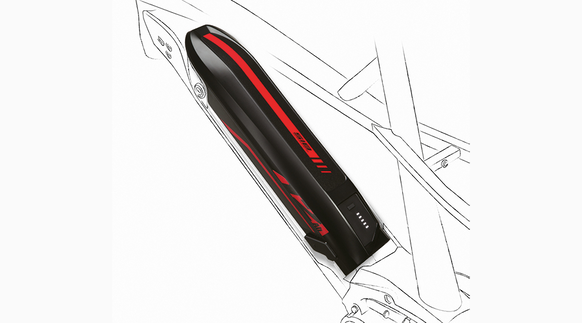

Semi-integrated battery

Panasonic produces the highest quality Lithium-ion technology cells that have no memory effect for a sophisticated E-Bike design.

The integrated battery management system with charge control protects the battery from over-voltage, over-current, deep discharge and short-circuit failure modes.

The cell type 20700 was developed for a compact battery design. It is the first time that these cells are being used for semi-integrated batteries.

For longer storage (e.g. over the winter) the system can go into sleep mode to minimize deterioration of battery.

Semi-integrated battery specifications
Voltage 36V 36V
Capacity 8Ah 12Ah
Energy 288Wh 432Wh
Weight Approx. 2.5kg Approx. 3.4kg

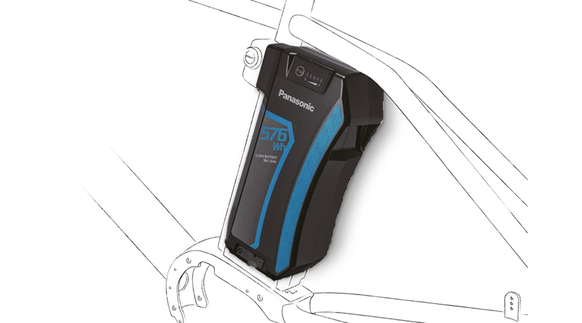

Curved upright battery

e-bike curved-upright-battery

This battery technology provides a high capacity as well as the highest quality and safety with an optimal design.

Curved upright battery specifications
Voltage 36V
Capacity 16Ah
Energy 576Wh
Weight Approx. 4.3kg

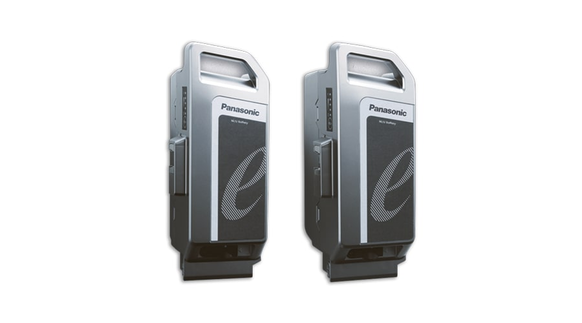

Upright battery

E-Bikes uprights batteries

This battery technology provides a high capacity as well as the highest quality and safety with an optimal design.

Upright battery specifications
Voltage 36V 36V 36V
Capacity 12Ah 15Ah 18Ah
Energy 432Wh 540Wh 648Wh
Weight Approx. 3.2kg Approx. 3.8kg Approx. 4.4kg

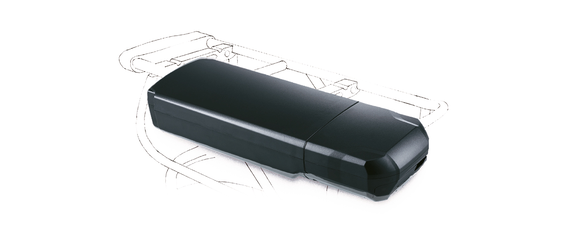

Rear carrier battery for comfort- & trekkingbikes

e-bike rear-carrier-battery

Available as spare parts.

Rear carrier battery specifications
Voltage 36V 36V 36V 36V
Capacity 6.6Ah 8.8Ah 11Ah 13.5Ah
Energy 238Wh 317W 396Wh 486Wh
Weight Approx. 3.0kg Approx. 3.2kg Approx. 3.7kg Approx. 4.0kg

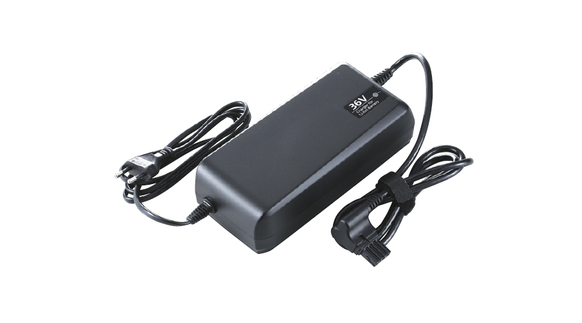

E-Bike charger

E-Bike charger

The Panasonic charger allows the battery to be charged while it is still attached to the bike.

Battery charger for 36V batteries specifications
Charging current 4A
Weight Approx. 820g
Dimensions: (L x B x H) 180 x 90 x 48mm
Charging time (12Ah) Approx. 3.0h until 80%
Approx. 5.5h until 100%
