GT12 touch terminal

Clear and beautiful LCD display with a resolution of 320 x 120 pixels. Easy screen transfer thanks to SD card, fast wiring thanks to smart connector position.
GT12 touch terminal shadow


The GT12 series provides a clear and beautiful LCD display with a half QVGA resolution of 320 x 120 pixels and includes 8 different models. The first SD memory card slot in the four-inch class allows for easy screen data transfer. A variety of other needs from manufacturing sites were also covered, including the connector location for efficient wiring, improved environmental resistance rated IP67, and newly designed bracket for more secure fastening. You can choose models with RS232C or RS422/485 interface, and the silver colored or black housing.

3 background colors

HMI GT12 3 background colors Panasonic Industry

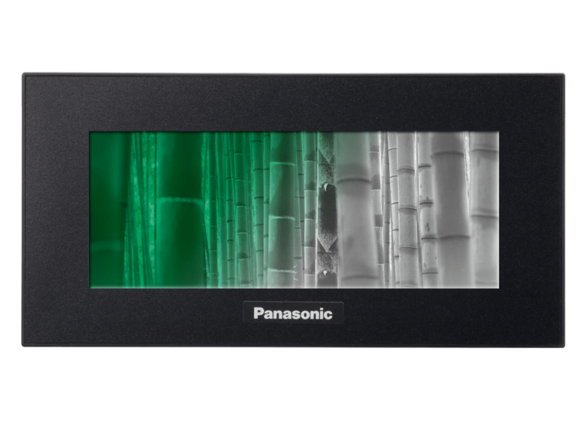

The bright and easy-to-read LCD displays messages, graphics, switches, lamps, PLC data, graphs, clocks, etc. in any layout you choose. In addition, you can select from two different models with three backlight colors, which allows you to identify the machine status at a glance: GT12G1 (green, red, orange) and GT12M1 (white, red, pink).

Mini USB interface and SD memory card

HMI GT12 Mini USB interface and SD memory card Panasonic Industry

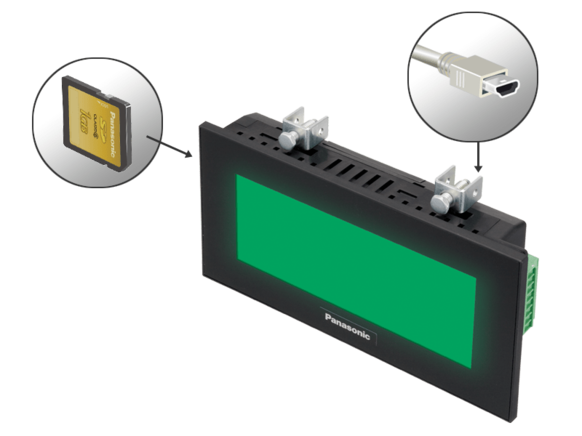

This model is equipped with a mini USB interface for fast data transfer without a dedicated cable. The use of SD memory cards makes copying screen data between GT12 terminals easy. You can also store firmware on the SD memory card. The GT12 series supports SD memory cards with a maximum of 16 GB.

Multi-language function

Different Flags from USA, France, Italy, Germany, United Kingdom and Spain

Using the multi-language function, you can easily translate all texts in the application to other languages. The multi-language exchange string list for switching the language display can be edited in Excel and imported. A maximum of 16 languages can be created for an application.


HMI GT series through function Panasonic Industry

Communication can be set to take place automatically between the COM and TOOL ports using the “through-function”. When the FP series tool software installed on the computer connected to the GT series as shown below is booted, PLC programs can be edited via the GT panel. The through-function does not require any special settings and is always in standby mode.

Multi connection

HMI GT series multi connection Panasonic Industry

As a new feature, one GT12 unit can be connected to multiple PLC units. In combination with the GT link function, a centralized monitoring or remote function operation of multiple machines is possible from one location.

Key features

  • 4.6-inch STN monochrome/8-bit gray display
  • Resolution: 320x120 dots
  • Resistance rate: IP67
  • Mini USB interface
  • SD memory card slot (16 GB max.)
  • Dimensions: 146 x 74 x 30 mm
  • Graph, recipe and flow display function
  • Through function for simultaneous debugging of the GT and PLC
  • GT link function – up to 32 Panasonic HMIs can be connected to one PLC
  • Multiple PLCs – up to 31 Panasonic PLCs can be connected to one HMI
  • Numerous 3D objects for a realistic appearance
  • Isolated power supply for enhanced reliability


Main units GT12G GT12M
Rated voltage 24V DC
Screen size (WxH) 4.6'' (108.8 x 40.8mm)
Display device STN monochrome LCD
Display color 2 colors (black/white)
Resolution (WxH) 320 x 120 dots
Backlight 3-color LED (green/orange/red) 3-color LED (white/red/pink)
Numbers of characters 384
Memory capacity (F-ROM) 2,048kB
External interface
Serial port RS232C / RS422 (RS485)
USB port X
Ethernet --
SD memory card X
Sound output jack --
