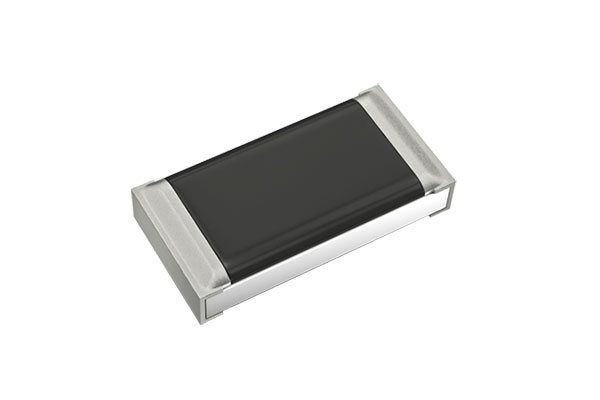

Small, high power chip resistors

Optimizing the resistance pattern and material plus clever electrode design increases heat dissipation. This enables size reduction and a higher power rating, resulting in smaller, lighter designs
resistors smd small-high-power

Features

The lineup includes a high voltage series with pulse characteristics that are superior to general purpose types.



Our top products

resistors smd small-high-power
Small & high power chip resistor

Anti-surge high power thick film chip resistors

Panasonic anti-surge resistors offer superior anti-surge characteristics, along with the higher power range.
resistors smd small-high-power
Small & high power chip resistor

Anti-pulse high power thick film chip resistors

Panasonic anti-pulse resistors offer superior anti-pulse characteristics, along with the higher power range.

Use the Product Finder to find the best product for you

product finder
Find the optimal product for your project by selecting attributes and filter criteria
Go to Product Finder
