Motors for refrigeration
Line-up of refrigeration fan motor
Panasonic offers a wide range of variable-speed fan motors to meet the requirements of refrigerator manufacturers.
Our motors are designed to provide exceptionally high operating efficiencies as well as low vibration levels. Due to our design flexibility these motors can also be used in a wide range of other applications.
|
Motor type |
AC input DC drive | DC input DC drive | |
| Model type | QJ | QG | QB |
| Rated Voltage (Electric power supply) |
AC100V/115 V AC220/230 V |
AC100V/115 V AC220/230 V |
DC12 V |
| Speed Control Interface | - | - | PAM PWM |
| Output | 2 W | 2 W | 2 W |
| Suitable fan size | 80-120 mm diameter | 140-170 mm diameter | 80-160 mm diameter |
| Application | Evaporator | Condensing | Evaporator・Condensing |

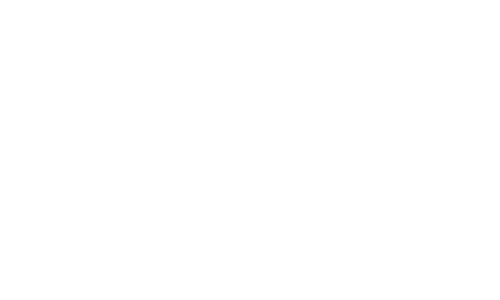

QJ motor
AC input DC drive
Features
- High Reliability: Coil Mold type
- Energy Saving: High Efficiency
- Easy replacement from the shaded pole motor
- Stronger design for voltage unstable
Specifications
- Rated Voltage: AC 100V/115V, AC220/230V
- Ambient Temperature: -30°C ~ +40°C
- Adaptation fan size: Ø80 ~ Ø120 (Axial Fan)
Applications
- Evaporator of Refrigerator
- Other freezer and cooling unit

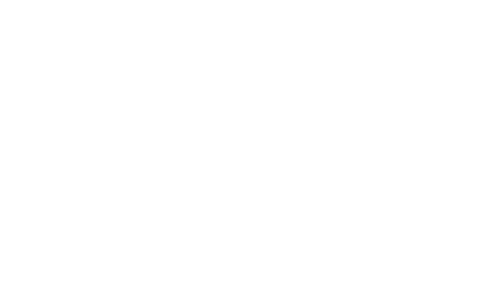

QG motor
AC input DC drive
Features
- Energy Saving: High Efficiency
- Quality: High reliability
- Easy replacement from current motor
- Stronger design for voltage unstable
Specifications
- Rated Voltage: AC 100V/115V, AC220/230V
- Ambient Temperature: 0°C ~ +60°C
- Adaptation fan size: Ø145 ~ Ø168 (Axial Fan)
Applications
- Condenser of Refrigerator
- Other compressor and cooling unit

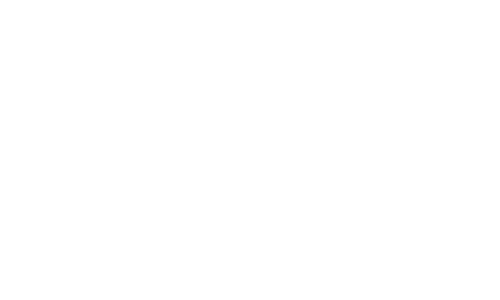

QB motor
DC input DC drive
Features
- High reliable coil & circuit mold type
- Energy saving: High efficiency
- Protection & function: Lock protection, Thermal shutdown, Soft start
Specification
- Rated Voltage DC 12V
- Ambient Temperature: -30°C ~ +40°C (Evap.) , 0°C ~ +60°C (Cond.)
- Adaptative fan : Ø80～Ø168 (Axial)
Applications
- Evaporator and condenser of Refrigerator
- Other freezer and cooling unit
