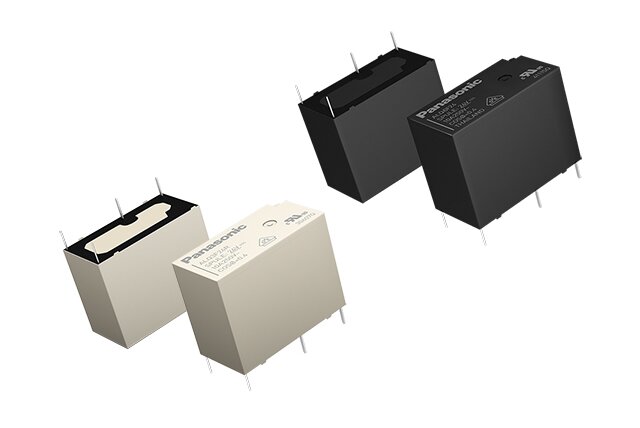

LQ power relay
10A Power Relays: Reflow processable universally applicable relay
The LQ relay is the universal talent among power relays. Both 1FormA and 1FormC types comply with IEC/EN60335-1 for household applications, can be used up to 105°C and offer a high dielectric strength voltage between contact and coil of 4,000 Vrms. To meet the requirements of modern manufacturing processes,LQ series is available as PiP reflow type.

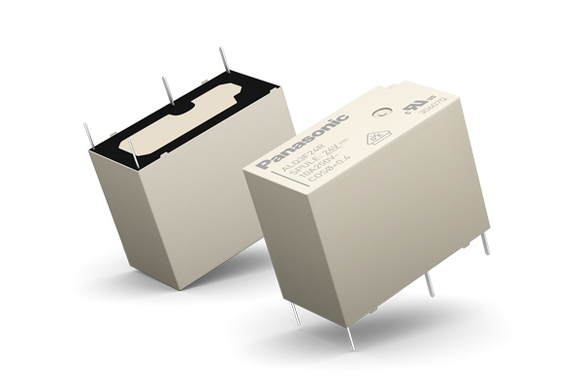

Key Features Standard Type
- Small size 20 x 10 x 16mm
- 10A 125VAC, 8A 250VAC, 5A 30VDC
- 1FormA, 1FormC
- Ambient temperature up to 105°C
- Reflow solderable
- 8,000 V surge withstand voltage between contact and coil
- UL, C-UL, VDE approved
Improved High Inrush Current & Reinforced Insulation Type
The increasing degree of automation especially for motor or LED lighting control demands switching solutions with high inrush current capability. ALQ6 type, a member of the LQ relay family, can handle an inrush current up to 40A for 100μs for a capacitive load in the same small housing as the standard version.
Moreover, ALQ6 offers increased creepage and clearance distance between contact and coil of minimum 5.5mm which helps to meet various safety standards.

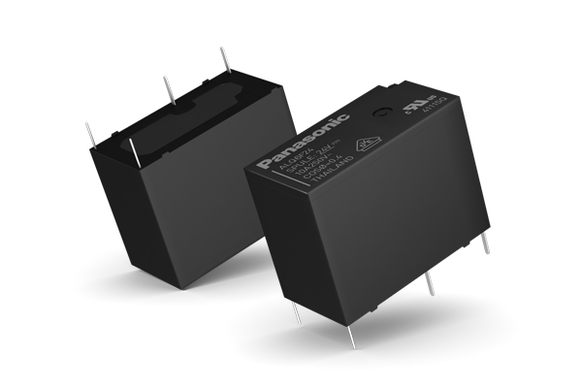

Key Features High Inrush & Reinforced Insulation Type
- Small size 20 x 10 x 16 mm
- 10A 125VAC, 8A 250VAC, 5A 30VDC
- 1FormA
- Capacitor load: Inrush 40A /100μs
- TV 3: Inrush 30A
- Motor load: Inrush 30A/0.5s
- Refinforced insulation between contact and coil ≥ 5.5mm
- UL, C-UL, VDE approved
