IR Thermophile Array Sensor – Grid-EYE

64-Pixel infrared array temperature sensor

Introduction

Panasonic Grid-EYE is Infra-Red sensor comprised of 64 individual Thermopile elements arranged in an 8x8 matrix. The sensor comes in a compact surface mount package and can be very easily integrated into IoT applications. Infra-red signals are used to detect heat sources and measure temperature.

The integrated lens in Grid-EYE focuses the infra-red in the field of view (FoV) on to the sensor elements. This generates voltage differences between electrodes of individual Thermopile elements, which can be converted to temperature information.

Grid-EYE’s integrated ASIC performs some core functions to enable sensor’s performance–pixel readouts, analog amplification, analog to digital conversion, sensitivity correction, correction for temperature effects, and digital readout over I2C bus. Furthermore, Grid-EYE is available in high or low gain variants.

Key features of Grid-EYE sensors

Low-Cost Surface Mount Components
Small package (11.6mm x 8mm x 4.3mm)
Package with 64 Thermopile MEMS pixels in 8x8 matrix
Panasonic’s custom ASIC to handle core sensor functions
Integrated lens with different FoV’s: 36°C, 60° and 90°
Simple digital readout of temperature data over I2C interface
Selectable frame-rate on the readout: 1 Hz or 10 Hz
People tracking & counting algorithms for privacy enabled detection.

For variant information, please consider the part number table below.

Ordering information

Product Name	Type	Field of view	Amplification Factor	Operating Voltage	Part Number	Temperature of measured object
Grid-EYE	Narrow angle	35.6	Low Gain	3.3V	AMG883642	-20 to 100°C
	Standard Type	60°	High Gain	3.3V	AMG8833	0 to 80°C
			Low Gain	3.3V	AMG8834	-20°C to 100°C
			High Gain	5V	AMG8853	0 to 80°C
			Low Gain	5V	AMG8854	-20 to 100°C
	Wide AngleϮ	90°	High Gain	3.3V	AMG883543	0 to 80°C
	Wide AngleϮ	90°	High Gain	5V	AMG885543	0 to 80°C

Ϯ: Contact Panasonic for more details

Application types

Grid-EYE

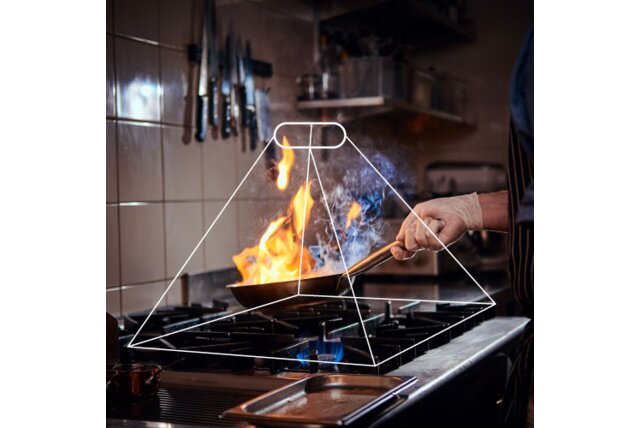

Absolute temperature measurement

For applications that require to know temperature of objects.
Typical applications include kitchen alarms, microwave ovens, etc.

Grid-EYE

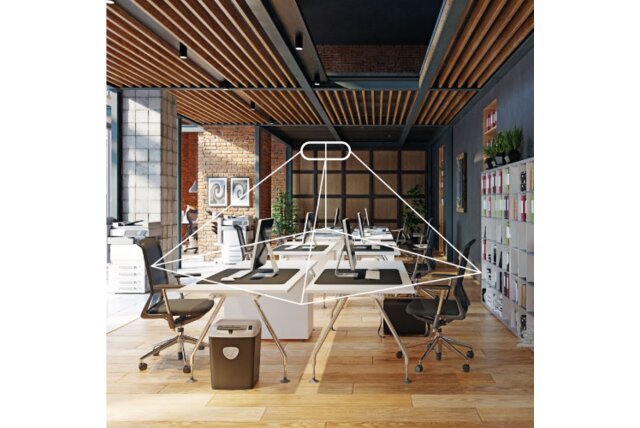

Temperature gradient measurement

For applications that require counting and tracking of people or objects.
Typical applications include smart lighting, meeting rooms occupancy meters, etc.

Panasonic TrackME

Panasonic provides multi-level API for Grid-EYE that allows for quick prototypes for people counting and tracking application. This can be downloaded from the Downloads section.

The software section Level 1 and 2 are part of the software package available from Downloads section.
Level 3 pertains to a people tracking algorithm shipped under the label of TrackMe. This is only available under an SLA.

Do you need a SLA?

Level 3 people tracking algorithm

Start an SLA here
