FX-500 photoelectric sensor

The industry’s leading fiber amplifier in sensing performance.
Photoelectir sensor FX-500 / FX-550 / FX-550L shadow

The industry’s leading fiber amplifier in sensing performance

Thanks to its new “application-specific integrated circuit” (ASIC), Panasonic can solve applications with fiber optic sensors that were previously impossible. Not only can the FX-500 reach a response time of 25µs while providing extremely accurate detection, integrated logic functions save you money because external controllers are no longer needed for normal applications and threshold tracking and self-diagnostic functions save time for maintenance. Moreover, the reliability of the detection has increased by 75% compared to that of previous models.

The customer can choose between digital output types with one or two outputs, or an analog output type.


  • One 4-digit green, one 4-digit red LCD display
  • Copy settings via optical interface
  • Decreased variations among amplifiers
  • Input for external settings, i.e. threshold value (not available for FX-501)
  • Up to 8 settings can be saved and loaded (data bank)
  • Logical calculation functions
  • Light intensity and gain setting for transparent object detection
  • Threshold tracking
  • Self-diagnosis output
  • Display easy readable at angles of up to 60°
  • Superior quality fibers (listed in the FX-500 brochure)


  • Quick connection cables in lengths of 1, 2 or 5m
  • End plates
  • Protection cover
Product Finder

Use the Product Finder to find the best product for you

product finder Panasonic Industry
Find the optimal product for your project by selecting attributes and filter criteria


Sensors Fiber FX-500 applications Panasonic Industry

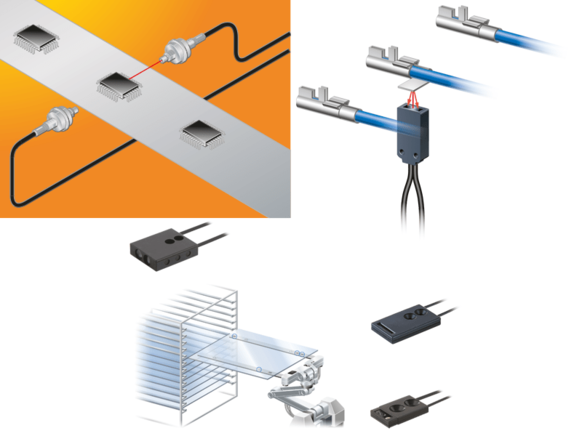

  • Counting of IC pins
  • Check crimping
  • Glass substrate sensing
