WiFi 6E: PAN W601-1x - Coming Soon
Product information

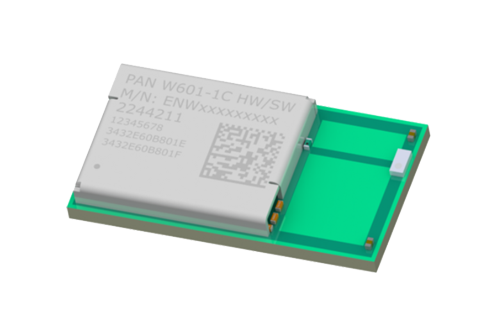

The PAN W601-1x is a tri band 2.4 GHz, 5 GHz and 6 GHz Wi-Fi 6 companion module with integrated Bluetooth BDR/EDR/Low Energy (LE).
The companion module connects via SDIO or PCIe for Wi-Fi and HS UART for Bluetooth to any Linux or Android driven host platform to enable seamless wireless communication. In a compact form factor the module either comes with an integrated chip antenna or the option to connect an external antenna via the bottom pad. The solution is targeted to be certified for CE RED, FCC, ISED, MIC and RCM.
item |
Performance characteristics (Preliminary Informations) |
|---|---|
| RF category | Wi-Fi® 6E (802.11 a/b/g/n/ac/ax) & Bluetooth® 5.3 (BR, EDR, LE) |
| Frequency [GHz] | 2.4, 5 & 6 |
| Integrated IC | SYN43711 |
| Software | Linux / Android / selected MCUs |
| Antenna option | Integrated chip (PAN W601-1C) Bottom pad (PAN W601-1B) |
| Ext. certified antenna types | (Flex)PCB / Terminal* |
| Planned Certification | CE RED, FCC, ISED, MIC, RCM* |
| Operating temperature [°C] | -40 to +85* |
| Host Interfaces | PCIe2, UART, I2S, SDIO3 |
| Size [mm] | 12.2 x 9.9 x 2.55 (PAN W601-1B)* 14.0 x 9.9 x 2.55 (PAN W601-1C)* |
| Production status | In Development |
*subject to change
Timeline
| EVB M.2 KeyE Card | Available on request. Please reach out to Panasonic Sales |
| Mass Production | Q3 / 2025 |
The PAN W601-1x features Synaptics SYN43711 system on chip (SoC).
► 2.4 GHz and 5 or 6 GHz bands simultaneously
► Allows multiple concurrent Bluetooth connections and audio streams incl. LE Audio support
► Synaptics Smart Co-Ex for best-in-class coexistence of Wi-Fi and Bluetooth radios in the 2.4 GHz band
