PAN1780 Wirepas Mesh Demo Kit

Panasonic Industry and Symbiotech release Wirepas Mesh Demo Kit for flagship module PAN1780, allowing IoT applications a groundbreakingly flexible setup of mesh networks.

Ready to set up a Wirepas Mesh network for various purposes in just a few steps?

The PAN1780 Wirepas Mesh Demo Kit comes as ready-to-use Evaluation Tool based on the PAN1780’s high quality hardware design in combination with Symbiotech’s tailored software design and the Wirepas Mesh connectivity stack, based on multi-hop wireless mesh technology.

The kit contains four battery-powered sensor nodes and one sink serving as a border router.

  • Sensor node with a long wireless transmission range (thanks to the optimised chip antenna of the PAN1780)
  • Wirepas Mesh stack for Automatic Mesh networking performance – no configuration on field necessary
  • Downloadable sink software package for easy demo set-up
  • User interface for controlling and monitoring sensor data or network health

Learn more on the Panasonic Industry PAN1780 and the Wirepas Mesh firmware.
Visit www.symbiotech.com to learn more about our IoT software partner’s capabilities.

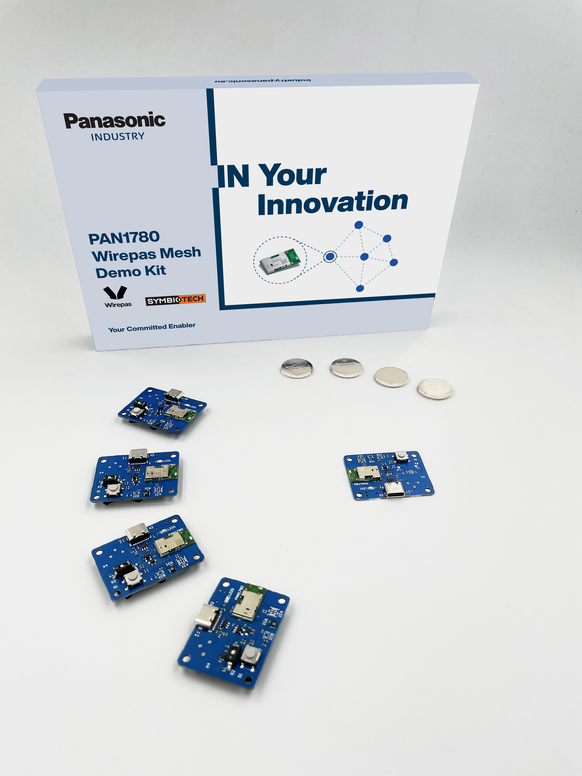

Content of PAN1780 Wirepas Mesh Demo Kit

4x PAN1780 pre-flashed Sensor Boards as Mesh Nodes from Panasonic Industry

1x PAN1780 Sink as Gateway

4x Panasonic CR2032 Batteries for battery operated operation

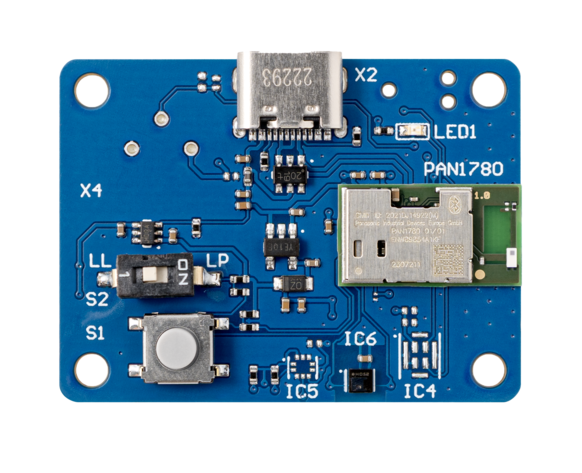

Sensor Node Features

  • Temperature sensing via HTS221 sensor
  • Switchable operation modes via SPDT switch (Low Energy or Low Latency)
  • Coin cell holder for battery-powered operation
  • USB-C connector for power supply
  • 6-Pin SWD for flashing customized Wirepas applications
  • User LED controllable from the web user interface
  • Can be optionally assembled: Panasonic PIR sensor, pressure sensor (LPS22HH), digital microphone (MP34DT05-A)

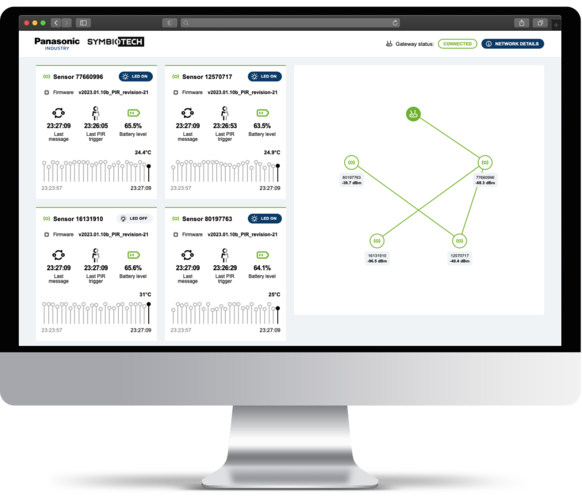

User Interface

  • Local running Wirepas Mesh server
  • Dynamic connection diagram of the current Wirepas Mesh network
  • Display of sensor values of individual nodes and their battery health values
  • Control of LEDs on individual nodes

Technical Documentation

Technical DocumentationGet all the technical information on the PAN1780 Wirepas Mesh Demo Kit here!

Contents of the Wireless Connectivity Development Hub:

  • User Guide
  • Quick Start Tutorial
  • Downloadable schematics of the Sensor Nodes as reference design

Click here for more information.

Energy Efficiency

The combination of Panasonic Industry’s IoT technology, PAN1780 PAN1770 BLE modules and wireless communication protocols by Wirepas leverages the ability to monitor, control, and optimize lighting conditions while improving energy efficiency, enhancing user experience, and enabling additional applications beyond basic illumination.

This smart lighting system can be applied to public infrastructure, such as street lighting but also in public or office buildings. The system can optimize lighting conditions by adapting to many factors like occupancy patterns, time of the day etc. and improve energy efficiency.

The PAN1780 Wirepas Mesh Demo Kit allows you to set up a Wirepas Mesh network at any time and at any place in just a few steps.

Get your Demo Kit

Get your Demo Kit

Start evaluating Wirepas Mesh with the PAN1780 Wirepas Mesh Demo Kit.
Buy

Empowering with Mesh Software: Our Kit Partners

Wirepas

Wirepas

Robust mesh technology for scalable and reliable wireless IoT networks. Empowering your IoT vision.
Symbiotech

Symbiotech

Symbiotech specializes in the world's most advanced mesh networking technologies.
