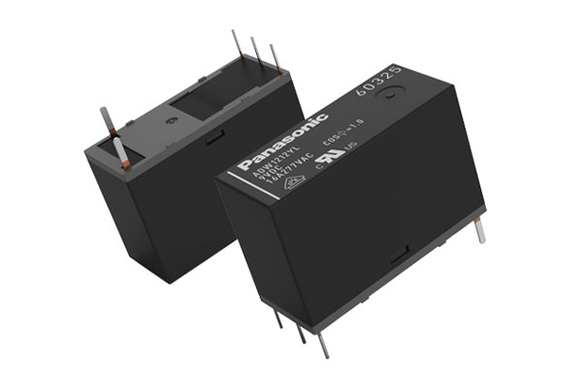

DW-YL relay: high inrush type
Handling 320A inrush current within a small footprint component
The DW series is an up-to-20A latching relay that offers a wide range of ratings and standards. It can handle up
to 320A for 1.2ms, making it ideal for capacitive loads and scenarios with high inrush currents. This provides
our customers with great flexibility in a variety of applications. Additionally, the relay features a low height of
just 15.8mm and a small PCB footprint, enabling a compact design.
Key Features
- Small area on PCB - 10mm width
- Sensitive coil, low power consumption
- TV8 rating
- High Inrush capability up to 320A
- Low profile type (height = 15.8mm)
- UL/C-UL, VDE certified
Downloads
| Name | File type | Size | Date | Language |
|---|---|---|---|---|
| Data sheet: Polarized Power Relays. High Inrush Type DW-YL (Power Relays (Over 2A)) | Data sheet | 2 MB | 11.09.2024 | English |
| Fighting card: Polarized Power Relays. High Inrush Type DW-YL | Flyer | 779 KB | 12.06.2024 | English |
