M-SELECT software

M-SELECT is a free software to help you select the correct motor capacity and servo driver from the MINAS series.

Simply download the M-SELECT software from the download center

Find the optimal type of motor with regards to the mechanical layout and the dynamic requirements. It is a very valuable tool for mechanical engineering as it also provides CAD data in 2D and 3D. The software offers a complete analysis and detailed usage instructions for the MINAS series in all sizes.

Software for designing drives

M-SELECT is a software program to help you select the correct motor capacity and servo driver from Panasonic's MINAS series. Find the optimal type of motor with regards to the mechanical layout and the dynamic requirements. It is a very valuable tool for mechanical engineering as it also provides CAD data in 2D and 3D. The software offers a complete analysis and detailed usage instructions for the MINAS series in all sizes.

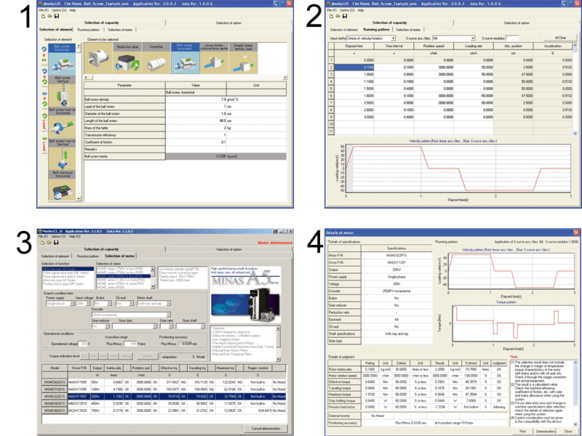

Selecting the motor capacity in just four steps:

Servo drives software M-SELECT selecting the motor capacity in just four steps
  1. Select mechanical parts and input their parameters
    The user can select parts from a database with all mechanical standard parts (gears, coupling, spindle axis, etc.).
  2. Determine the motion profile
    Display and determine speed, position and ramps, etc.
  3. Select the correct motor series
    › 1- or 3-phase
    › Input voltage
    › Specify torque, etc.
    The software calculates the parameters for the selected series. The various criteria are evaluated with OK or NG (not good).
  4. Result
    Check and print result

Downloads

Name File Type Size Date Language
PDF MINAS A6 - Additional technical information for catalogue MINAS A6 - Servo drives (4247) Catalog 8.9 MB 27.10.2021 English
PDF MINAS A6 - Servo drives, 4247euen Catalog 29.1 MB 20.10.2021 English
PDF MINAS A6 - Servoantriebe, 4247euen. Note: Updated version of Oct/2021 currently only in English available! Catalog 6.1 MB 15.10.2020 German
ZIP MSELECT (for MINAS A4/A5/A6 series),Ver. 3.1.9.0, Motor Sizing Tool, this software works with Windows 7, 8.x, 10. Software 51.5 MB 20.07.2020 English
PDF Soluzioni Compact Motion - Dedicate ai costruttori di macchine, MC09/2018-2000 Catalog 7.6 MB 03.09.2018 Italian
