PAN9026 (88W8977)
ENWF920xA1EF
EOL

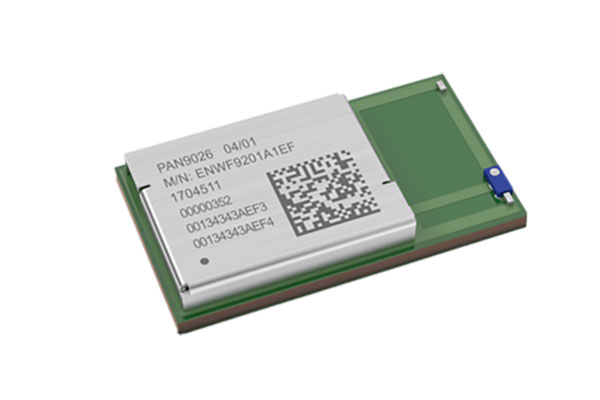

The PAN9026 is a dual-band 2.4/5 GHz 802.11 a/b/g/n Wi-Fi 4 radio module with integrated Bluetooth® BDR/EDR/LE, specifically designed for highly integrated and cost-effective applications. The simultaneous and independent operation of the two standards enables high data rates (802.11n) and low-power operation (Bluetooth® Low Energy). Furthermore, the module reduces design, test, and calibration effort, resulting in reduced time-to-market compared to discrete solutions.
Technical Specification
Item |
Performance characteristics |
| Order number | ENWF9202A1EF (EU) ENWF9201A1EF (US) ENWF9203A1EF (CA) ENWF9208A1EF (Multi-region) ENWF9209A1EF (No certification) |
| Production status | End of Life |
| RF category | Wi-Fi® Radio 2.4 GHz & 5.0 GHz 802.11 a/b/g/n; Bluetooth® 5.0 (BR, EDR, LE) |
| Software/profile | i.MX RT series: MCUXpresso IDE Linux driver |
| Used IC | 88W8977 |
| Rx sensitivity | -98 @ 1M-DSSS |
| Tx power max | +17 @ IEEE 802.11b |
| Antenna option | Ceramic Antenna and bottom pad via SPDT switch |
| Size (l x w x h) [mm] | 17.5 x 10.0 x 2.6 |
| Power supply [V] | 1.8 to 3.3 |
| Power consumption Tx | 175mA, 802.11b @11Mb/s (1.8V) |
| Power consumption Rx | 65mA @802.11b (1.8V) |
| Power consumption sleep | Power Down Mode: 150μA |
| Interfaces | SDIO 3.0, HS UART, PCM |
| Speciality | Multiregion certification in one PN Integrated 32kHz Crystal Small size |
| Certification | EU CE RED / FCC / IC |
| Operating temperature | -30 to +85 °C |
| Standard packaging QTY | 1000 pcs |
Evaluation Boards
SDIO Adapter
- PAN9026 module (US-variant)
- SDIO host interface
- U.FL connector
- PCM Interface / GPIOs
- Reset button
- Power Management
MicroSD Adapter
- PAN9026 module (US-variant)
- MicroSD host interface
- HS UART interface (only ENWF9201ACEF variant)
- U.FL connector
- Power Management
| P/N | Package includes | Stock Search |
|---|---|---|
| ENWF9201AZEF | 1x SDIO Adapter with PAN9026 - US | |

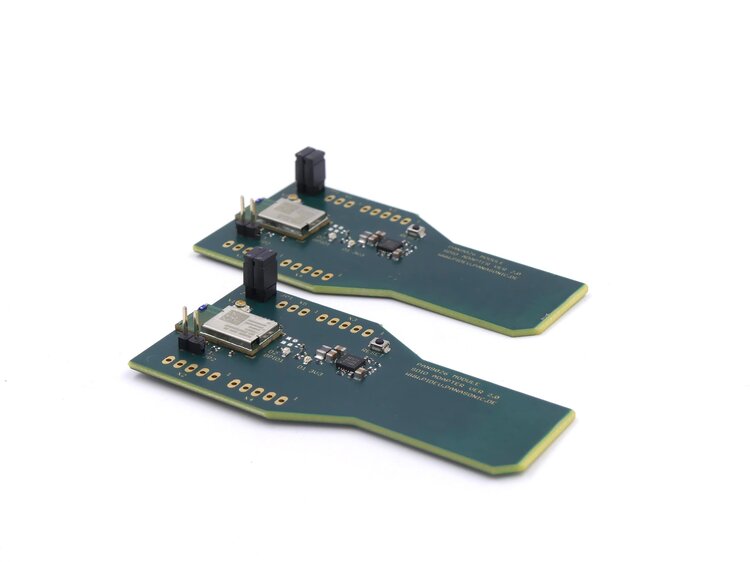

| ENWF9201AYEF | 2x SDIO Adapter with PAN9026 - US | |

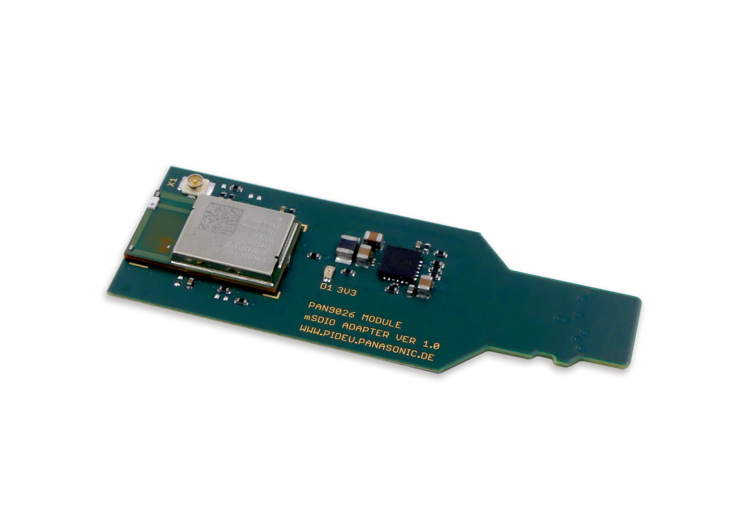

| ENWF9201AWEF | 1x MicroSD Adapter with PAN9026-US | |
| ENWF9201AVEF | 1x MicroSD Adapter with access to HS-UART pins with PAN9026-US | |

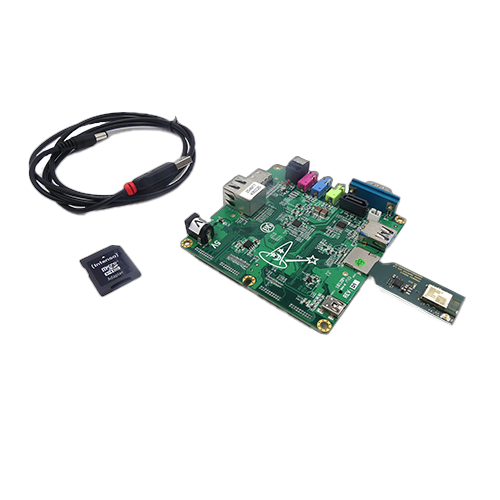

| ENWF9201AXEF - EOL | 1× PAN9026 MicroSD Adapter 1× Wandboard WBIMX6U 1× MicroSD card (with pre-flashed Ubuntu image) 1× Adapter cable USB-A to DC 5.5/2.5 mm plug |
